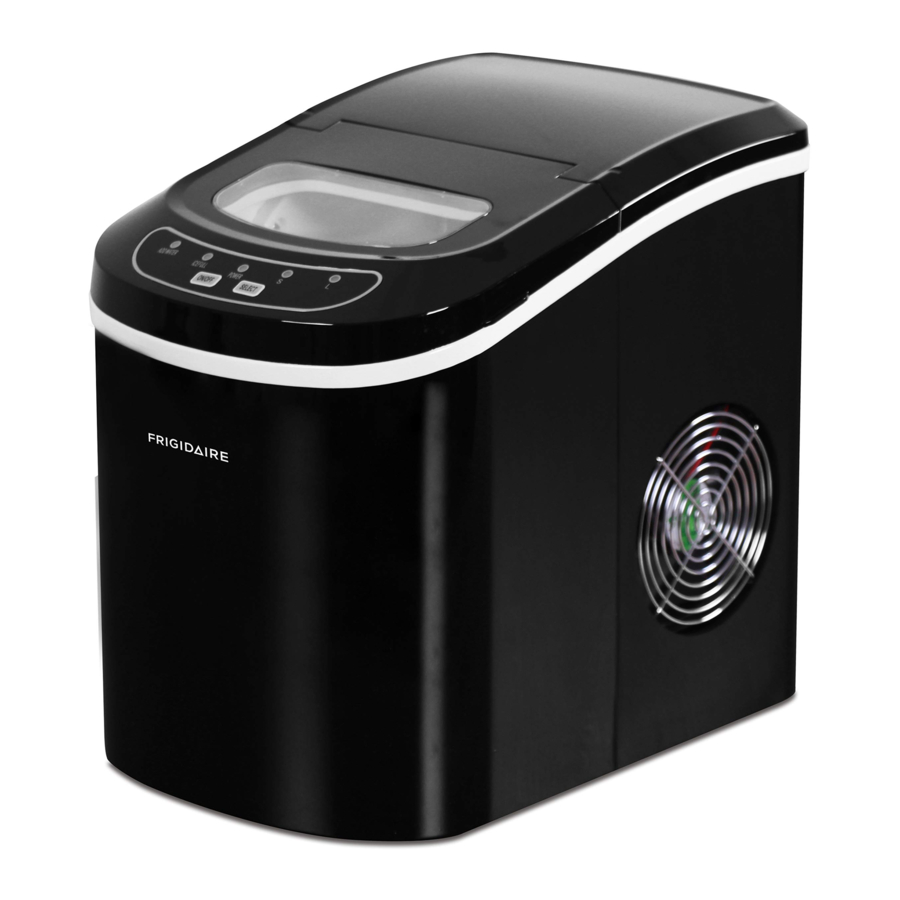

Frigidaire EFIC101, EF1C102, EFIC105, EFIC102ST Manual

INTRODUCTION

We see your purchase as the beginning of a long relationship together.
This manual is your resource for the use and care of your product. Please read it before using your appliance. Keep it handy for quick reference. If something doesn't seem right, the troubleshooting section will help you with common issues.
FAQs, helpful tips and videos, cleaning products, and kitchen and home accessories are available at www.frigidaire.com.
When you unpack your ice maker, you may find a small amount of water inside. Your unit is brand new.
Any water you may find is from the standard quality control testing that all of our ice makers undergo as part of the manufacturing process.
Please follow the initial preparation and cleaning instructions as detailed in the user Guide prior to using your new icemaker.

Installation Checklist
Doors

• Door seals completely to cabinet on all sides

Leveling

• Cabinet is setting solid on all corners

Electrical Power

• House power turned on

Ice Maker

• House water supply connected to ice maker
• No water leaks present at all connections - recheck in 24 hours
• Ice maker is turned ON
• Ice & water dispenser operates correctly

Final Checks

• Shipping material removed

DESCRIPTION OF PARTS

BEFORE FIRST USE

This portable ice maker uses a fully automatic control system, with an advanced microcomputer for easy and convenient ice making. Making ice is simple and fast. Just add water, plug into an outlet, and press the ON button. You can select one of the two ice cube sizes with the touch of a button. When first turning on the unit or during icemaking cycles, the compressor will stay idle for 3 minutes, while energizing.
There are warning indicators that alert you to fill water when the reservoir is empty and to remove ice when the storage basket is full. The ice maker also has built-in safeguards that can limit accidental damage, automatically shutting down the system when necessary.
Please read carefully.

1. The incline angle of the ice maker cabinet should not exceed 45⁰ C during transportation or use. Do not turn the ice maker upside down. Doing so could cause the compressor or refrigerating system to operate incorrectly. When the ice maker is moved or transported, please allow time for the fluids in the compressor to settle. Before using the ice maker for the first time, please wait 2 hours after the unit has been leveled and positioned in its proper place.
2. Please ensure the ice maker is level and on a stable table or platform to avoid malfunction.
3. The machine must be placed on a dry and level surface with sufficient ventilation, far from heat sources such as ovens, heaters and corrosive gases. Leave an 8-inch clearance on all sides of the ice maker for proper ventilation.
4. Do not fill the water reservoir with hot water. This may damage the ice maker. It is best to fill the water reservoir with water of room temperature or lower.

USING YOUR ICE MAKER

1. Ensure that the Drain Plug underneath the front of the unit is closed and the Water Tube Screen is in place.
2. Plug the Ice Maker into the wall outlet and the green power indicator light will blink (approximately every 5 seconds).
3. Open the Cover and remove the Ice Basket.
4. Fill the Water Reservoir.
   NOTE: Do not fill above the MAX water level mark at the back of the Water Reservoir.
5. Replace the Ice Basket and close the Cover.
6. Press the Power Button and the green indicator light will remain on. To change between either the small or large ice size, press the Select Button until the light is lit up beside the desired ice size.
7. The first ice making cycle will last approximately 8 - 13 minutes depending on the ice size that is selected. The ice making cycle starts with water being pumped into the Water Tray situated below the Evaporator Fingers. Over the next 8 - 13 minutes ice forms on the Evaporator Fingers. Once this has completed, the Ice Tray will tilt backwards and the remaining water in the Ice Tray is drained back into the Water Reservoir. The Ice cubes are then dropped from the Evaporator Fingers and pushed forward into the Ice Basket by the Ice Shovel. The Ice Tray will automatically move back into position under the Evaporator Fingers and start the next cycle.
8. The 'Ice Full' LED light will light up when the ice basket is full and the Ice Maker will stop the ice making cycle automatically. Gently remove the ice from the Ice Basket with the Ice Scoop. Once the Ice Basket has been emptied and the Cover closed, the Ice Maker will restart its ice making function automatically.

   Wait 3 minutes then press the Power Button to restart the ice making function.
9. The 'Add Water' LED light will light up when there is no more water in the Water Reservoir and the ice making cycle will stop automatically. Press the Power Button once (the Power Button will flash every 5 seconds). Remove the Ice Basket and add water to the Water Reservoir.
   NOTE: Do not fill above the MAX water level mark at the back of the Water Reservoir. Replace the Ice Basket and close the Cover.

   Wait 3 minutes then press the Power Button to restart the ice making function.
10. When you have finished making ice, transfer the ice to a freezer.
    NOTE: The ice will last in the Ice Maker for up to a 18 hour period, depending on the ambiant temperature. Stop the ice making cycle by pressing the Power Button. Unplug the unit from the wall outlet. Open the Cover and allow the Ice Maker to reach room temperature and follow the directions in the Care and Cleaning section.

CARE AND CLEANING

1. Stop the Ice Making Cycle by pressing the Power Button and the green LED light will go out. Unplug the Ice Maker from the wall outlet. Allow the unit to warm up to room temperature.
2. If the Water Tray is not in the vertical position behind the Evaporator Fingers, gently push the Water Tray back so that all water drains into the Water Reservoir.
3. Open the Drain Plug to drain out excess water.
4. Remove the Ice Basket.
5. Remove the Water Tube Screen and rinse under running water.
6. Clean the Ice Maker interior with a soft cloth dampened in warm water and vinegar. Rinse with a clean damp cloth.
7. Replace the Drain Plug and the Water Tube Screen. Wash-the Ice Basket and Ice Scoop in warm soapy water. Rinse and dry.
8. Clean the exterior of the Ice Maker with a soft damp cloth. Use a mild dishwashing soap, if necessary.
9. IMPORTANT NOTE: Do not clean the Evaporator Fingers.

TROUBLESHOOTING GUIDE

PRODUCT SPECIFICATIONS

Input Voltage: 115V 60Hz
Power Consumption: 90-120 W
Daily Ice Output: 12 KGS/24H
Ice-Making Amount Per Time: 9 PCS
Refrigerant: R600a
Dimensions

• Product Depth (IN.) 14.1
• Product Height (IN.) 12.9
• Product Width (IN.) 9.5

IMPORTANT SAFETY INFORMATION

Please read all instructions before using this appliance.

Safety Definitions
This is the safety alert symbol, It is used to alert of potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER Indicates an imminently hazardous situation which, If not avoided, will result in death or serious inJury.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious iryury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT indicates installation, operation or maintenance information which is important but not hazard-related.

Child Safety
Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the Ice Maker is unpacked Children should NEVER use these items to play. Cartons covered with rugs, bedspreads, DO NOT store or use gasoline, or other flammable liquids in the vicinity of this or any other appliance, Read product labels for warnings regarding flammability and other hazards.
Avoid contact with any moving parts of automatic ice maker,
Remove all staples from the carton.
Staples can cause severe cuts, and also destroy finishes if they come in contact with other appliances or furniture, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suffocation.

SAFETY INSTRUCTIONS

This appliance must be plugged into at least a 15 AMP 110-115 VOLT 60 Hz GROUNDED OUTLET. This appliance must be grounded, It is equipped with a 3-wire cord having a grounding plug. The plug must be plugged Into an outlet that is properly installed and grounded

Improper use of grounded wire can result in the risk of electric shock. Consult a physician if necessary. Do not attempt to defeat this safety feature by modifying the plug.
Avoid the use of an extension cord because it may overheat and cause a risk of fire, However if it is necessary to use an extension cord

1. Use only 3-wire extension cords with 3-blade grounding plug
2. The marked rating of an extension cord must be be equal to or greater than the rating of this appliance.
3. It should be positioned such that it does not drape over the counter or tabletop where it can be pulled on by children intentionally.

Attempting any maintenance or cleaning:
To minimize the possibility of electric shock, unplug this appliance from the power suply or disconnect at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning.
NOTE: Pressing the Power ON/OFF button to an off position does not disconnect the appliance from the power supply.
