1. Product Overview
IFS-2600 Termination Board (TB) is the main termination board, where connections from all other devices in the
panel and the field are terminated. The Power Supply Interface board (PSI) is mounted directly on top of the spacers
provided in the Termination Board which is available as a separate kit (#ASY-02-021). Both these boards are
mounted on a metal work chassis, which in turn is assembled in the IFS-2600 base panel. A power supply unit (PSU)
is mounted to the chassis, which powers the panel.
Studs to secure
Termination
Board
IFS-2600 Chassis
(#MW-02-012)
This is the IFS-2600 CHS chassis (#MW-02-012) onto which Termination board (#PCA-01-048) will be
assembled.
2. Installation
WARNING: Installation should be performed by competent persons in accordance with the
relevant standards as required for the installation. Honeywell Ltd accepts absolutely no liability
for the suitability, settings or connections done within an installation.
1. Attach the male end of four M3x20 M/F tapped spacers (#11164) to the four slots provided on termination
board and secure it using four M3 flanged nuts (#10313) as shown in Figure 2.
ECN11-0061
Notifier IFS-2600 Termination Board (TB)

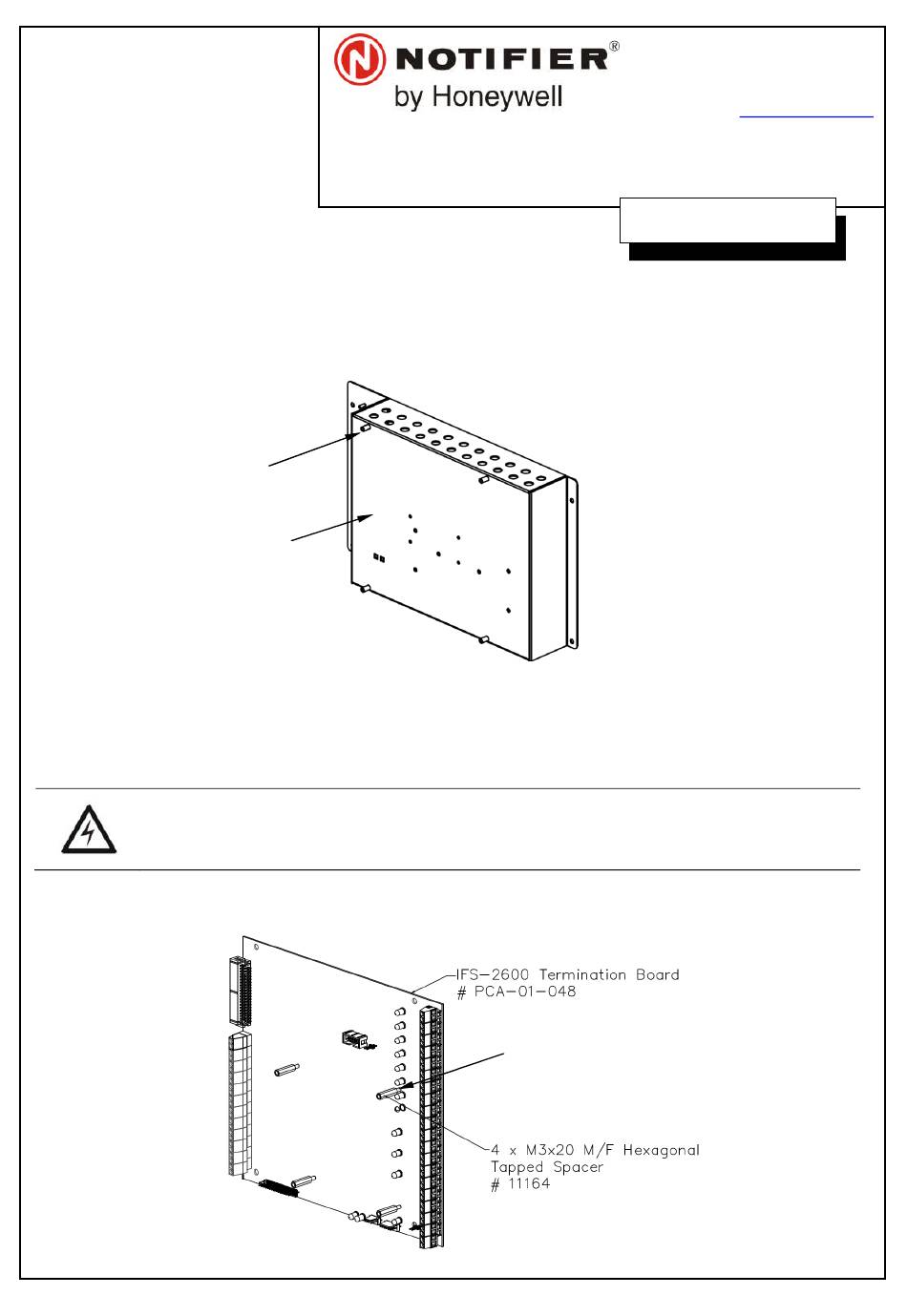

Figure 1, IFS-2600 Chassis
Figure 2, IFS-2600 Termination Board (NI-2025-01 PCB)
Product Installation Document
M3 Flanged Nuts (#10313)
to Male end of
Spacer (#11164)
9 Columbia Way
Baulkham Hills, NSW 2153
PH 02-9894-1444 • FAX 02-9894-4193
www.notifier.com.au
1.02
21/09/2011
Rev:
DOC-03-037
ECN11-0061
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Notifier IFS-2600
Summary of Contents for Notifier IFS-2600
-
Page 1: Product Overview
Termination Board which is available as a separate kit (#ASY-02-021). Both these boards are mounted on a metal work chassis, which in turn is assembled in the IFS-2600 base panel. A power supply unit (PSU) is mounted to the chassis, which powers the panel. - Page 2 Figure 4, PSI Board attached to Termination Board 4. If the IFS-2600 Top Hat Assembly was removed from the panel, re-attach it to the top location of IFS-2600 Base panel and secure it using four M4 flanged nuts (GEN-01-008) as shown in figure 5.
- Page 3 Figure 6, Termination Board, PSI & PSU Connection Diagram 3. Components The IFS-2600 TB kit assembly contains the following components, as outlined in Table 1. Part No. Description 2316 M3 x 8 Philips Head Sems Screws 10313 M3 Flanged Nuts...
