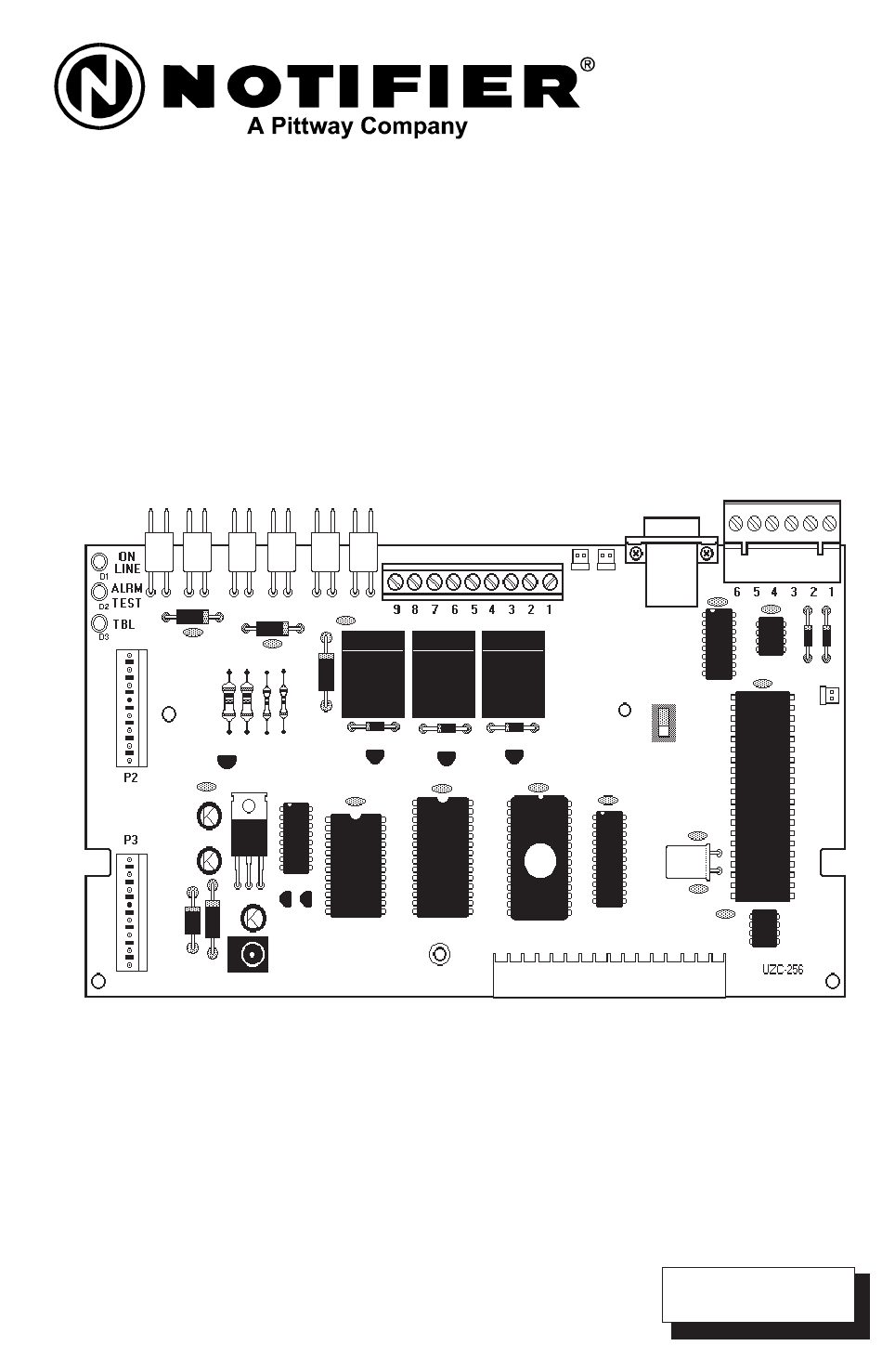

Universal zone coder for the notifier fire alarm control panels
Hide thumbs Also See for UZC-256:

Advertisement

THE
U
NIVERSAL
for the Notifier Fire Alarm Control Panels
UZC-256
Z
ONE
12 Clintonville Road
Northford, CT 06472
Phone: 203-484-7161
Fax: 203-484-7118
C
ODER
Document 15216
07/18/97 Rev:
P/N 15216:C1
C1
ECN 97-294

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UZC-256 and is the answer not in the manual?

Questions and answers

Summary of Contents for Notifier UZC-256

  • Page 1 12 Clintonville Road Northford, CT 06472 Phone: 203-484-7161 Fax: 203-484-7118 UZC-256 NIVERSAL ODER for the Notifier Fire Alarm Control Panels Document 15216 07/18/97 Rev: P/N 15216:C1 ECN 97-294...
  • Page 2 15216:C1 07/18/97...
  • Page 3: Table Of Contents

    Figure 3-1: Mounting the UZC-256 to a CHS-4......7 System 500 Installation..............8 Figure 3-2: Mounting the UZC-256 in the CAB-500 ....8 AM2020/AFP1010 Installation............ 9 Figure 3-3: Mounting the UZC-256 in an ICA-4L Chassis ..9 Section Four: Power/NAC Configurations ............10 Section Five: AM2020-AFP-1010/UZC-256 Configuration ......
  • Page 4: Section One

    The Notifier UZC-256 Universal Zone Coder provides separate codes for up to 256 initiating zones. Each code requires a different initiating circuit. Only one notification appliance circuit is required, but coded output from the UZC-256 can be fed to many output circuits.
  • Page 5 System 500 or System 5000. Additional Reference The UZC-256 Zone Coder can be used with the System 500, System 5000, and AM2020/ AFP1010 Fire Alarm Control Panels. For more information on these systems, refer to the following documents: The System 500 Installation &...
  • Page 6: Section Two

    AM2020/AFP1010. connection to main power supply. 9V POWER CONNECTOR for powering * use a power limited power supply the UZC-256 during remote programming. Power Connections for Notification Appliance Circuits (+) (+) OUT IN CKT 3 CKT 2 CKT 1 OUT IN REF.
  • Page 7: Section Three: Installing The Uzc-256

    UZC-256 fastens to the base of the CHS-4 chassis using the four hex standoffs (provided), which are screwed onto four PEM studs. The UZC-256 is then attached to three of the four standoffs using the mounting screws provided (see Figure 3 - 1).
  • Page 8: System 500 Installation

    System 500 Installation Mechanical Installation In a System 500 , the UZC-256 mounts beneath the third (right most) module. The UZC-256 fastens to the back of the box using three hex standoffs (one aluminum and two nylon provided), which are screwed into the three female PEM nuts as shown. The UZC-256 is then attached to two of the four standoffs using captive screws on the board (see Figure 3 - 2).
  • Page 9: Am2020/Afp1010 Installation

    AM2020/AFP1010 is in an A-size cabinet (only one ICA-4L), the UZC-256 mounts beneath the CPU or the SIB. If a second or third ICA-4L chassis is available, the UZC-256 should be mounted in one of the two upper slots to permit easy access to UZC-256 wiring and switch settings.
  • Page 10: Section Four

    3.0 amps of coded power. These two Notification Appliance Circuits share 3.0 amps of coded power. These four Notification Appliance Circuits share 3.0 amps of coded power. NOTE: Cable from MPS to UZC-256: P/N 71093; all others: P/N 71091. 15216:C1 07/18/97...
  • Page 11 These twoNotification Appliance Circuits share 3.0 amps of coded power. These eight Notification Appliance Circuits share 3.0 amps of coded power. These two Notification Appliance Circuits share 3.0 amps of coded power. These four Notification Appliance Circuits share 3.0 amps of coded power. These four Notification Appliance Circuits share 3.0 amps of coded power.
  • Page 12: Section Five

    Section Five: AM2020-AFP-1010/UZC-256 Configuration 15216:C1 07/18/97...
  • Page 13: Section Six

    Section Six: UZC-256 Connections to CMX Modules UL listed Power UL listed Power Supervision Relay Supervision Relay System Sensor A2143-00 (Canada: N-ELR) End-of-Line Resistor, 47K, .5 watts, supervised and power-limited 24VDC Notification Appliance (See Device Compatibility Document 15378 for compatible devices)
  • Page 14: Plug/Terminal Schematic

    Appendix A: Plug/Terminal Schematic Coded Outputs Code Relay 2 Code Relay 3 Code Relay 1 15216:C1 07/18/97...
  • Page 15 15216:C1 07/18/97...
  • Page 16 This warranty is void ® if the product is altered, repaired or serviced by anyone other than NOTIFIER its authorized distributors or if there is a failure to maintain the products and systems in which they operate in a proper and workable manner.
