Summary of Contents for ESX VN710 MB-A1

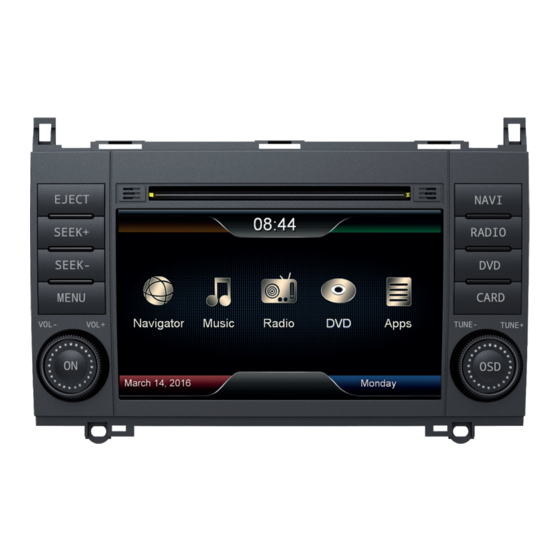

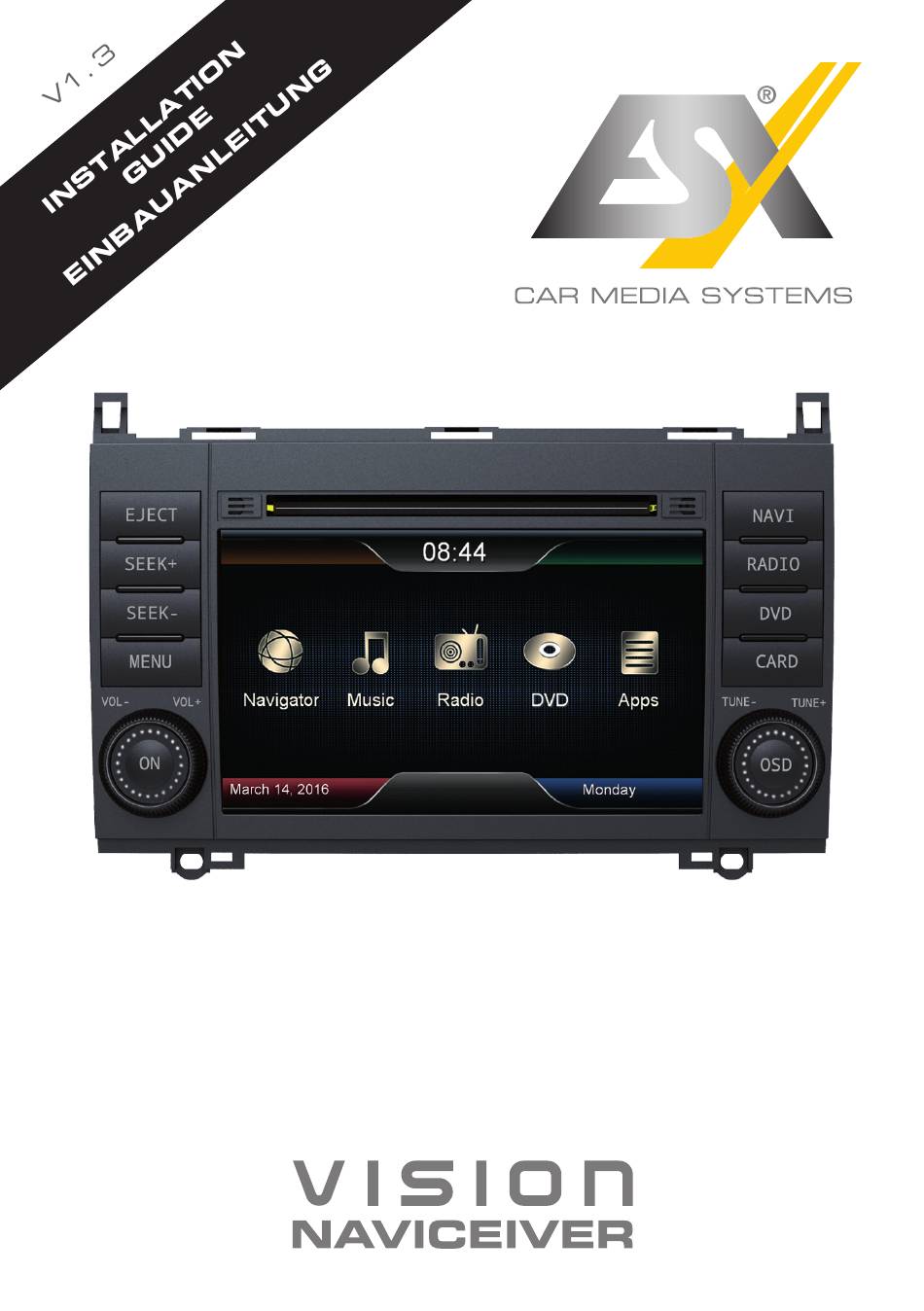

  • Page 1 VN710 MB-A1...
  • Page 2 INSTALLATION NOTES / Installationshinweise Important Notes prior to installation: This guide is an installation aid for a proper installation of the device. Please read the following instructions prior installation: 1.) Please treat all parts of the sound system and the components of your vehicle with caution. 2.) Follow under all circumstance the regulations of the vehicle manufacturer and do not make any modifications on the vehicle, which could interfere the driving safety.

  • Page 3: Table Of Contents

    INDEX / Inhaltsverzeichnis Scope of delivery ..........................4 Lieferumfang ............................4 Connection Diagram ........................... 6 Anschlussdiagramm ..........................6 Installation notes ..........................7 Installationshinweise ..........................7 MERCEDES-BENZ VITO (2007 >) Installation example ........................... 9 Einbaubeispiel ............................9 MERCEDES-BENZ A-CLASS (W169 10/2004 - 4/2012) Installation example .........................

  • Page 4: Scope Of Delivery

    SCOPE OF DELIVERY / Lieferumfang ITEM FIGURE SLOT QUANTITY Artikel Abbildung Steckplatz Anzahl MAIN DEVICE – Hauptgerät STYLUS – Markierstift MICRO SD CARD 8GB INKL: NAVIGATION SOFTWARE – MicroSD Speicherkarte 8GB Navigationssoftware REMOTE CONTROL – Fernbedienung VIDEO INPUT CABLE SET Video-Eingang Kabelsatz REAR CAM INPUT Rückfahrkamera-Eingang...
  • Page 5 SCOPE OF DELIVERY / Lieferumfang ITEM FIGURE SLOT QUANTITY Artikel Abbildung Steckplatz Anzahl AUDIO OUT (SUBWOOFER/CENTER) Audio-Ausgang (Subwoofer/Center) USB CABLE SET WITH 2 CONNECTORS USB Kabelsatz mit 2 Anschlüssen IPOD / IPHONE CONNECTOR iPod / iPhone Anschluss BT-MICROPHONE BT-Mikrofon GPS ANTENNA GPS Antenne HANDBRAKE CONNECTION Handbremsen-Anschluss...

  • Page 6: Connection Diagram

    CONNECTION DIAGRAM / Anschlussdiagramm BT-MICROPHONE BT-Mikrofon AUDIO OUT (FRONT / REAR) Audio-Ausgang (Front / Rear) AUDIO OUT (SUBWOOFER/CENTER) WITH REMOTE TURN ON Audio-Ausgang (Subwoofer/Center) mit Einschaltleitung „Remote“ VIDEO INPUT CABLE SET Video-Eingang Kabelsatz FRONT CAM INPUT (optional) SPECIFIC CONNECTOR Frontkamera-Eingang (optional) OF THE VEHICLE Fahrzeugspezifischer Stecker...

  • Page 7: Installation Notes

    Vermeiden Sie das Verlegen des Kabels über die Lenksäule. In der Regel sollte das Kabel lang genug sein, um die A-Säule (Fahrerseite) über die Beifahrerseite zu erreichen. Ein evtl. werksseitig vorhandenes Mik- rofon ist nicht kompatibel mit dem ESX Gerät. Bitte verwenden Sie das mit- gelieferte Mikrofon.

  • Page 8: Installationshinweise

    Depending on the type of vehicle the CAN-BUS sends the information of the handbrake signal to the ESX device. If this is not the case, the included cable handbrake connection (14) needs to be connected. The signal must be con- nected with ground while the handbrake is applied.

  • Page 9: Mercedes-Benz Vito (2007 >)

    Lay the connection cable sets of new ESX device (refer to page 4-5) inside the vehicle to the desired location and connect these according with the sockets on the new ESX device. Plug in car specific and the antenna connectors.

  • Page 10: Mercedes-Benz A-Class (W169 10/2004 - 4/2012)

    INSTALLATION EXAMPLE / Einbaubeispiel MERCEDES-BENZ A-CLASS (W169 10/2004 - 4/2012) 1.) Disengage carefully the ventilation unit above the radio on both sides. You find the brackets in the first upper slot on each side. Use a suitable blade screwdriver to unlock the brackets. 1.) Entrasten Sie vorsichtig die Lüftereinheit über dem Radio auf beiden Seiten.
  • Page 11 INSTALLATION EXAMPLE / Einbaubeispiel MERCEDES-BENZ A-CLASS (W169 10/2004 - 4/2012) 5.) Now carefully remove the lower radio panel. 5.) Entfernen Sie jetzt vorsichtig die untere Radio-Blende. 6.) Unscrew both lower fixing screws of the radio with the Torx T25 screwdriver on each side.
  • Page 12 INSTALLATION EXAMPLE / Einbaubeispiel MERCEDES-BENZ A-CLASS (W169 10/2004 - 4/2012) 9.) Lay the connection cable sets of new ESX device (refer to page 4-5) inside the vehicle to the desired location. 9.) Verlegen Sie nun die Anschlusskabel des neuen ESX Geräts (siehe S. 4-5) im Fahrzeug zum gewünschten Einbauort.
  • Page 13 NOTES / Notizen...
  • Page 14 NOTES / Notizen...
  • Page 15 NOTES / Notizen...
  • Page 16 ESX Car Media Systems · Audio Design GmbH Am Breilingsweg 3 · D-76709 Kronau/Germany Tel. +49 7253 - 9465-0 · Fax +49 7253 - 946510 www.esxnavi.de - www.audiodesign.de ©2017 All Rights Reserved...
