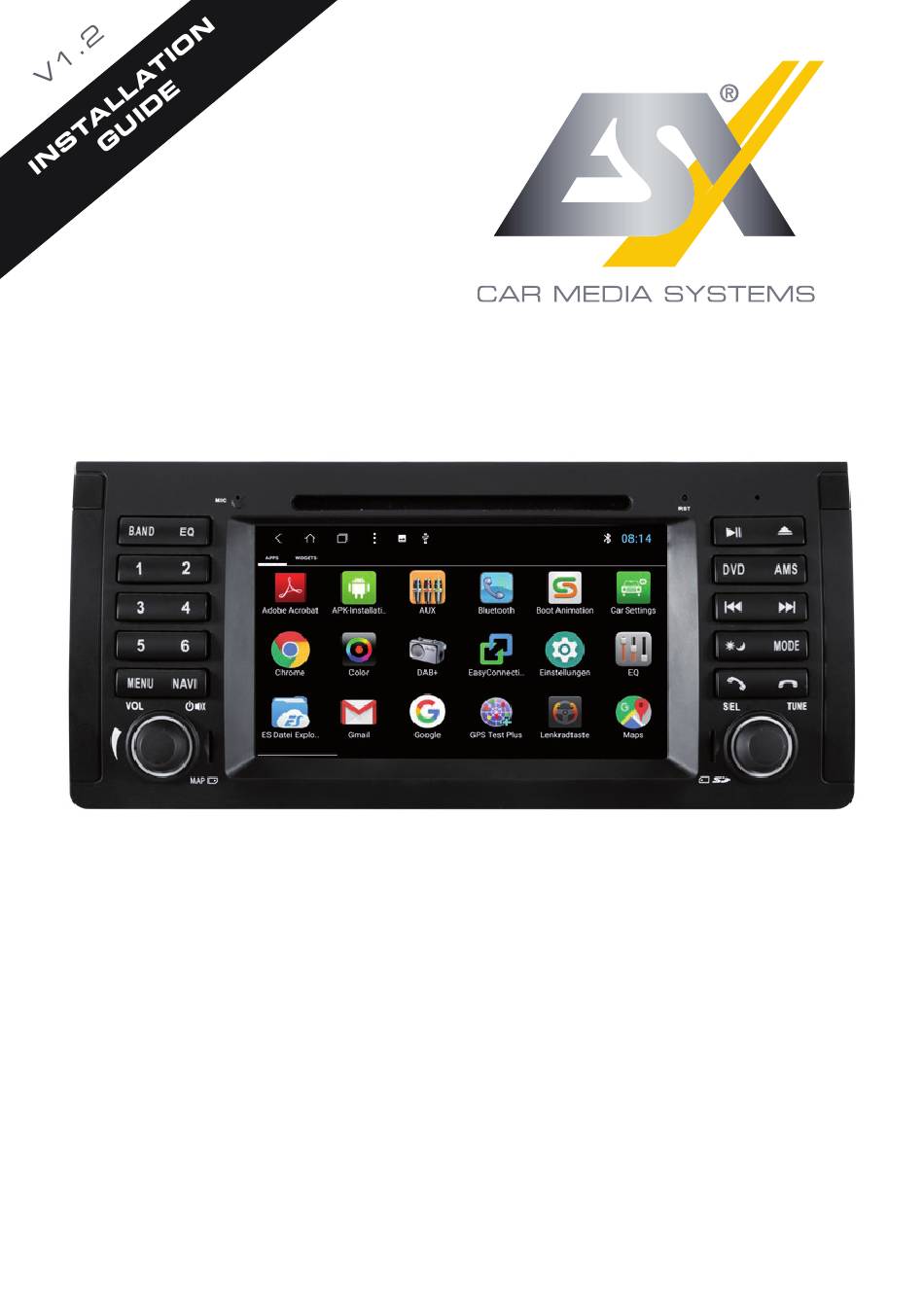

- Page 1 VN715-E39-DAB INFOTAINMENT TOUCHSCREEN NAVICEIVER VISION SERIES FOR ANDROID ™...
-
Page 2: Important Notes
IMPORTANT NOTES This guide is an aid for the professional installation of the device. Please note the following notes before installation: • Always handle all parts of the device and the components of your vehicle with care. • Under all circumstances observe the regulations of the vehicle manufacturer and do not make any changes to the vehicle which could impair driving safety. -
Page 3: Recommended Tools
RECOMMENDED TOOLS Phillips screwdriver Flat slotted screwdriver Cable ties TRANSPORT LOCK Unscrew the two screws securing the transport lock of the CD/DVD drive. -
Page 4: Scope Of Delivery
SCOPE OF DELIVERY ITEM FIGURE QUANTITY Main device Mounting brackets System connector with CAN-Bus decoder 40-pin System connector standard 17-pin USB adapter cable with 2 USB ports Antenna adapter Fakra on ISO AV connector with all audio and video connections and additional USB port GPS antenna DAB antenna with USB adapter... -
Page 5: Reset Button
MICRO SD SLOT FOR NAVIGATION SOFTWARE Here you can insert the MicroSD card of the navigation software. For the device to have access, you may need to assign the access path in the Apps menu under “Settings”. RESET BUTTON If the device stops responding to input, the system is overloaded or crashed. Then reboot the system by pressing the reset button (RST) on the front panel. -
Page 6: Wiring Diagram
WIRING DIAGRAM WiFi antenna GPS antenna AV connector System connector with device fuse Connection for USB adapter cable External microphone (Optional) Radio antenna System connector with device fuse AV connector 19 18 17 16 14 13 12 11 9 10 15 A 1 BATTERY (+12V) 11 LIGHT CONTROL... -
Page 7: Installation
INSTALLATION Original radio. Remove the button on the left side. Inside the button is a small screw at the top, Pull out the original radio. which has to be loosened. Use the flat-head screwdriver to pry off the Remove all remaining cable connections on radio adapter. - Page 8 INSTALLATION Loosen the marked screws. Remove the radio bracket. Loosen all 4 screws of the radio bracket. Pull out the lower part of the dashboard to remove the radio bracket. Remove the airbag covers on the passenger Remove the screw underneath. side A-pillar.
- Page 9 INSTALLATION Open A-pillar with airbag. Remove the screws of the sun visor holder. Open the passenger door and remove the Pull the door seal of the A-pillar to the lower lower dashboard screw. last screw. Hide the GPS antenna behind the headliner Route the cable of the GPS antenna along the where the sun visor holder was previously.
- Page 10 INSTALLATION Now squeeze the door seal again and make Reinstall the screws of the dashboard. sure that it is tight. Reinstall the A-pillar trim and gently pry the Now fasten the screw of the A-pillar. seal over it. Attach the airbag cover. Attach the sun visor holder.
- Page 11 INSTALLATION Attach all the panels again. You will need the included mounting brackets to install the new device. Mount the mounting brackets on both sides Plug in the supplied adapter plug into the of the radio slot. radio wiring harness of the car. Plug the CAN-BUS decoder into the adapter Connect the GPS antenna and all the other plug.
- Page 12 ESX Car Media Systems · Audio Design GmbH Am Breilingsweg 3 · D-76709 Kronau/Germany Tel. +49 7253 - 9465-0 · Fax +49 7253 - 946510 www.esxnavi.de - www.audiodesign.de ©2019 All Rights Reserved / Alle Rechte vorbehalten Nachdruck und Reproduktion, auch auszugsweise, ist verboten.
