4 Install the 82351A. Insert the 82351A interface card edge
connector into the PCIe expansion slot connector of the
PC. Make sure the interface is fully seated by pushing
firmly on the top edge of the card with the palm of your
hand. The GPIB connector should extend through the back
panel opening to allow GPIB cable connection.
If you install more than one 82351A, you may want to
install the cards so there is at least one empty slot
between every two 82351As. When inserting the 82351A,
be sure to hold the card by its edges. Also, be careful
with the metal faceplate around the GPIB connector as
the faceplate can be bent.

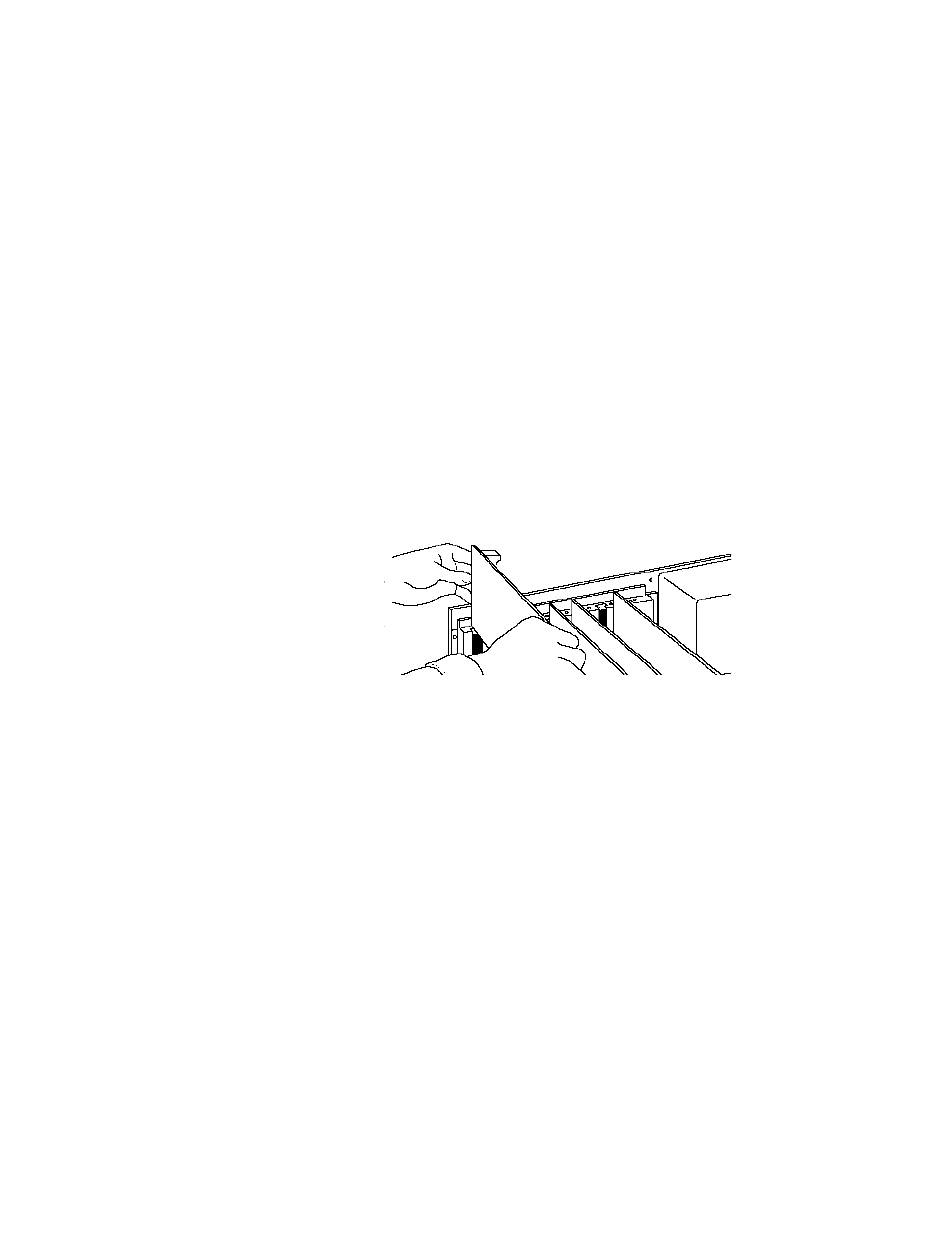

Figure 1-7 Install 82351A interface card
