1 Installing and Configuring the 82351A
N O T E
8
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Take precautions against static discharge when handling and installing
cards.
2 Remove PC cover. Remove power from the PC and from
all of its peripherals. Then, remove the power cord from
the PC. Unlock and remove the cover from the PC to
allow access to the I/O slots. See your PC documentation
for instructions.

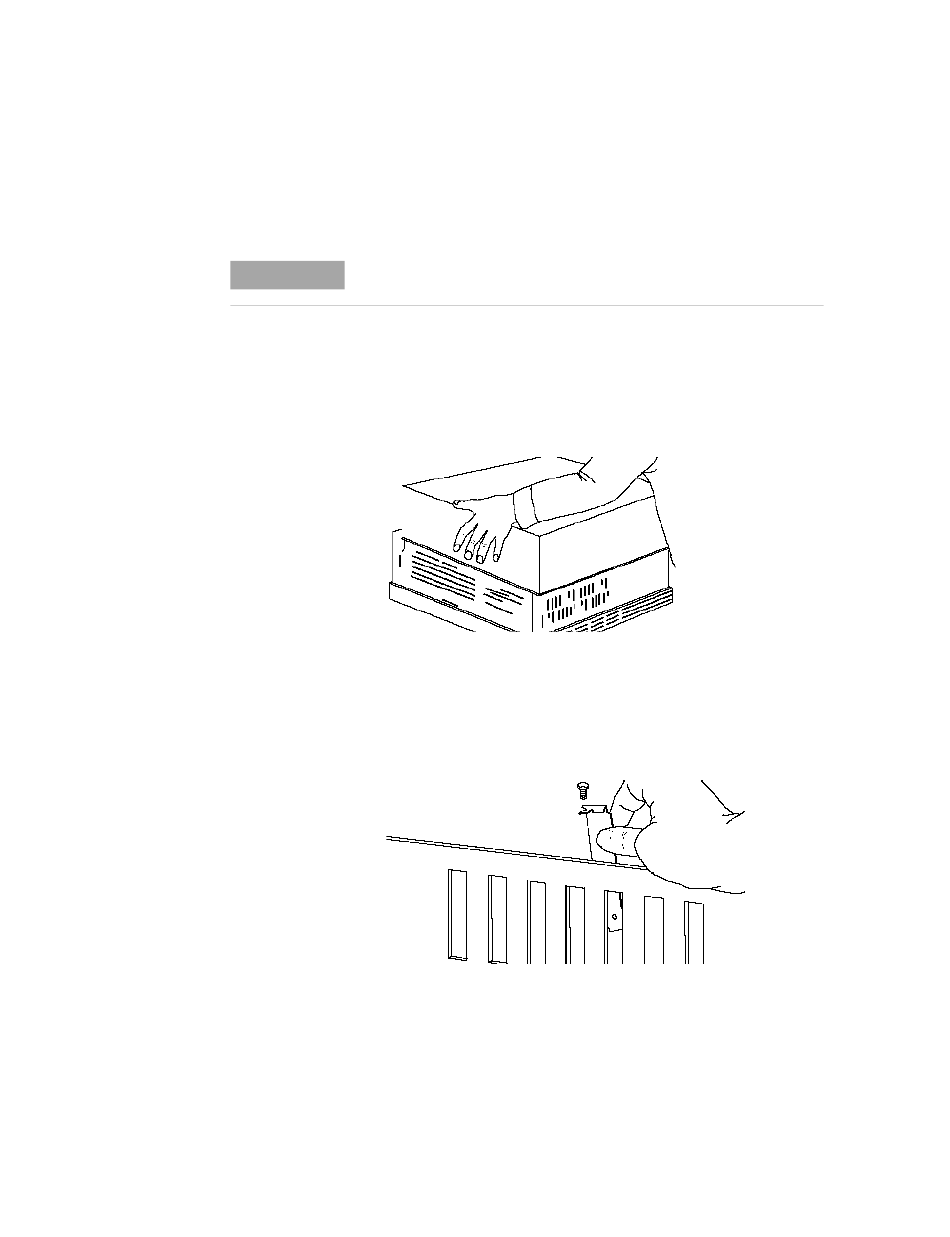

Figure 1-5 Remove PC cover
3 Remove a cover plate. Remove one of the PC back panel
cover plates. The 82351A is a 3.3 V PCIe card and will
only fit in a PCIe 1x, PCIe 4x or PCIe 8x slot. Choose a
3.3 V PCIe slot that will give adequate clearance for the
GPIB connector.
Figure 1-6 Remove cover plate
