Installation, Maintenance & Operation Instructions
DESCRIPTION

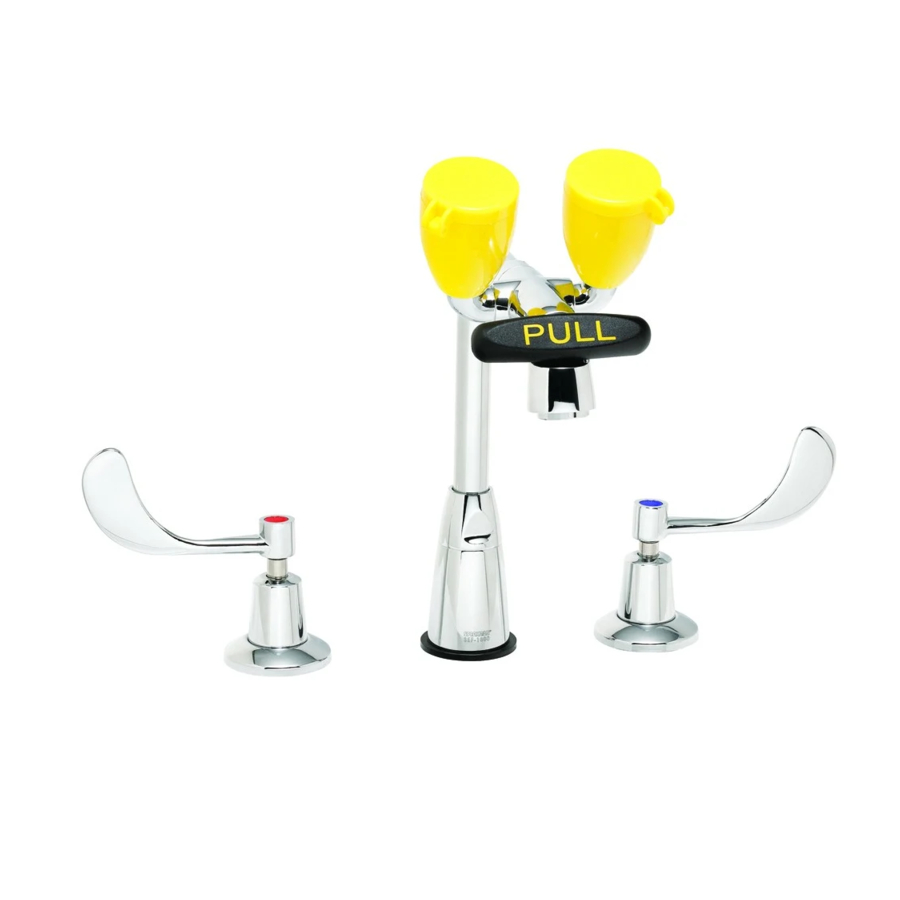

The SEF-1800-CA Eyesaver
eyewash. The faucet features " turn Speakman Ceramic Perfect
aerated sprays and flip-top dust covers.
SPECIFICATIONS
INLET SUPPLY: 3/8" COMPRESSION WITH MALE THREADS.
OPERATION: EYEWASH AND FAUCET OPERATE INDEPENDENTLY OF EACH OTHER.
SUPPLY: "" MALE CONNECTIONS FOR HOT AND COLD INLETS.
WIDESPREAD VALVES: PERFECT® VALVES WITH 1/4 TURN CERAMIC CARTRIDGES COVERED
FINISH: CHROME PLATED BRASS.
FAUCET HANDLES: VANDAL-RESISTANT 4" WRIST HANDLES WITH COLOR-CODED INDEXES.
EYEWASH ACTIVATION: PULL HANDLE WITH GRAPHICS.
EYEWASH SPRAYS: AERATED SPRAYS.
FAUCET FLOW RATE: AUTOFLO® DEVICE CONTROLS FLOW TO 1.5 GPM/ 5.7 LPM.
EYEWASH FLOW RATE: 2.8 GPM AT 30 PSI. FLOWING. SEE FLOW DATA CHART FOR
COUNTER THICKNESS: UP TO 2" THICK.
CENTER DISTANCE: ADJUSTABLE CENTERS OF 6" TO 12".
PRESSURE: 30 PSI. MINIMUM FLOW PRESSURE, 125 PSI. MAXIMUM STATIC PRESSURE.
APPROVALS: MEETS ASME A112.18.1, ANSI Z358.1 AND CSA B125.1.
VACUUM BREAKER (ST OPTION): APPROVED BY ASSE, UPC AND CSA. MEETS THE ANSI/ASSE 1035
SHIPPING WEIGHT: 10 LBS.
400 Anchor Mill Rd. New Castle, DE 19720
SPEAKMAN
SEF-1800-CA, SEF-1800-CA-TW,
SEF-1800-CA-8, SEF-1800-CA-8-TW
EYESAVER® FAUCET
®
faucet combines a gooseneck faucet with independently operated
BY A 25 YEAR WARRANTY.
ADDITIONAL INFORMATION.
STANDARD FOR "LABORATORY FAUCET VACUUM BREAKERS",
CSA B64.8 AND UPC.
SPEAKMAN
09/19/17
speakman.com
®
®
Valves while the eyewash offers twin
®
Phone: 800-537-2107
92-SEF-1800-15
Fax: 800-977-2747
