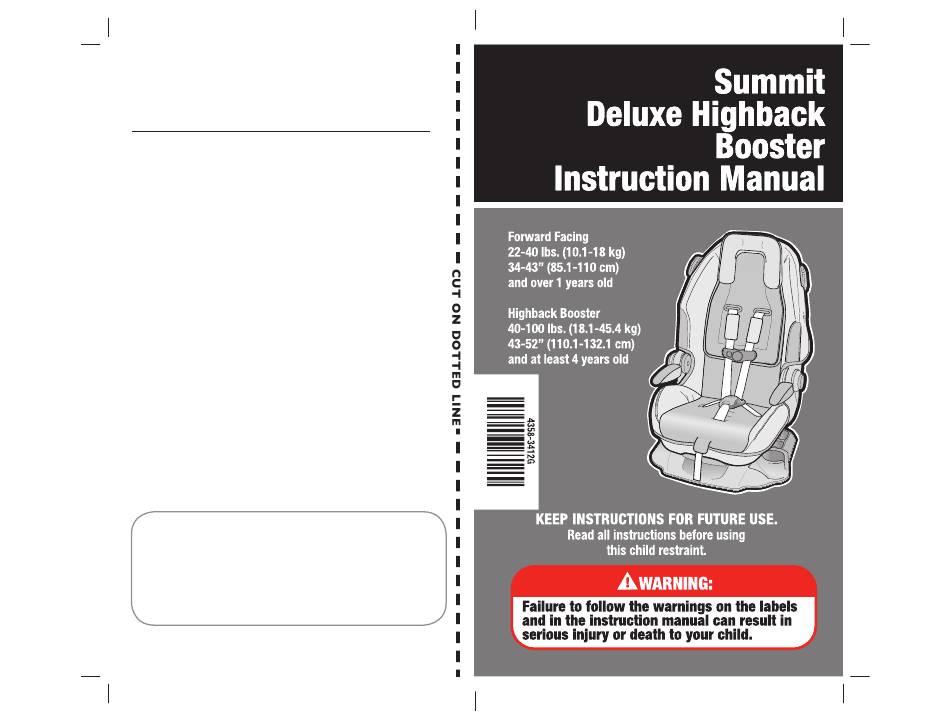

Safety 1st Summit Deluxe Instruction Manual

Forward facing 22-40 lbs. 10.1-18 kg 34-43" 85.1-110 cm and over 1 years old, highback booster 40-100 lbs. 18.1-45.4 kg 43-52" 110.1-132.1 cm and at least 4 years old
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
Replacement Parts List
NOTE:
If requested color is not available, similar color will be
substituted. Prices are subject to change.
Part .....................Cost ................ Qty...................Total Cost
Crotch Strap/
Buckle ................... $4.99 ............... ___ ................... $_______
Harness Strap ....... $2.00 ............... ___ ................... $_______
Seat Pad ................ $39.99 ............. ___ ................... $_______
(Includes headrest, harness covers, and pillow)
Chest Clip .............. $1.50 ............... ___ ................... $_______
Top Anchorage
(Tether) Kit ............ $9.99 ............... ___ ................... $_______
LATCH Kit .............. $24.99 ............. ___ ................... $_______
Instructions ........... $0.00 ............... ___ ................... $_______
Merchandise Total...................... ......................$_______
Shipping and handling:.............. ......................$_______
Up to $25.00 .............$5.95
$150.01 to $200.00 ..$11.95
$25.01 to $50.00 ......$6.95
$200.01 and up .......$13.95
$50.01 to $75.00 ......$8.95
Outside Continental USA $10.00
$75.01 to $100.00 ....$9.95
$100.01 to $150.00 ..$10.95
Sales Tax ..........................................................$_______
(Arizona, California, Georgia, Indiana, Missouri, South Carolina, and Texas
residents add applicable sales tax.)
Grand Total .................................... ..................$_______
No shipping and handling on instructions for quantities under 6. Add $.50 for each
instruction over 6, then add applicable shipping and handling.
Fill Out For Credit Card
q Visa
q Mastercard
Card Exp. Date:______________________________
Cardholder's Name:___________________________
Card Number:________________________________
Signature__________________________________
51

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Summit Deluxe and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Safety 1st Summit Deluxe

Summary of Contents for Safety 1st Summit Deluxe

  • Page 1 Replacement Parts List NOTE: If requested color is not available, similar color will be substituted. Prices are subject to change. Part .....Cost ....Qty....Total Cost Crotch Strap/ Buckle ....$4.99 ....___ ....$_______ Harness Strap ..$2.00 ....___ ....$_______ Seat Pad ....
  • Page 2 A. Before You Begin ........ Pages 3-6 D. General Vehicle Installation ..Pages 19-21 A-1 Thank You... D-1 Understanding Your Vehicle A-2 Registration and Safety Notices D-2 Vehicle Seating Position A-3 Understanding Your Child Restraint D-3 Knowing Your Vehicle Belts D-4 Aircraft Information E.

  • Page 3: Registration And Safety Notices

    A-1 Thank You... A-2 Registration and Safety Notices Thank you for choosing this car seat, referred to throughout Please complete the postage-paid registration card that this manual as a child restraint. The DJG family is committed came with your child restraint, and send it to us. Child to creating a child restraint with the most comfort and restraints could be recalled for safety reasons.
  • Page 4 A-3 Understanding Your Child Restraint Front Back Pillow Buckle Plate Top Anchorage (on select models) (Tether) Strap & Hook Buckle Shoulder Belt Harness Release Lever Splitter Plate Positioning Guide (under flap) Instruction Storage Harness Adjustment Adjustable Headrest LATCH Belt Strap Harness Covers (may be between pad Recline Handle...

  • Page 5: Child Restraint Use

    B-3 Child Restraint Use Never take your child out of the child restraint Failure to follow these warnings can result in the while the vehicle is moving. Never leave child serious injury or death of your child. To help you unattended.

  • Page 6: Preparing Child Restraint

    C-2 Preparing Child Restraint to Fit C-1 Preparing Child Restraint Your Child Your child’s height, weight and age determine how your child MUST make these adjustments with your child restraint should be placed in the vehicle. before you install the child restraint in the vehicle. Make Sure LATCH Belt Packaging Is Out From 22-40 lbs (10.1-18 kg)
  • Page 7 Place Child in Child Reposition buckle location. Restraint Insert the buckle’s metal retainer through the Place the child’s bottom desired slot. Make sure and back flat against buckle is facing forward. the restraint. This will increase comfort and allow the harness straps to be properly tightened.
  • Page 8 Check Harness/Headrest Height Make sure metal With child in the seat, check bar is locked into the location of the harness position. Failure to guide. do this can result Follow the guidelines below in serious injury or to determine the correct death.

  • Page 9: Securing Child In Child Restraint

    C-3 Securing Child in Child Restraint Tighten Harness Pull on harness Position Harness tightening strap to tighten Straps Over the harness snugly. Child’s Shoulders. NOTE: A snug strap should not allow any slack. It lies in a relatively straight line without sagging.

  • Page 10: Removing Child From Child Restraint

    C-4 Removing Child From Child Restraint C-5 Accessories Harness Covers Loosen Harness (on select models) Press on harness release Harness covers help lever while pulling on provide comfort to the harness straps above the neck. To remove the buckle to loosen. covers, unthread the harness from harness bracket (see belt-...

  • Page 11: Reclining Child Restraint

    C-6 Reclining Child Restraint C-7 Removing Harness System Harness system MUST be removed to use this This child restraint has 3 child restraint as a Belt-Positioning Booster. positions: Upright, Semi- reclined, and fully reclined. Remove Harness Forward-Facing - Reclined, Straps from Splitter semi-reclined or upright.

  • Page 12: Installing Harness System

    C-8 Installing Harness System Remove Buckle Fully recline the child Install Buckle restraint. Reach under the seat between base and shell Fit the buckle’s metal and locate buckle’s metal retainer through the slot in retainer under the shell. the seat. Red button must face out.
  • Page 13 Thread Harness Strap Thread the harness down Failure to place harness over the metal bar, through slot on left side between the metal bar and plastic handle, can of plastic shell and up result in serious injury or death. through slot on right side (2). NOTE: Make sure sewn end of the harness strap loop...

  • Page 14: Removing Seat Pad For Cleaning

    C-9 Removing Seat Pad for Cleaning Remove Pad From Shell From the top, pull pad off You must remove the harness system to remove the pad. shell and over headrest. Remove the Elastic At the bottom, unsnap pad Straps off shell at one corner, Release the elastic straps on working pad out from the back and under side of...

  • Page 15: Understanding Your Vehicle

    Replace the Seat Pad D-1 Understanding Your Vehicle Replace seat pad by Your vehicle’s features may be considerably different than reversing order: those pictured here. Consult your vehicle owner’s manual to help identify your vehicle’s specific features and locations. Put pad on headrest and replace harness guides.

  • Page 16: Choosing Latch Or Vehicle Belts

    D-3 Choosing LATCH or Vehicle Belts D-2 Vehicle Seating Position Some seating positions in your vehicle may not be safe for LATCH Anchor Bars The LATCH System this child restraint. Some vehicles do not have a seating LATCH (Lower Anchors and position that can be used safely with this child restraint.

  • Page 17: Knowing Your Vehicle Belts

    D-4 Knowing Your Vehicle Belts If you have an ELR lap and shoulder belt, review the “Vehicle Latch Plate” section to see if you need a locking clip. Review your vehicle’s owner manual for vehicle seat belt use with child restraints. This is your best source for information concerning your vehicle.
  • Page 18 E-1 Preparing to Install Forward-Facing D-6 Installing on Aircraft 22-40 lbs (10.1-18 kg) and 34-43 in. (85.1-110 cm) and This restraint is certified for at least 1 Year Old. aircraft use only when used Forward-Facing using 5-point harness with the internal harness. This child restraint is NOT certified for use in aircraft when used as a...

  • Page 19: With Latch

    E-2 Adjusting Top Anchorage Strap E-3 Preparing to Install (Tether) LATCH Forward-Facing The top anchorage strap (tether) is used for the Routing LATCH Belt forward-facing position only. Insert the LATCH hook Note: We strongly recommend that you use the top through the forward- anchorage strap (tether) in the forward-facing position.

  • Page 20: Installation Tip

    Tighten Top Place Child Restraint in Anchorage Strap the Back Seat Forward-Facing Push firmly on the back of Place child restraint flush the seat and tighten top against the vehicle seat back anchorage strap. forward-facing. Only use the recline position to install the child restraint Check Belt Tightness flush against the back of the...
  • Page 21 E-5 Install Forward-Facing Installation Tip: With Vehicle Belts Loosely attach the tether hook before threading You MUST fasten the the vehicle belt. LATCH belt hooks together Consult vehicle’s behind seat when using owner manual for the vehicle seat belts. specific location. Thread Vehicle Belt Thread the vehicle lap or lap/shoulder belt...
  • Page 22 Tighten Top Anchorage F-1 Preparing Belt-Positioning Strap Booster Push firmly on the back of the seat and tighten top 40-100 lbs (18.1-45.4 kg) and 43-52 in. (110.1-132.1 cm) anchorage strap. and at least 4 Years Old. Belt-positioning booster using only vehicle lap/shoulder belt. NOTE: If you are not using the top anchorage strap...
  • Page 23 Position Headrest F-2 Installing Using the Lap and Adjust the headrest so that Shoulder Belts the middle of the child’s head is below the top of the You DO NOT use a locking clip when using this seat as a belt- headrest.
  • Page 24 Position Shoulder Belt To help position the Use only the vehicle’s lap and shoulder belt shoulder belt, you may need system when restraining the child in this to secure the shoulder belt booster seat. through one of the notches in the shoulder belt- Do Not Use only the lap positioning guide.

  • Page 25: Using A Locking Clip

    Locate Locking Clip Using A Locking Clip Location Grasp both vehicle belts You will rarely need to use a locking clip except for in some together just behind the older vehicles. Built in child restraint locking systems have latch plate and unbuckle. been required in vehicles since 1996, and many vehicles NOTE: If the latch plate...

  • Page 26: Warranty

    Warranty Replacement Parts Order Form Dorel Juvenile Group, Inc. (DJG) warrants this product to the original Complete the form below. Your model number with color code and retail purchaser as follows: manufacturer date code MUST be included on the form to ensure This product is warranted against defective materials or workmanship proper replacement parts.
