Summary of Contents for Safety 1st Summit ISO 30

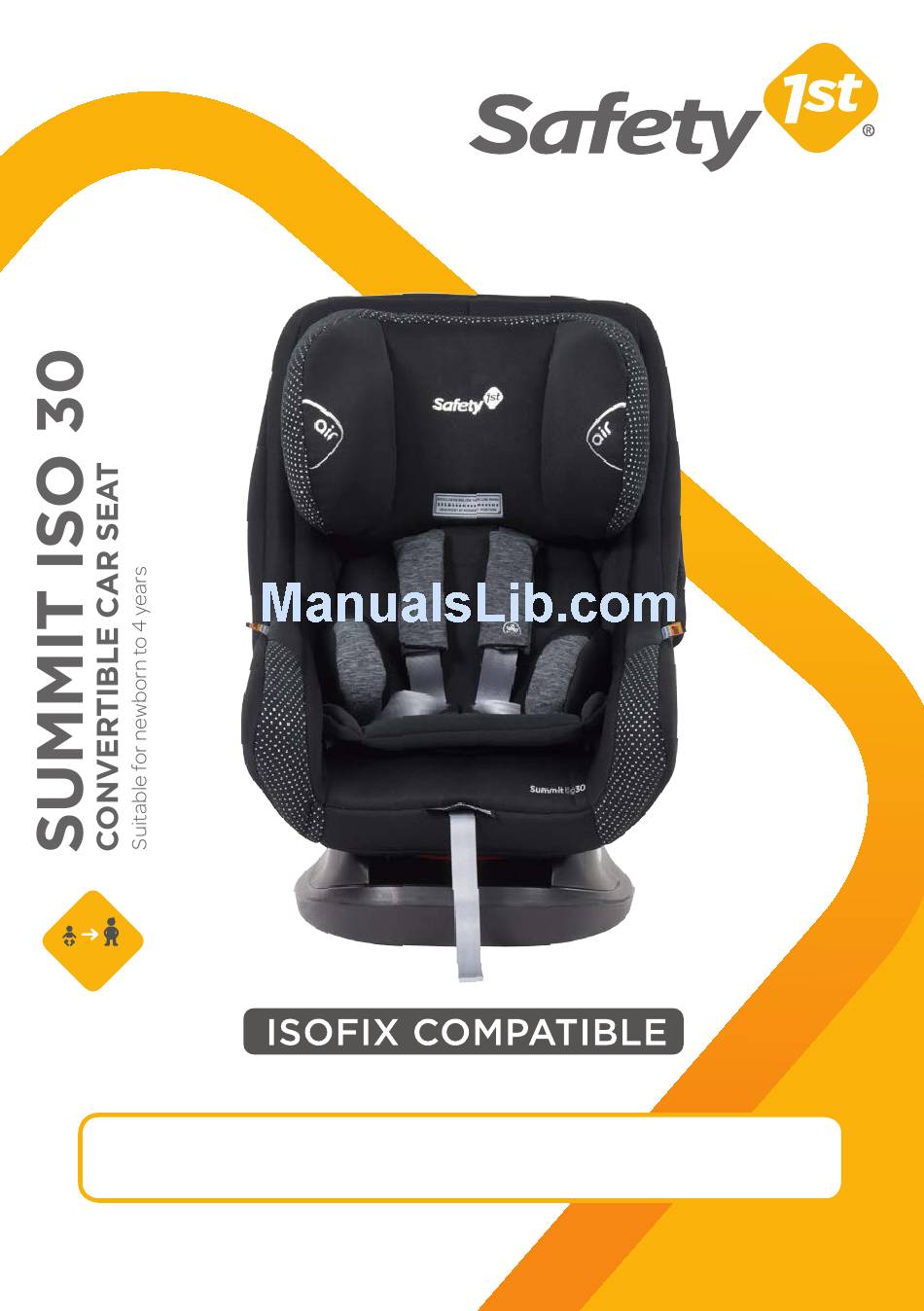

- Page 1 Discover life safely 4yrs IMPORTANT: KEEP THIS BOOKLET IN THE PLACE PROVIDED ON THE CHILD RESTRAINT. Illustrations and designs may vary.
-
Page 2: Quick Start Installation
QUICK START INSTALLATION REARWARD-FACING USING SEATBELT NEWBORN UP TO 30 MONTHS, APPROX. PULL PUSH SLACK DOWN CLICK... - Page 3 QUICK START INSTALLATION FORWARD-FACING USING SEATBELT TODDLER (12 MONTHS, APPROX) UP TO 4 YEARS SELECT RECLINE SASH 1, 2, 3 CLICK PULL SLACK PUSH DOWN...
- Page 4 QUICK START INSTALLATION REARWARD-FACING USING ISOGO NEWBORN UP TO 30 MONTHS, APPROX. CLICK! BOTH SIDES...
- Page 5 PUSH Press the child restraint firmly down into the vehicle seat whilst ISOGO pulling on the straps. PULL Pull loose end of the strap until you PULL GREEN get a majority indication. tip: Always check for GREEN at eye level. ATTACH TOP TETHER STRAP...
- Page 6 QUICK START INSTALLATION FORWARD-FACING USING ISOGO TODDLER (12 MONTHS, APPROX) UP TO 4 YEARS SELECT RECLINE 1, 2, 3 CLICK! BOTH SIDES...
- Page 7 Press the child restraint firmly PUSH down into the vehicle seat whilst ISOGO pulling on the straps. PULL PULL Pull loose end of the strap until you GREEN get a majority indication. tip: Always check for GREEN at eye level. ATTACH TOP TETHER STRAP...
-
Page 8: Table Of Contents
CONTENTS Quick Start Installation ....................2 - 7 Contents ......................... 8 Introductions ........................9 Warnings ......................... 10 - 12 VEHICLE INFORMATION Correct Rearward-Facing Vehicle Position ............. 13 Correct Forward-Facing Vehicle Position ............14 Anchor Fitting Location ....................15 Anchor Fitting Installation ..................16-18 Angle Adjustment ...................... -
Page 9: Introductions
BEFORE YOU START: Thank you for purchasing this child seat. This product is suitable for newborn children to toddlers approximately 4 years old. We welcome you as a valued customer, and trust that your child will enjoy many years of comfort and safety. -
Page 10: Warnings
WARNINGS Read and follow all of the installation instructions for maximum protection. If you have any questions regarding the installation or use of this child restraint in Australia or New Zealand, please contact our customer service numbers provided. An alternative option is to also contact any registered child fitting station authorised by your local transport authority. - Page 11 WARNINGS • Fit the restraint firmly to the car seat. • Fit the harness firmly to the child. • A loose restraint or harness is dangerous. • Do not harness an infant wrapped in a blanket or swaddled. Any blanket or wrap must only be placed over the harness and infant. • Seatbelt extenders are not recommended to be used if the seatbelt is not long enough to secure the child restraint. If seatbelts are too short then advice should be sought from a child restraint fitter and their recommendation be considered before using a seatbelt extender. • Always secure the loose end of the top tether strap. Do not use the child restraint where this strap may fall into a split in the seat back or off the side of the seat. • Always secure the loose end of the top tether strap to prevent it hanging out of the car or being accessible by the child. • ALWAYS ATTACH HOOK AND REMOVE SLACK. • THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE THE TOP TETHER STRAP MAY FALL INTO A SPLIT IN THE SEAT BACK OR OFF THE SIDE OF THE SEAT. • THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT UPPER ANCHORAGE POINT IN THE CAR. REFER TO CAR OWNER’S HANDBOOK FOR LOCATION OF UPPER ANCHORAGE POINTS. REFER TO A CHILD RESTRAINT FITTING STATION IF NO UPPER ANCHORAGE POINTS ARE IN THE MOTOR CAR. • Always check the measurements between the front of the seat back of the rear seat and all front seats in the car in which the child restraint is intended to be used, to ensure that the space is sufficient. • Care and attention be given to ventilation and shading of the occupant. • TO BE USED WITH A LAP-SASH/LAP-ONLY SEATBELT OR ISOFIX LOW ANCHORAGES IN THE FRONT/BACK OF MOST CARS WITH FORWARD FACING SEATS.
- Page 12 WARNINGS • The use of child restraints in the front seat may be restricted for children of specific ages by local legislation. Please check with your local legislation regarding any restriction for child restraint. If a car has two or more rows of seats, children under four must not travel in the front seat. If all seats, other than the front seats, are being used by children under seven years, children aged between four and six years (inclusive) may travel in the front seat, provided they use an approved child restraint or booster seat. • Use of aftermarket accessories (i.e. items not provided in the box with the child restraint), can reduce the safety provided by child restraint and may cause injury or death. For approved aftermarket accessories please refer to page • Please contact Dorel Australia Customer Service with any questions or concerns.
-
Page 13: Correct Rearward-Facing Vehicle Position
Correct Rearward-Facing Vehicle Position Some seating positions in your vehicle may NOT be safe for this safety seat. Some vehicles do not have any seating positions that can be used safely with the seat. If you are not sure where to place the infant seat in your vehicle, consult your vehicle’s owner’s handbook. Vehicle Seat Location Requirements Children are safer when properly restrained in rear vehicle seating positions. Whenever possible, secure the infant seat in the centre position of the seat directly behind the front seats. CORRECT USE CORRECT USE 500mm 550mm WARNING IMPROPER PLACEMENT OF THE SAFETY SEAT INCREASES THE RISK OF SERIOUS INJURY OR DEATH. -
Page 14: Correct Forward-Facing Vehicle Position
Correct Forward-Facing Vehicle Position CORRECT USE CORRECT USE INCORRECT USE... -
Page 15: Anchor Fitting Location
Location of Anchorage Fitting NOTE: • The anchor point can be found in different locations in different car. The illustration above shows possible locations of anchor points. Sometimes it is on the parcel shelf in sedans, and on the floor area in station wagons, vans and hatchbacks. Make sure that you do not confuse the luggage hook in the back of a station wagon with anchor points. Refer to your owner’s manual. • An extension strap may be needed for vehicles without a fixed parcel shelf. Extension straps and extra fittings are available from various stores. Extension straps 300mm ref no. 014398 Extension straps 600mm ref no. 014399 Anchor bolt kit ref no. 014400 Locking clip ref no. 014401... - Page 16 Assembling: Wanderer Stroller Anchorage Fitting Installation Child restraints must be used correctly to provide proper protection for your child. The anchorage system on child restraint must be used in the correct way. CORRECT Make sure there is no slack in the top strap and the attachment clip is upright in the anchorage fitting. INCORRECT The clip must not lie flat on the anchorage fitting. INSTALLATION CORRECT INCORRECT Make sure there is no The clip must not slack in the top strap lie flat on the and the attachment anchorage fitting. clip is upright in the anchorage fitting.
-
Page 17: Anchor Fitting Installation
Upper Anchorage Fitting Installation FOR CARS FITTED WITH A CHILD Front of vehicle RESTRAINT UPPER ANCHORAGE POINT Locate the upper anchorage point behind the rear seating position (consult the car owner’s Attachment bolt handbook for the location of the upper anchorage point). Anchor fitting Remove the thread plug from the parcel shelf/ Spacer(s) floor/roof and install the attachment bolt as (if required) shown in Figure 1. Vehicle trim CAUTION: DO NOT OVERTIGHTEN THE Vehicle metal structure ATTACH-MENT BOLT. OVERTIGHTENING MAY FRACTURE OR BREAK BOLT. FOR SEDANS ONLY: MAXIMUM TORQUE IS 20 Nm. - Page 18 Assembling: Wanderer Stroller Upper Anchorage Fitting Installation WARNINGS CHILD RESTRAINTS MUST NOT BE ATTACHED TO UNSOUND METAL OR TO WOOD OR SYNTHETIC STRUCTURES. WHEN DRILLING THE 9mm HOLE DO NOT DRILL THROUGH FUEL LINES, FUEL TANKS, ELECTRICAL WIRING, OR RADIO SPEAKERS. WEBBING STRAPS MUST BE PROTECTED FROM SHARP CORNERS AND EDGES.
-
Page 19: Angle Adjustment
Seat Angle Position seat ensuring that the angle is no greater than 40˚ from horizontal plane. 40˚ Front of vehicle WARNINGS • DO NOT install convertible child restraints excessively reclined, ensure the angle is no greater than 40°. • DO NOT adjust harness or tether strap hardware such that it sits too close to the occupant. • Ensure that correct seatbelt path is used and that the restraint is installed in the correct direction for rearward facing application (Refer to page 28). -
Page 20: Parts List
Components List Adjustable Headrest Air Protect Cell (x2) Multi-Purpose Utility Straps Belt Mates (x2) Harness Buckle Padded Insert Belt Path Opening (both sides) Centre Front Adjuster (under cover) Seat Base Adjuster Strap Base Recline Adjuster... - Page 21 Components List Top Tether Strap Adjuster Top Tether Strap Headrest Adjuster Anchor Kit Instruction Manual / ISOGO storage pocket Top Tether / ISOGO storage pocket ISOGO Lower Connectors (x2, attached to shell) Splitter Plate Recline Indicator Rearward-Facing Belt Path Forward-Facing Belt Path FORWARD-FACING BELT PATH REARWARD-FACING...
-
Page 22: Transition Period From Infant To Toddler Use
ABOVE THIS LINE SHOULDERS MUST BE SHOULDERS MUST BE 4.5 FONT SIZE BELOW THIS LINE MUST BE REAR FACING WHEN 3.5 FONT SIZE Transition Period From Infant To Toddler Use ABOVE THIS LINE SHOULDERS BELOW THIS LINE SHOULDERS MUST BE ABOVE THIS LINE SHOULDERS BELOW THIS LINE WHEN 2.8 FONT SIZE... -
Page 23: Transition Period From Infant To Toddler Use
Transition Period From Infant To Toddler Use (cont’d) WARNINGS • Continue to use this child restraint until the child reaches this limit. • Do not use forward facing until child’s shoulders are above the lower shoulder height marker. • Infants are at risk of serious injury if they face forward too early. • Children are at risk of serious injury if they move to booster seats too early. • Children who have outgrown this restraint are safest in a larger child restraint with an in-built harness or a booster seat until their shoulders reach the upper shoulder height marker of the restraint. • The child restraint is unsuitable for the occupant when the shoulders are below the lower marker or above the upper marker. The child needs to be moved into the next form of child restraint (booster seat) when they reach the top shoulder height marker. NOTE : • If the baby’s neck muscles are unable to support their head, then the child should remain rear facing. -
Page 24: Configuring Harness Straps
Preparing Infant Seat To Fit Your Child You MUST make these adjustments with your child before you install the child restraint in the vehicle. Please adjust harness according to the infant’s shoulder height prior to installation. CONFIGURING THE HARNESS STRAPS FOR CORRECT CHILD FITMENT Push the harness release lever at the front of seat. -
Page 25: Adjusting Headrest Height And Harness Height
Preparing Infant Seat To Fit Your Child (cont’d) ADJUSTING HEADREST AND HARNESS HEIGHT Loosen harness straps to allow slack for headrest movement. ADJUST Lift handle to release, using one hand HEIGHT on the handle and one hand to guide the headrest. Move headrest up or down into position. Ensure bar is LIFT secured in slot. HANDLE BEFORE AFTER NOTES: • Moving the headrest will automatically adjust the harness height. • While adjusting height, place a hand on headrest as a guide. ADJUSTING SEAT RECLINE The seat is fitted with 3 forward-facing recline positions. The 4th and most reclined position is for rearward-facing use ONLY. To adjust, place hand under seat and squeeze the RED lever to select the desired position. -
Page 26: To Fasten Buckle Assembly
Preparing Infant Seat To Fit Your Child TO FASTEN BUCKLE ASSEMBLY Release: Press the red button to release the buckle. Insert one buckle tongue as shown in image. You will not hear a click. Insert the second buckle tongue as shown. Now listen for a “click!”. CLICK! Remember to always pull up on the harness straps to make sure buckle is locked tightly. WARNING DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR. -
Page 27: Adjusting Top Tether Strap
Preparing Infant Seat To Fit Your Car TO LOOSEN PULL PUSH BUTTON TO TIGHTEN PULL PUSH BUTTON TO ADJUST TOP TETHER STRAP: TO LOOSEN: Press on the adjuster button with thumb and pull strap back through to loosen top tether strap using strap which is attached to the seat. TO TIGHTEN: Adjust top tether strap and remove slack. Pull loose end of strap to tighten. NOTE: Store the excess webbing in the pocket provide on the side of the child restraint. -
Page 28: Rearward-Facing Installation Using Seatbelt
Rearward-Facing Installation Using Seatbelt 1. Ensure ISOGO latches are secured into stowage bag location. 2. Set seat to position 4 (full recline) for rearward-facing. 3. Loosen full length of the top tether. 4. Place restraint facing rearwards on back seat of vehicle in line with a top tether strap anchorage point. 5. Thread the vehicle seat belt through the BLUE belt path at the bottom of CLICK the restraint and fasten buckle. PULL PUSH 6. Press the child restraint firmly down into SLACK the vehicle seat and remove belt slack. 7. Attach the top tether strap to the anchorage point. Adjust until all the slack is removed. Ensure Base of seat is not lifted. NOTE: There is an option to install seat using seat belt with accessory locking clip. Please see instructions provided with locking clip for installation. WARNING DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR. -
Page 29: Forward-Facing Installation Using Seatbelt
Forward-Facing Installation Using Seatbelt NOTE: Before you start installation, adjust the shoulder straps to fit your child. pages 24-25. Refer to 1. Ensure ISOGO latches are secured into stowage location. SELECT RECLINE 1, 2, 3 2. Select the desired recline angle (1, 2 or 3). NOTE: Never use position 4 for foward-facing. 3. Place restraint on back seat of vehicle in line with a top tether strap anchorage point. SASH 4. Thread the vehicle seat belt through the back of the seat through the YELLOW forward-facing belt path. CLICK 5. Place one hand on seat and firmly press PULL the child restraint down into the vehicle seat PUSH and pull on seatbelt to remove slack. 6. Attach the top tether strap to the anchorage point. Adjust until all the slack is removed. Ensure Base of seat is not lifted. NOTE: If the car seatbelt is not long enough to secure the child restraint, DO NOT USE SEAT BELT EXTENDERS. -
Page 30: Rearward-Facing Installation Using Isogo
Rearward Facing Installation Using ISOGO NEWBORN UP TO 30 MONTHS, APPROX. 1. Remove ISOGO latches from stowage bag location. 2. Seat seat to position 4 (full recline) for rearward-facing. 3. Place restraint facing rearwards on back seat of vehicle in line with a top tether strap anchorage point. 4. Locate low anchorage points. You can find this by looking for the ISOFIX logo located on the vehicle seat. CLICK! 5. Attach the lower connector on both sides. BOTH SIDES Listen for a “click!” tip: You can move the car seat out of the way to locate and attach the connectors, then place back into position before tightening. - Page 31 Rearward Facing Installation Using ISOGO NEWBORN UP TO 30 MONTHS, APPROX. 5. Firmly push child restraint down into the PUSH vehicle seat whilst pulling on the ISOGO straps. 6. Alternate removing the slack from side to PULL side until you get a firm fitment and achieve a majority GREEN indication. tip: Always check for GREEN at eye level. Pull loose end parallel to the belt strap. CHECK FOR GREEN ONCE CHILD IS SEATED AS THIS CAN CREATE ADDITIONAL SLACK IN PULL SEAT.
-
Page 32: Forward-Facing Installation Using Isogo
Forward Facing Installation Using ISOGO TODDLER (12 MONTHS, APPROX) UP TO 4 YEARS 1. Remove ISOGO latches from stowage bag location. SELECT RECLINE 1, 2, 3 2. Select the desired recline angle (1, 2 or 3). NOTE: Never use position 4 for forward-facing. 3. Place restraint on back seat of vehicle in line with a top tether strap anchorage point. 4. Locate low anchorage points. You can find this by looking for the ISOFIX logo located on the vehicle seat. CLICK! 5. Attach the lower connector on both sides. BOTH SIDES Listen for a “click!” tip: You can move the car seat out of the way to locate and attach the connectors, then place back into position before tightening. - Page 33 Forward Facing Installation Using ISOGO TODDLER (12 MONTHS, APPROX) UP TO 4 YEARS 5. Firmly push child restraint down into the vehicle seat whilst pulling on the ISOGO PUSH straps. 6. Alternate removing the slack from side to side until you get a firm fitment and achieve PULL a majority GREEN indication. tip: Always check for GREEN at eye level. Pull loose end parallel to the belt strap. PULL CHECK FOR GREEN ONCE CHILD IS SEATED AS THIS CAN CREATE ADDITIONAL SLACK IN SEAT.
-
Page 34: Next Seat For Your Child
The Next Seat For Your Child Option 1: HARNESSED FORWARD-FACING CAR SEAT To be used only in a forward-facing position by a child whose shoulders are above the lower shoulder height marker (approximately 6 months of age) until the child’s shoulders reach the upper shoulder height marker (approximately 8 years of age). Option 2: BOOSTER SEAT To be used with a lap-sash seatbelt by a child whose shoulders are above the lower shoulder height marker (approximately 4 years of age) until the child’s shoulders reach the upper shoulder height marker (approximately 6 to 8 years of age). Can also be used with child harness that is approved for use with this booster seat. Option 3: LARGER BOOSTER SEAT To be used with a lap-sash seatbelt by a child whose shoulders are above the lower shoulder height marker (approximately 4 years of age) until the child’s shoulders reach the upper shoulder height marker (approximately 8 to 10 years of age). Can also be used with child harness that is approved for use with this booster seat. for more information, visit www.safety1st.com.au... -
Page 35: Care & Maintenance
Care and Maintenance Follow the manufacturer’s instructions at all times. Before removal, ensure you have carefully noted the way which the various parts are attached to the seat so as to facilitate reassembly. Your child car seat is equipped with a buckle designed to give your child maximum protection during proper use (Figure 1). When working properly, your buckle should always fasten with an audible ‘CLICK’. If sticky liquids (such as baby food, fruit juice, etc.) get into the buckle it may become sluggish and you will not hear a ‘CLICK’. REMOVING BUCKLE: Set seat in position 4 (full recline) (Figure 1a). Lay seat on its back to access crotch adjustment (Figure 1b). Using a flat object (such as a flat-head screw- driver, not included) gently lift one end of the Metal Plate to loosen (Figure 1c), repeat on the other side. Push the metal plates through the top opening to release crotch buckle for cleaning (Figure 1d). - Page 36 Care and Maintenance CLEANING BUCKLE: • Place the buckle unit under running water (40 degrees Celsius), (Figure 2). Let the water flow through the mouth of the buckle for one minute. • Simultaneously latch and unlatch the tongues into the buckle several times until a strong audible click is heard (Figure 2a). • If you still cannot hear a strong audible click after latching the buckle several times. Repeat repeat until steps above. CLICK! • DO NOT oil any part of the buckle. • Allow buckle to completely dry. REFITTING BUCKLE: • Refit crotch buckle ensuring RED button is facing out (Figure 2b). • Place the two metal plates back through openings. • Pull up on each side of the crotch straps firmly to snap the metal plates back into place (Figure 2c). • If the buckle does not return to original working order, contact Dorel Australia Customer Service on 1300 809 526.
-
Page 37: Care Instructions
Care and Maintenance • Seat trim may be removed for cleaning. Don’t forget to remove the instruction manual. • Machine washable on lukewarm setting - delicate cycle. • Tumble dry 10-15 minutes on low heat. • Do not dry clean. • All other surfaces should be cleaned with a mild soap and water. • Never clean with bleach or spirit-type cleaners. • Do not use the restraint without the cover. • Check the webbing for fraying. TO REMOVE SEAT TRIM: SPLITTER PLATE 1. Loosen the harness by pressing down on centre front adjuster. 2. Turn seat around and undo shoulder straps from the splitter plate (Figure 3a). 3. Pull straps through the cover. 4. Undo the buckle and remove the seat trim. NOTE: Never wash air protect cells. TO REPLACE SEAT TRIM: 1. Pull the seat trim on the seat. 2. Feed the shoulder straps through the harness slots, over the top of the metal bar (Figure 3b). -
Page 38: Removing Accessories For Cleaning
Care and Maintenance TO REMOVE HEADREST TRIM To remove the headrest trim, simply undo the velcro at back of the headrest and pull the trim forward. TO REPLACE HEADREST TRIM Fit headrest trim to seat by pulling the trim over the headrest and push back into place, securing velcro at back. Ensure the harness straps are pulled to front. TO REMOVE BELT MATES To remove the belt mates, simply undo press studs and unwrap from harness straps. TO REPLACE BELT MATES Fit belt mates to harness straps by wrapping around straps and closing press studs. TO REMOVE SEAT INSERT To remove the seat insert, undo the buckle and pull the insert out. TO REPLACE SEAT INSERT Feed the buckle through the opening slot in the seat insert and fasten buckle assembly. -
Page 39: Guarantee
Guarantee Dorel Australia Pty Ltd warrants your new product to be free from defects in materials and workmanship for 6 years on the seat & 3 years on the trim, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided. The benefit of this warranty is in addition to your rights under the Australian Consumer Law and to other rights and remedies of the consumer under a law in relation to the goods or services to which the warranty relates. Dorel Australia Pty Ltd will provide you with your choice of a refund, repair, or exchange (where possible) for this product if it becomes defective within the warranty period. Dorel Australia Pty Ltd will bear the reasonable expense of claiming the warranty. This warranty will no longer apply where the defect is a result of alteration, accident, misuse, abuse, or neglect. Please retain your receipt as proof of purchase and contact our Customer Service team on Ph: 1300 809 526 or alternatively, via our website at www.dorel.com.au for any difficulties with your product. Warranty claims and claims for expense incurred in returning this product can be addressed to our Consumer Service team at 655-685 Somerville Road, Sunshine West, VIC, 3020. Hours: 8:30 am to 5:00 pm, Monday to Friday. For New Zealand please contact Customer Service Centre, 14 Sir William Avenue, East Tamaki, Auckland, 2013. Auckland: (09) 2741040 NZ wide: 0800 628 000 (Toll Free). Hours: 8:00 am - 5:00 pm, Monday to Friday. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. - Page 40 Specifications are subject to change without notice. Copy or reproduction without permission is prohibited. © 2017 Dorel Australia Pty Ltd. All Rights Reserved. www.dorel.com.au GMXA4 2013L #017505 02/17...
