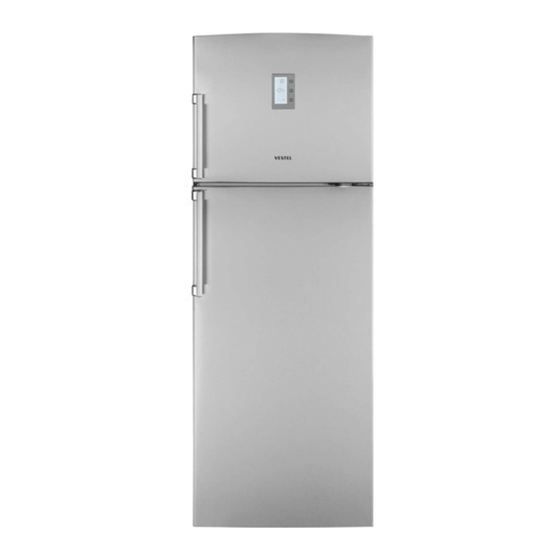

REFRIGERATOR
INSTRUCTION BOOKLET
AKILLI NF545 A++

Advertisement

Table of Contents
loading

Related Manuals for VESTEL AKILLI NF545 A++

Summary of Contents for VESTEL AKILLI NF545 A++

  • Page 1 REFRIGERATOR INSTRUCTION BOOKLET AKILLI NF545 A++...

  • Page 2: Table Of Contents

    Index BEFORE USING THE APPLIANCE ........... 2 General warnings ..................2 Old and out-of-order fridges or freezer ............4 Safety warnings ................... 4 Installing and operating your fridge ............. 5 Before Using your Fridge ................5 Fixing the appliance to the wall ..............6 Information on No-Frost Technology ............

  • Page 3: Before Using The Appliance

    PART- 1. BEFORE USING THE APPLIANCE General warnings WARNING: Keep ventilation openings, in the appliance enclo- sure or in the built-in structure, clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recom- mended by the manufacturer.
  • Page 4 - farm houses and by clients in hotels, motels and other resi- dential type environments. - bed and breakfast type environments; - catering and similar non-retail applications. • If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

  • Page 5: Old And Out-Of-Order Fridges Or Freezer

    Old and out-of-order fridges or freezer • If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident. • Old fridges and freezers may contain isolation material and refrigerant with CFC or HFC. Therefore, take care not to harm environment when you are discarding your old fridges.

  • Page 6: Installing And Operating Your Fridge

    • Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after you have taken them out of the ice-making compartment. • Do not re-freeze frozen goods after they have melted. This may cause health issues such as food poisoning.

  • Page 7: Fixing The Appliance To The Wall

    Fixing the appliance to the wall Note: This fixing part should be used for in the case of , the appliance is out off ballance when then the inside of the appliance is fully empty but the door shelves are full with stuffs. Part No Description Quantity...

  • Page 8: Information On No-Frost Technology

    Information on No-Frost Technology No-frost fridges differ from other static fridges in their operating principle. In normal fridges, the humidity entering the fridge due to opening the door and the humidity inherent in the food causes freezing in the freezer compartment. To defrost the frost and ice in the freezer compartment, you are periodically required to turn off the fridge, place the food that needs to be kept frozen in a separately cooled container and remove the ice...

  • Page 9: Usage Information

    PART- 2. USAGE INFORMATION Display and control panel 1. Enables the setting of the freezer to be modified and super freeze mode to be activated if desired. The Freezer 5. Cooler set value screen. may be set to -16, -18, -20, -22, -24 6.

  • Page 10: Operating Your Fridge

    Operating your fridge On / Off button • It cuts the power of appliance by pushing on-off switch. • After the appliance is plugged, all symbols will appear for 2 seconds, and then the startup values will appear as -18°C on freezer setting indicator and +4°C on cooler setting indicator.

  • Page 11: Super Cool Mode

    Super cool mode How would it be used? • Press cooler set button until SC is shown on the screen. The buzzer will sound twice and the mode will be set. • The Cooler temperature segment will show “SC”. During this mode: •...

  • Page 12: Holiday Mode

    Holiday mode How would it be used? • Push the Mode Button until a circle appears around the plane symbol. • If no button is pressed for 1 sec, the mode will be set. The Circle will blink 3 times and the buzzer wil beep twice. •...

  • Page 13: Function Of Child Lock

    • While using this mode, you must check the temperature of the bottles regularly. When the bottles are cool enough, you must take them out of the appliance. • Bottles may explode if left in the appliance for too long with Drink mode selected. Screen saver mode How to use? •...

  • Page 14: Freezer Temperature Settings

    Freezer temperature settings • The initial temperature value for the Freezer Setting Indicator is -18°C. • Press the freezer set button once. • When you first press the button, the previous value will blink on screen. • Whenever you press on this button, lower temperatures will be set (-16°C, -18°C, -20°C, -22°C, -24°C superfreeze).

  • Page 15: Warnings About Temperature Adjustments

    Warnings about temperature adjustments • Your temperature adjustments will not be deleted when an energy breakdown occurs. • It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efficiency. • Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.

  • Page 16: Quickfreezer Partition

    Removal/replacement of Icemaker • Remove the iceboxes and ice bucket from inside the ice cover (Picture-1) • Remove the ice cover by pushing the pawl on the ice cover downwards and pulling the ice cover (Picture-1-2) • You can place the ice cover in 4 different locations, shown in (Picture-3) with the use of its pawls.

  • Page 17: Fresh Dial

    When you want to use it as a chilled room partition,, open the flap. This ensures that food remains at 0°C. You can store the frozen food that you have taken out of the deepfreeze partition here in order to defrost it, or you can store meat and cleaned fish (in plastic bags or packets) which will be used within 1-2 days Flap...

  • Page 18: Food Placement

    PART- 3. FOOD PLACEMENT Cooling Compartment • Under normal operating conditions, set the temperature of the cooler compartment to +4 / +6 • To avoid frosting, humidification and odour, food should be placed in the fridge in closed containers or covered with appropriate material. •...

  • Page 19: Deep Freeze Compartment

    Deep Freeze Compartment • Under normal operating conditions, set the temperature of the freezer compartment to -18 / -20 • The freezer compartment is used for freezing fresh food, for storing frozen foods for the period of time indicated on packaging and for making ice cubes. •...
  • Page 20 Maximum Storing time Meat and fish Preparation (month) Steak Wrapping in a foil 6 - 8 Lamb meat Wrapping in a foil 6 - 8 Veal roast Wrapping in a foil 6 - 8 Veal cubes In small pieces 6 - 8 Lamb cubes In pieces 4 - 8...
  • Page 21 Maximum Vegetables and Fruits Preparation Storing time (months) String beans and Wash and cut into small pieces and boil in 10 - 13 beans water Beans Hull and wash and boil in water Cabbage Cleaned and boil in water 6 - 8 Carrot Clean and cut to slices and boil in water Cut the stem, cut into two pieces, remove the...
  • Page 22 Maximum Storing Dairy Products Preparation Storing Conditions time (months) Packet Pure Milk – In its own In its own packet 2 - 3 (Homogenize) Milk packet Original package may be used for short storing Cheese-excluding In slices 6 - 8 period.

  • Page 23: Cleaning And Maintenance

    PART - 4. CLEANING AND MAINTENANCE • Disconnect the unit from the power supply before cleaning. • Do not clean the appliance by pouring water. • Make sure that no water enters the lamp housing and other electrical components. • The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

  • Page 24: Replacing The Light Led

    Replacing The Light Led Illumination of your appliance is provided with 1 LED strip in the freezer compartment and 6 circular LEDs in the cooler compartment. If the illumination system of your appliance has to be changed, please call service man. Freezer part LED Cooler part LEDs EN - 23 -...

  • Page 25: Repositioning The Door

    TRANSPORTATION AND CHANGING OF PART- 5. INSTALLATION POSITION • The original packages and foamed polystyrene (PS) can be retained if required. • During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting. •...

  • Page 26: Before Calling The Service

    PART- 6. BEFORE CALLING THE SERVICE Check Warnings; Your fridge warns you if the temperatures for cooler and freezer are in improper levels or when a problem occurs in the appliance. Warning codes are displayed in the Freezer and Cooler Indicators. ERROR TYPE MEANING WHY ?
  • Page 27 This not a failure. This This is seen when the prevents any damage Low voltage power supply gets to the compressor. This LOPO lower than warning will clear after Warning the voltage reaches the 170 V. required level. Check Warnings: If your fridge is not operating: •...

  • Page 28: Tips For Saving Energy

    • It is normal to have water drops formed on the back wall following the automatic defrosting process. (In Static Models) If the doors are not being properly opened and closed: • Are the food packages preventing the doors from being closed? •...

  • Page 29: The Parts Of The Appliance And The Compartments

    PART- 7. THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS A-) FREEZER COMPARTMENT B-) REFRIGERATOR COMPARTMENT 1-) On/Off Button 2-) Fast Freezing Part 3-) Freezer Glass Shelf 4-) Ice Maker 5-) Freezer Shelves 6-) Freezer Illumination 7-) Chiller Zone 8-) Cooler Illumination 9-) Cooler Glass Shelf 10-) Crisper Cover 11-) Crisper...
  • Page 30 This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model. EN - 29 -...
