Team C Hyde Manual page 26

7

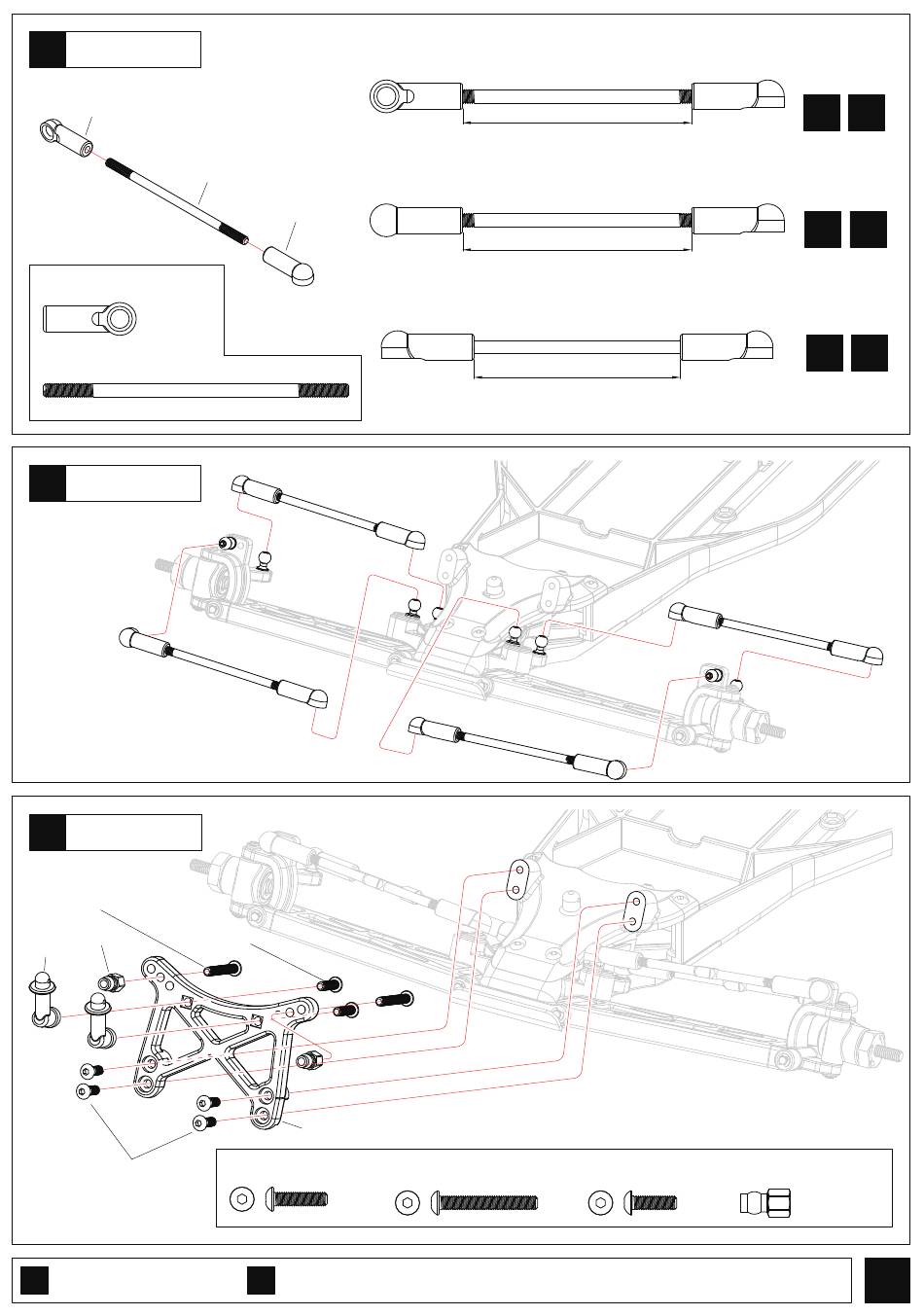

Front Suspension
T02112
T02112 4.8mm Ball End(Long)
............8
TG2010 3x68 Turnbuckle
8
Front Suspension
9
Front Suspension
T02082(M3x22)
T02082(M3x12)
T02117
TG2031
T02082(M3x10)
x1
Assemble as many times as specified
TG2010
T02112
......4
TG2034
T02082 M3x12 Screw
.........2
1:1
True-to -scale diagram
approx.51mm
approx.51mm
approx.46mm
T02082 M3x22 Screw
......2
T02082 M3x10 Screw T02117 5mm Ball stud
.........4
Front Upper (Left)
x1 1:1
Front Upper(Right)
x1 1:1
Steering Tip
x2 1:1
...............2
6
