Team C Hyde Manual page 25

5
Front Suspension
T02082(3x10)
6
Front Suspension
<Right>
L
1
R 2
3
5

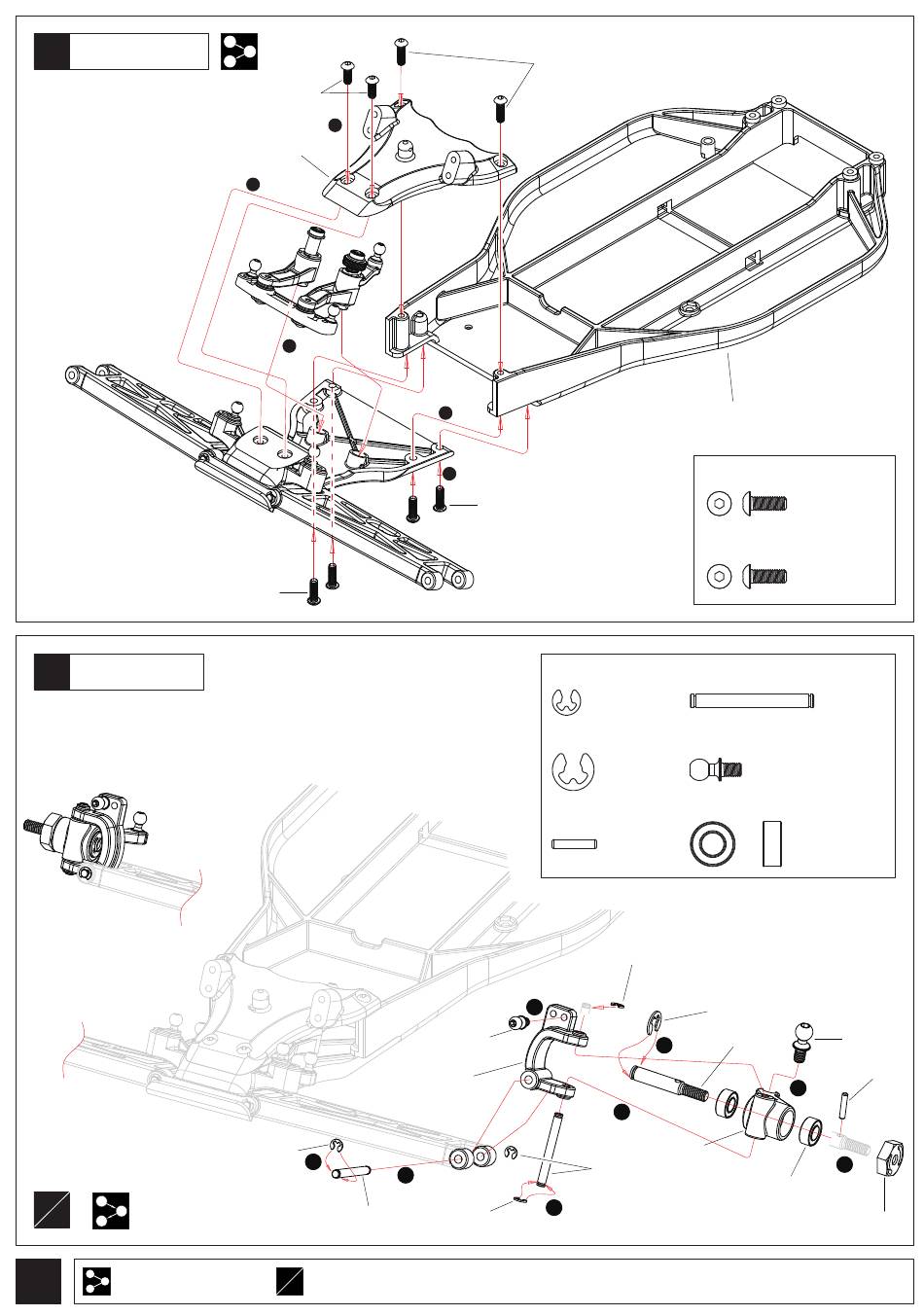

Assemble in the specified order
1
2
3
1
2
3
T02082(3x8)
5
T02128
4
3
T02054
8
7
T02054
Assemble left and right sides the same way
L
R
T02082(3x10)
1
2
T02082(3x10)
T02054 2.3 E-ring
...............8
T02042 4.0 E-ring
T02042 2x9.8 Shaft
T02054
1
T02060
T02122
T02054
6
T02054
TG2034
T02082 M3x8 Screw
T02082 M3x10 Screw
T02054 3x27.5 Hinge pin front outer
T02060 Ball stud - short
............2 ...........................4
T02079 5x10x4
bearing
............2
<Left>
T02042
T02042
3
5
T02123
T02079
..................2
..................6
............4
Contain oil ball
.....................4
T02060
T02042
4
2
T02115
