convenience concepts Oxford Assembly Instructions/Use And Care Manual

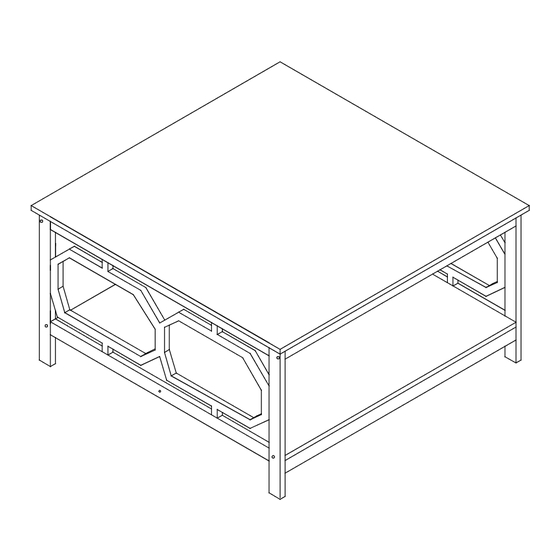

Square 36"coffee table

Assembly Instructions

We have designed our furniture with you,the customer in mind.Our clear,easy to follow

step by step instructions will guide you through the project from start to finish.

Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of

furniture that will go together smoothly and give years of enjoyment.

　　Please do not return to the store

　　Broken or missing Hardware?

STOP

　　Need help with

Square 36"Coffee Table

Assembly?

Table of Contents

Do you have a question about the Oxford and is the answer not in the manual?

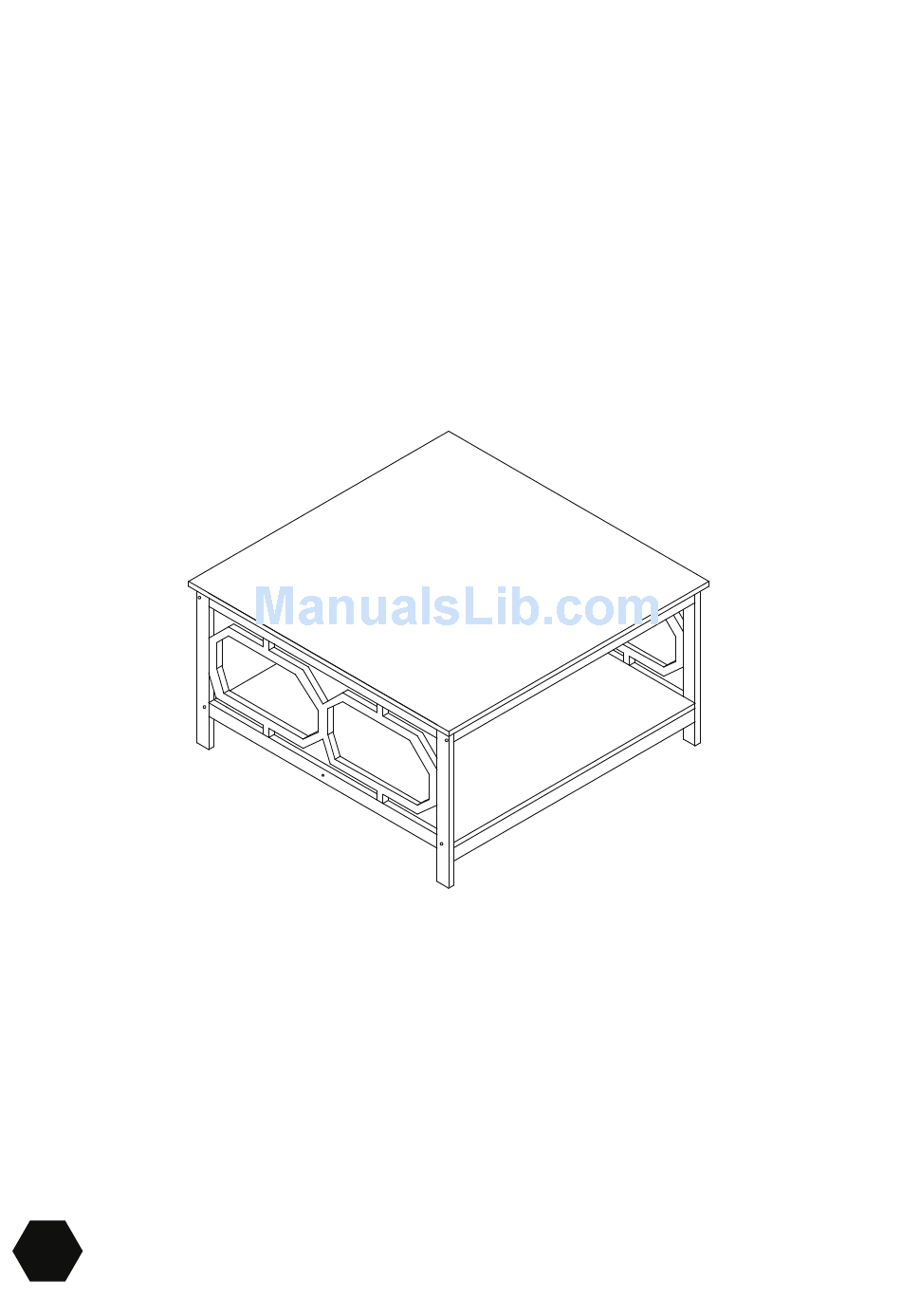

Page 1 Square 36"Coffee Table Assembly Instructions We have designed our furniture with you,the customer in mind.Our clear,easy to follow step by step instructions will guide you through the project from start to finish. Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of furniture that will go together smoothly and give years of enjoyment.
Page 2 *Special Note: We recommend the use of a hand screwdriver to avoid the stripping of screw heads.* Table top Leg assembly Top support Bottom shelf Top support Bottom support Bottom support Leg assembly A x10 B x10 C x16 D x12 E x10 F x12 Lock nut...
Page 3 Step 1 1.A ach bo om supports bo om shelf using Cam Bolts (D) and Cam Lock (F). Insert dowels (C) into leg assemblies Step 2 A ach leg assembly to bo om shelf and top supports using bolts (A) and lock n uts (B).
Page 4 Step 3 Repeat step 2 for remaining leg assembly Step 4 Place top on so surface such as carpet,etc. A ach leg/shelf assembly to using Wood dowel (C) ,Cam Blot (D) and Cam Lock (F).
Page 5 Step 5 Place s ckers (E) over bolt holes and enjoy.
