Summary of Contents for Bartscher Mini Plus

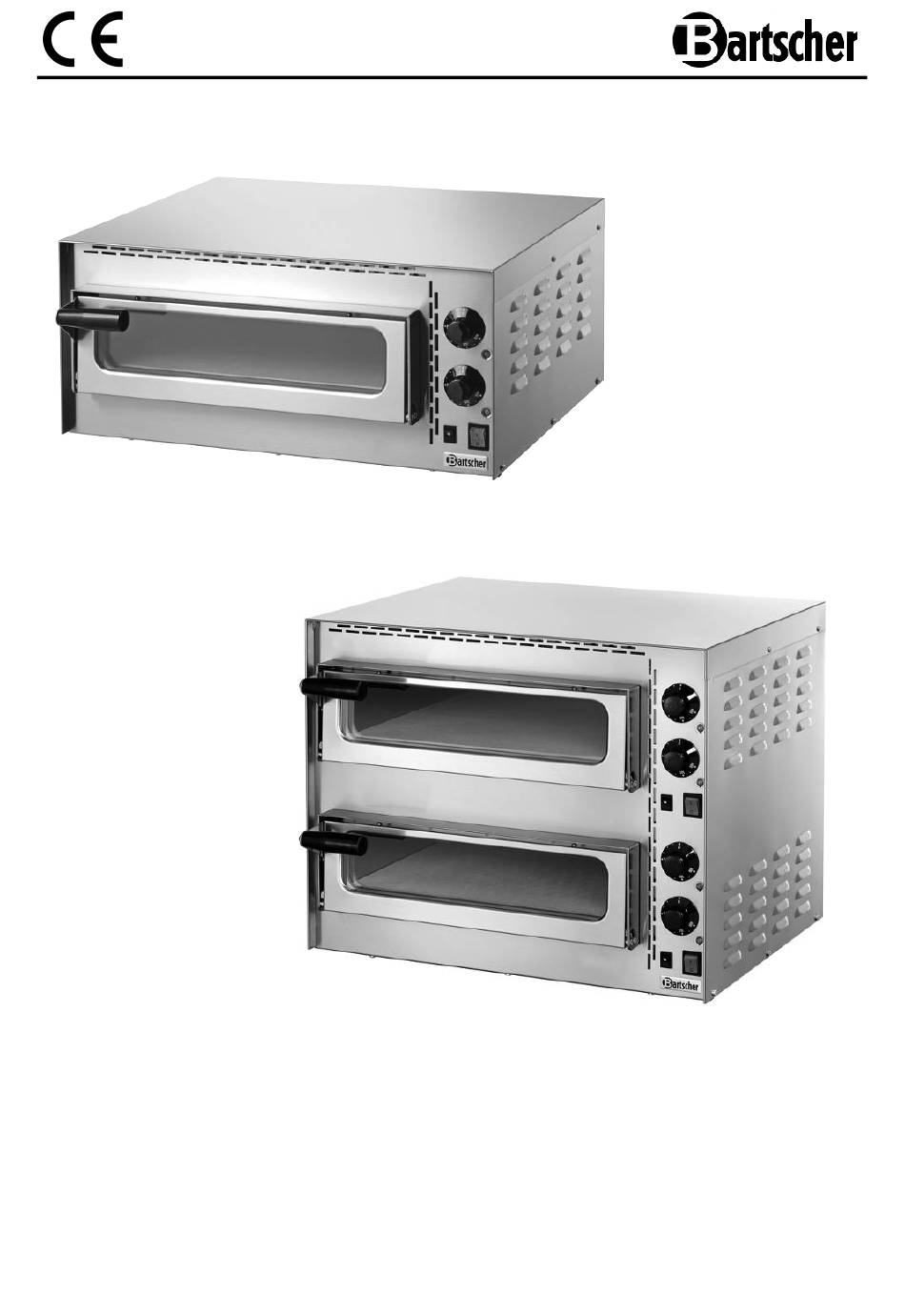

- Page 1 203530 / „Mini Plus“ 203535 / „Mini Plus 2“ Original-Gebrauchsanleitung V2-1/0616...
-
Page 2: Table Of Contents
4.3 Technical specification ..................27 5. Installation and operation ..................28 5.1 Installation ......................28 5.2 Operation ......................29 6. Cleaning ........................31 7. Waste disposal ......................32 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. - Page 4 • This device may only be operated in technically proper and safe condition. • Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard! • Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device.
- Page 5 • The supply cable must be disconnected from the socket only by pulling the plug. • Never carry or lift the device by the supply cable. • In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.
-
Page 6: Key To Symbols
WARNING! Fire or explosion hazard! Follow the safety instructions listed in order to avoid the hazard: • In order to avoid risk of fire and damage to the device, never place kitchen utensils, towels, paper and the like on the device during operation. -
Page 7: Proper Use
CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. 1.3 Proper use CAUTION! The device has been designed and constructed only for commercial use and should be operated by qualified personnel. -
Page 8: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 9: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 10: Technical Data
4. Technical data 4.1 Overview of parts 203530 / „Mini Plus“ Baking chamber Door with glass window Door handle Housing Ventilation holes Baking chamber illumination Control panel Baking chamber bottom from high temperature-resistant stone - 25 -... - Page 11 203535 / „Mini Plus 2“ Lower baking chamber Door with glass window of lower baking chamber Door handle of lower baking chamber Upper baking chamber Door with glass window of upper baking chamber Door handle of upper baking chamber Housing...
-
Page 12: Operational Elements
ON / OFF switch with integrated mains indicator (green) Baking chamber illumination switch 4.3 Technical specification Name “Mini Plus” pizza oven 203530 Art. no.: Stainless steel; Baking chamber with bottom from high temperature-resistant stone, for 1 pizza Ø 35 cm;... -
Page 13: Installation And Operation
Name “Mini Plus 2” pizza oven 203535 Art. no.: Stainless steel; Baking chamber with bottom from high temperature-resistant stone, for 1 pizza Ø 35 cm; Baking chamber realization (2): Independent adjustment of upper and lower heaters; Internal illumination Temperature range: 0 °... -
Page 14: Operation
• Do not place the device in places of high air humidity. The excessive humidity may damage the device. • Never place the device in humid or wet environment. • Place the device in properly ventilated rooms only. • Never cover the ventilation holes. Never cover the device with towels or tablecloth. Never hang any objects on the device. - Page 15 Settings (separately for each heating chamber) • Each heating chamber of pizza oven 203530 and 203535 is turned on independently with ON/OFF switch. Temperature of upper and lower heaters is adjusted independently with use of separate temperature controllers. Heating condition of activated heating chamber is indicated by orange heating indicator (fig.
-
Page 16: Cleaning
• After baking remove the pizza from the oven with use of appropriate kitchen utensils. • When the device will not be used again, set the temperature controller to position “0”. Turn the device off (ON/OFF switch to position “0”) and disconnect it from the socket (remove the plug!). -
Page 17: Waste Disposal
CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
