Summary of Contents for Leuze electronic RFM 32 SL 200

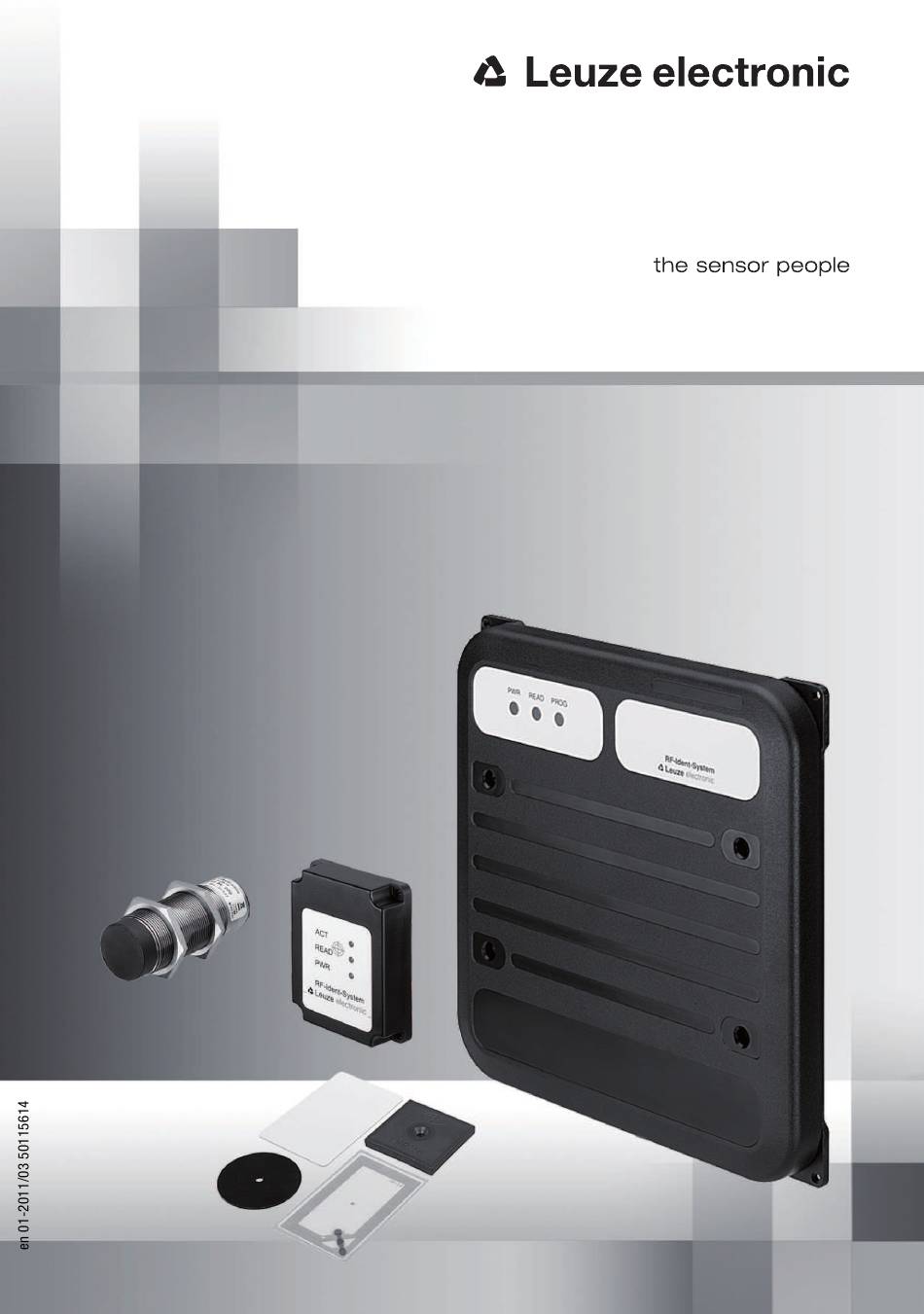

- Page 1 RFM series - the SMART solution Stationary RFID read/write systems, transponders T E C H N I C A L D E S C R I P T I O N...
- Page 2 Leuze electronic GmbH + Co. KG P.O. Box 1111, D- 73277 Owen / Teck Tel. +49(0) 7021/ 573-0, Fax +49(0)7021/ 573-199 Sales and Service Germany Sales Region North Sales Region South Sales Region East Phone 07021/573-306 Phone 07021/573-307 Phone 035027/629-106...
-
Page 3: Table Of Contents
Safety notices for the RFM 32 SL 200 Ex n devices ......6... - Page 4 ASCII table ............59 RFM - HF RFID Series Leuze electronic...
-
Page 5: General Information
Notice! The Declarations of Conformity for the devices are available for download at www.leuze.com. The manufacturer of the product, Leuze electronic GmbH + Co. KG in D-73277 Owen, possesses a certified quality assurance system in accordance with ISO 9001. Leuze electronic... -
Page 6: Definition Of Terms / Abbreviations
The UID consists of the chip manufacturer number and the chip serial number. Notice! Further information can be found in ISO/IEC 15693 and documents published by the chip manufacturer (NXP, Texas Instruments, Infineon, …). RFM - HF RFID Series Leuze electronic... -
Page 7: Safety Notices
The MA 2xx connector units simplify the elec- trical connection of the RFM 12/32/62… read/write systems and facilitate the connection to various interfaces and fieldbus systems. In particular, unauthorized uses include • For medicinal purposes Leuze electronic RFM - HF RFID Series... -
Page 8: Safety Notices For The Rfm 32 Sl 200 Ex N Devices
Operation in potentially explosive areas Available for use in rooms with explosive atmospheres are device variants RFM 32 SL 200 Ex n with certification for use in potentially explosive areas of Zones 2 (gas) and 22 (dust) (see chapter ). - Page 9 • The applicable regulations for the installation of electrical equipment in potentially explosive areas must be observed. • Operation of the RFM 32 SL 200 Ex n in potentially explosive areas is recommended only in combination with the TFM 0x 1x10.EX transponders from Leuze electronic,...
-
Page 10: Working Safely
Observe the locally applicable legal regulations and the rules of the employer's liability insurance association. Qualified personnel Mounting, commissioning and maintenance of the device must only be carried out by qualified personnel. Electrical work must be carried out by a certified electrician. RFM - HF RFID Series Leuze electronic... -
Page 11: Device Description Rfm - Hf Rfid Series
RFM 62 SL 200 Operating range up to 400mm Connection: cable, 1m RFM 32 SL 200 RFM 32 SL 200 Ex n Operating range up to 110mm Connection: cable, 1m / 10m Figure 4.1: RFM device series In general, the RFID devices of the RFM series are designed for handling and warehousing systems with small to medium operating ranges. -
Page 12: Characteristics Of The Rfid Read/Write Systems Of The Rfm Series
• Switching input for triggering a read process/write process • Switching output for signaling states • RS 232 serial interface • Industrial design in protection class IP 65/IP 67 • Easy-to-use RF-Config configuration software available via free download RFM - HF RFID Series Leuze electronic... -
Page 13: Special Additional Characteristics Of The Rfm 12 Sl 200
Typ. reading behavior Reading distance x [cm] Figure 3.1: Typical reading behavior - RFM 12 read-write unit Attention! The values specified may deviate as a result of temperature influences, installation site, read angle, etc. Leuze electronic RFM - HF RFID Series... -
Page 14: Special Additional Characteristics Of The Rfm 32 Sl 200
Device description RFM - HF RFID Series 3.2.3 Special additional characteristics of the RFM 32 SL 200 Performance characteristics RFM 32 SL 200 • Suitable for universal use thanks to compact construction and good detection range • Especially well suited for use between rollers in container or pallet applications •... -
Page 15: Special Additional Characteristics Of The Rfm 32 Sl 200 Ex N
Device description RFM - HF RFID Series 3.2.4 Special additional characteristics of the RFM 32 SL 200 Ex n Performance characteristics of the RFM 32 SL 200 Ex n • Suitable for universal use thanks to compact construction and good detection range •... -
Page 16: Special Additional Characteristics Of The Rfm 62 Sl 200
Reading distance x [cm] Reading distance x [cm] Figure 3.4: Typical reading behavior - RFM 62 read-write unit Attention! The values specified may deviate as a result of temperature influences, installation site, read angle, etc. RFM - HF RFID Series Leuze electronic... -
Page 17: Device Construction
A metal surface in the read field will likewise reduce the operating range. Notice! The antenna surfaces of transponder and read/write system should be as parallel with one another as possible at the read/write position. Leuze electronic RFM - HF RFID Series... - Page 18 • Commissioning systems in dispatch centers • Flexible material flow control in assembly lines and daisy-chained manufacturing cells • Acquisition of operational data Figure 3.6: Reading from below (container or pallet) Figure 3.7: Lateral reading (containers) RFM - HF RFID Series Leuze electronic...
- Page 19 Acceptable function and operating range can be achieved in this way even in metal. Leuze electronic RFM - HF RFID Series...
-
Page 20: Standalone Connection
"collects" the data in the network and transmits it via an interface to the host computer. This reduces interface costs (CPs) and time spent programming the software. RFM - HF RFID Series Leuze electronic... -
Page 21: Leuze Multiscan
The protocol set on the RS 485 interface is the multiNet protocol. As a result, during multiScan operation on the RS 485 interface, the multiNet master also becomes a multiScan master and the multiNet slaves become multiScan slaves (all multiNet slaves are, thus, integrated in multiScan operation). Leuze electronic RFM - HF RFID Series... -
Page 22: Fieldbus Systems
MA 255i 50114156 service interface in the MA… for device configuration RS232 gateway to EtherNet/IP, device connection with system plug, MA 258i 50114157 service interface in the MA… for device configuration RFM - HF RFID Series Leuze electronic... -
Page 23: Specifications
5 … 90% (non-condensing) Standards and directives R&TTE 1999/5/EC, EN 60950-1, EN 300330-2, EN 301489-1/3 Protection class IP 67 acc. to EN 60529 1) Depends on transponder, reading type and reading distance used Leuze electronic RFM - HF RFID Series... -
Page 24: General Specifications Of The Rfm 32 Sl 200 Read/Write Systems (Ex N)
Specifications General specifications of the RFM 32 SL 200 read/write systems (Ex n) General specifications RFM 32 SL 200 RFM 32 SL 200 Ex n Working frequency 13.56MHz Reading range max. 110mm, 85mm recommended (transponder Ø 50mm) Writing range max. 95mm, 70mm recommended (transponder Ø... -
Page 25: General Specifications Of The Rfm 62 Sl 200 Read/Write Systems
Ambient temp. (operation/storage)-25°C … +65°C/-40°C … +70°C Relative air humidity 5 … 90% (non-condensing) Standards and directives R&TTE 1999/5/EC, EN 60950-1, EN 300330-2, EN 301489-1/3 Protection class IP 65 acc. to EN 60529 1) Depends on the transponder used Leuze electronic RFM - HF RFID Series... -
Page 26: General Specifications Of The Tfm Transponders
” ” Spacer 30 HT ” ” Spacer 50 HT ” Spacer 85 HT ” ” BT TFMx26 Operating temperature: temperature range in which the data to/from the transponder are written and read RFM - HF RFID Series Leuze electronic... - Page 27 (passive) (passive) Operating temperature: Temperature range in which the data to/from the transponder are written and read. Cycles of +20°C up to the specified value, without quick heating. Part being discontinued! Leuze electronic RFM - HF RFID Series...
-
Page 28: General Specifications Of The Tfm 0X 1X10.Ex Ex-Transponders
EN 50014:1997-A1-A2 (general regulations) EN 50020:2002 (intrinsic safety) 94/9/EC explosion protection product directive Explosion protection II 3G Ex nA IIB T4 Certification (CENELEC) II 3D Ex tD A22 IP67 T80°C 1) Observe ATEX approval area RFM - HF RFID Series Leuze electronic... -
Page 29: Dimensioned Drawings
Dimensioned drawings Figure 4.1: Dimensioned drawing of the RFM 12 SL 200 read/write system Figure 4.2: Dimensioned drawing of the RFM 32 SL 200 and RFM 32 SL 200 Ex n read/write systems Leuze electronic RFM - HF RFID Series... - Page 30 Dimensioned drawing of the RFM 62 SL 200 read/write system Spacer Spacer 85 HT Mounting device Spacer 30 HT BT TFMx26 Spacer 50 HT Figure 4.4: Dimensioned drawing of spacer/mounting devices for transponders RFM - HF RFID Series Leuze electronic...
- Page 31 TFM 03 1510.210 TFM 05 2210.210 TFM 04 1190.230 TFM 06 2225.220 TFM 05 1110.210 TFM 05 1510.210 TFM 03 5125.220 TFM 08 1610.210 Figure 4.5: Dimensioned drawing of the TFM… (non-Ex) transponders Leuze electronic RFM - HF RFID Series...
- Page 32 Specifications TFM 03 1110.EX TFM 05 1110.EX TFM 05 1510.EX Figure 4.6: Dimensioned drawing of the TFM 0x 1x10.EX Ex transponder RFM - HF RFID Series Leuze electronic...
-
Page 33: Installation And Mounting
Ç Save the original packaging for later storage or shipping. If you have any questions concerning your shipment, please contact your supplier or your local Leuze electronic sales office. Ç Observe the applicable local regulations when disposing of the packaging materials. - Page 34 Installation and mounting • RFM 32 SL 200 and RFM 32 SL 200 Ex n: by means of four fastening holes in the device with four screws. RFM 32 fastening via four fastening holes Fastening holes for 4 x M4 screws Figure 5.2:...
-
Page 35: Mounting Of The Transponders
> 5mm. Also suitable for areas with slight mechanical loading. High temperature transponder High material expansions are possible due to high temperature differences that may occur by using these transponders. The fastening of these transponders must, thus, absolutely be loose. Leuze electronic RFM - HF RFID Series... -
Page 36: Device Arrangement
• at the reading location, the temperature of the transponder is less than 60°C and the transponder is not wet • the reading distance is in the middle part of the read field • the transponders pass by the device individually RFM - HF RFID Series Leuze electronic... -
Page 37: Arrangement On The Transport System
Ç Clean the housing of the RFM - HF RFID Series with a soft cloth after mounting. Remove all packaging remains, e.g., carton fibers or Styrofoam balls. Attention! Do not use aggressive cleaning agents such as thinner or acetone for cleaning the device. Leuze electronic RFM - HF RFID Series... -
Page 38: Electrical Connection
All RFID devices of the RFM - HF RFID Series are equipped with a 1m (non Ex-devices) or 10m (RFM 32 SL 200 Ex n) long, ready-made connection cable. The JST system plug on the cable end can be directly plugged into the corresponding MA …... -
Page 39: Pin Assignment
Cable lengths and shield Ç Observe the following maximum cable lengths and shield types: Connection Interface Max. cable length Shield RFM – host/ connector unit/ RS 232 mandatory fieldbus gateway Table 6.1: Cable lengths and shield Leuze electronic RFM - HF RFID Series... -
Page 40: Network/Fieldbus Connection Via Ma
MA 258i Each connector unit makes available a separate RS 232 service interface that enables configuration of the RFM read/write system with the RF-Config software via a null modem cable from a PC/notebook. RFM - HF RFID Series Leuze electronic... -
Page 41: Commissioning And Configuration
"environment" slide switch to set whether the distance of the RFM 62 to metal surfaces is greater or less than 20mm. Antenna tuning Environment preselection (distance to metal) "Initialize Trimming" button Figure 7.1: RFM 62 antenna tuning Leuze electronic RFM - HF RFID Series... -
Page 42: Configuration Via The Service Interface Of The Ma
It may be necessary to adjust the baud rate for downstream devices or for service access! Commands and messages of the devices The factory settings of the serial interface correspond to those of the other Leuze electronic RFID devices. The interface parameters are: 9600 baud, 1 start bit, 8 data bits , no parity, 1 stop bit. - Page 43 Block size ICODE 4byte ST_M LR512 4byte TAG-IT 4byte ICODE SLI 4byte INFINEON my-d (2P) 8byte INFINEON my-d (10P) 1024 8byte EM4135 8byte TAG-IT HFI 8byte Table 7.1: Transponder types - Tag type Leuze electronic RFM - HF RFID Series...
- Page 44 F = 1: Multiple telegrams are output (for more than 256 bytes of data). @0 is the designator for following serial number. Tagtype is the transponder type, see table 7.1. SNR is the serial number of the transponder. RFM - HF RFID Series Leuze electronic...
- Page 45 Tagtype is the transponder type, see table 7.1. Data is all data beginning with block 00 Notice! Command ’M’ functions only with one transponder simultaneously in the field. This command is not supported by the EM4135 chip! Leuze electronic RFM - HF RFID Series...
- Page 46 Command syntax <STX>A0xx<CR><LF> where xx = 0xFF: Output activated xx = 0x00: Output not activated Answer: none Attention! This command can only be executed if the switching output is not automatically activated via the configuration! RFM - HF RFID Series Leuze electronic...
- Page 47 Multiple pieces of information are contained in this answer as well (starting at the front): 0 = Telegram flag, only 1 telegram is output 00 = Start block number 01 is the transponder type, see table 7.1. 011AAAF601000000FFFFFFF0000000033… is the data in hexadecimal form. Leuze electronic RFM - HF RFID Series...
- Page 48 Multiple pieces of information are contained in this answer as well (starting at the front): 0 = Telegram flag, only 1 telegram is output 04 is the transponder type, see table 7.1. 616361626F75FFFF… is the data in hexadecimal form. RFM - HF RFID Series Leuze electronic...
-
Page 49: Configuring The Rfid Reader Using The Rf-Config Software
Commissioning and configuration Configuring the RFID reader using the RF-Config software The devices can be configured with the RF-Config software from Leuze electronic trans- parently and easily with a mouse click. All parameters and functions can be set via the user interface using menus. - Page 50 ICODE 1 and ICODE SLI transponders. Figure 7.2: RF-Config – Transponder tab In addition, the operating mode for multiple transponders in the field simultaneously can be activated and serial number transmission in the telegram can be added. RFM - HF RFID Series Leuze electronic...
- Page 51 When the transponder does enter the field, it is automatically written with the precharged data. Leuze electronic RFM - HF RFID Series...
- Page 52 If these dependencies are not observed either in whole or in part, the "E10" error message is returned by the device without any changes having been made to the device configuration. Notice! During the propagation time of the output signal (if activated), no transponders can be read. RFM - HF RFID Series Leuze electronic...
-
Page 53: Acknowledgments And Error Codes
Contradictory settings activated (e.g., permanent reading and trigger) Table 7.3: Possible error codes Notice! If error code "E08" occurs, a CRC check was most likely accidentally activated. To reset, please send commands "R" and "0xD2" via the interface. Leuze electronic RFM - HF RFID Series... -
Page 54: Led Indicators
Device (antenna) activated Red, - Reading gate open/precharged for writing continuous light - Transponder is expected Transponder has been detected Green, flashing READ - Data output via interface Table 7.4: LED indicators and their meaning RFM - HF RFID Series Leuze electronic... -
Page 55: Transponder Memory Organization
TAG-IT HFI TFM 02 1125.220 50102915 TFM 06 2225.220 50102913 8byte TFM 03 5125.220 50102956 TFM 08 2125.220 50109233 Part being discontinued. Table 7.5: Transponder types / memory organization of the TFM HF transponders Leuze electronic RFM - HF RFID Series... -
Page 56: Diagnostics And Troubleshooting
RS232 / RS 422 / RS485 Sporadic error on • Influences from electromagnetic • Check shield the RS232 interface interference (EMC). (shield overlap up to the clamping point!). • Avoid electromagnetic interference from high-voltage power lines running parallel. RFM - HF RFID Series Leuze electronic... - Page 57 Customer data (please complete) Device type: Software version: Company: Customer number / order number: Contact partner / department: Phone (direct): Fax: Street / No: ZIP code/City: Country: Leuze Service fax number: +49 7021 573 - 199 Leuze electronic RFM - HF RFID Series...
-
Page 58: Type Overview And Accessories
RFM 62 SL 200 Stationary read/write system, for large operating ranges up to 400mm 50040499 RFM 32 SL 200 Ex n Stationary read/write system, for medium operating ranges up to 110mm, 50103087 for use in potentially explosive areas of Zones 2/22 Table 9.1:... -
Page 59: Model Overview Of The Tfm
TFM 05 1510.EX 50110026 IP 67 Ø 54x15mm Due to tolerances and product updates, dimensions/weights may change. Tolerances of disc transpon- ders: average ±0.5mm. Table 9.5: Model overview of the TFM… Ex n Ex-HF transponders Leuze electronic RFM - HF RFID Series... -
Page 60: Maintenance
Ç Contact your Leuze distributor or service organization should repairs be required. The addresses can be found on the inside of the cover and on the back. Notice! When sending devices to Leuze electronic for repair, please provide an accurate description of the error. 10.3... -
Page 61: Appendix
EXCLAMATION POINT Exclamation point " QUOTATION MARK Quotation mark NUMBER SIGN Number sign DOLLAR SIGN Dollar sign PERCENT SIGN Percent sign & AMPERSAND Ampersand APOSTROPHE Apostrophe OPENING PARENTHESIS Opening parenthesis Table 11.1: ASCII table Leuze electronic RFM - HF RFID Series... - Page 62 Uppercase letter Uppercase letter Uppercase letter Uppercase letter Uppercase letter Uppercase letter Uppercase letter Uppercase letter Uppercase letter Uppercase letter Uppercase letter Uppercase letter Uppercase letter Uppercase letter Uppercase letter Table 11.1: ASCII table RFM - HF RFID Series Leuze electronic...
- Page 63 Lowercase letter Lowercase letter Lowercase letter Lowercase letter Lowercase letter Lowercase letter OPENING BRACE Opening brace VERTICAL LINE Vertical line CLOSING BRACE Closing brace TILDE Tilde DELETE (RUBOUT) Delete Table 11.1: ASCII table Leuze electronic RFM - HF RFID Series...
- Page 64 Ex transponder ..... . 26 Null modem cable ..... 40 RFM - HF RFID Series Leuze electronic...
- Page 65 Switching input ..... . . 10 Switching output ....10 Leuze electronic RFM - HF RFID Series...
