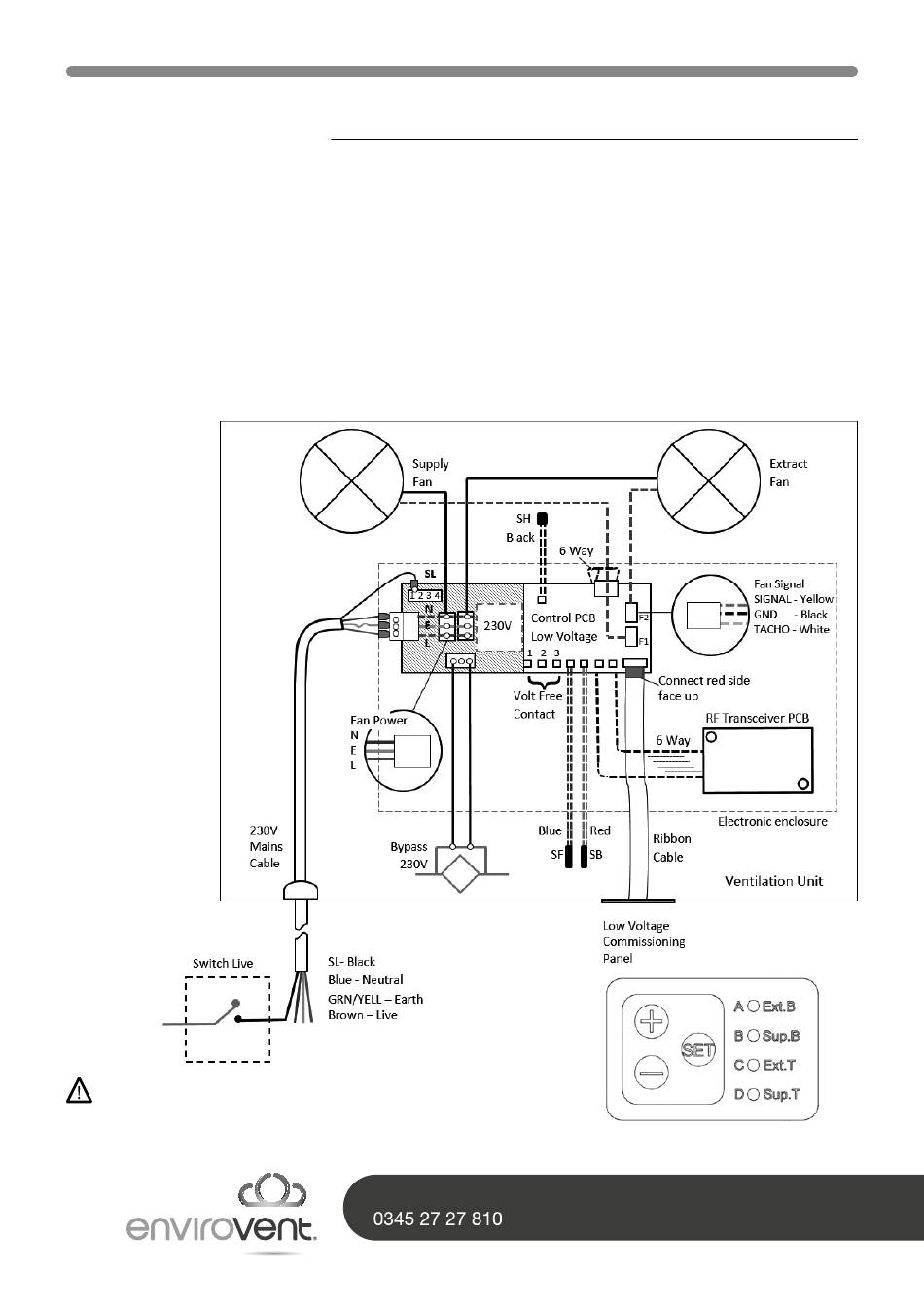

Wiring Diagram

Commissioning -
Electrical Connections
The appliance must be earthed and a double
pole switch having a minimum contact
separation of 3.0mm must be used to
provide isolation for the unit. All wiring must
be completed by a qualified electrician. This
appliance is suitable for 230V ~ 50Hz single
phase supply fused at 3 amps.
Fan connection-
RH configuration
shown. Reverse
for LH.
Emergency shutdown details - Unit to be isolated
from the mains by turning it off at the isolating switch.
03
The appliance is supplied with a 4 core mains
flexible cable.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard.
SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL
