Envirovent energiSava 200 Installation Manual page 11
Ceiling mounted version
Hide thumbs
Also See for energiSava 200:
- Installation manual (28 pages) ,
- User manual (4 pages) ,
- Manual (4 pages)
Table of Contents
Advertisement
05
Installation Instructions
SECOND FIX - Installing the unit
Airflow and drain fitting - RH
Ø20mm
Hole Saw

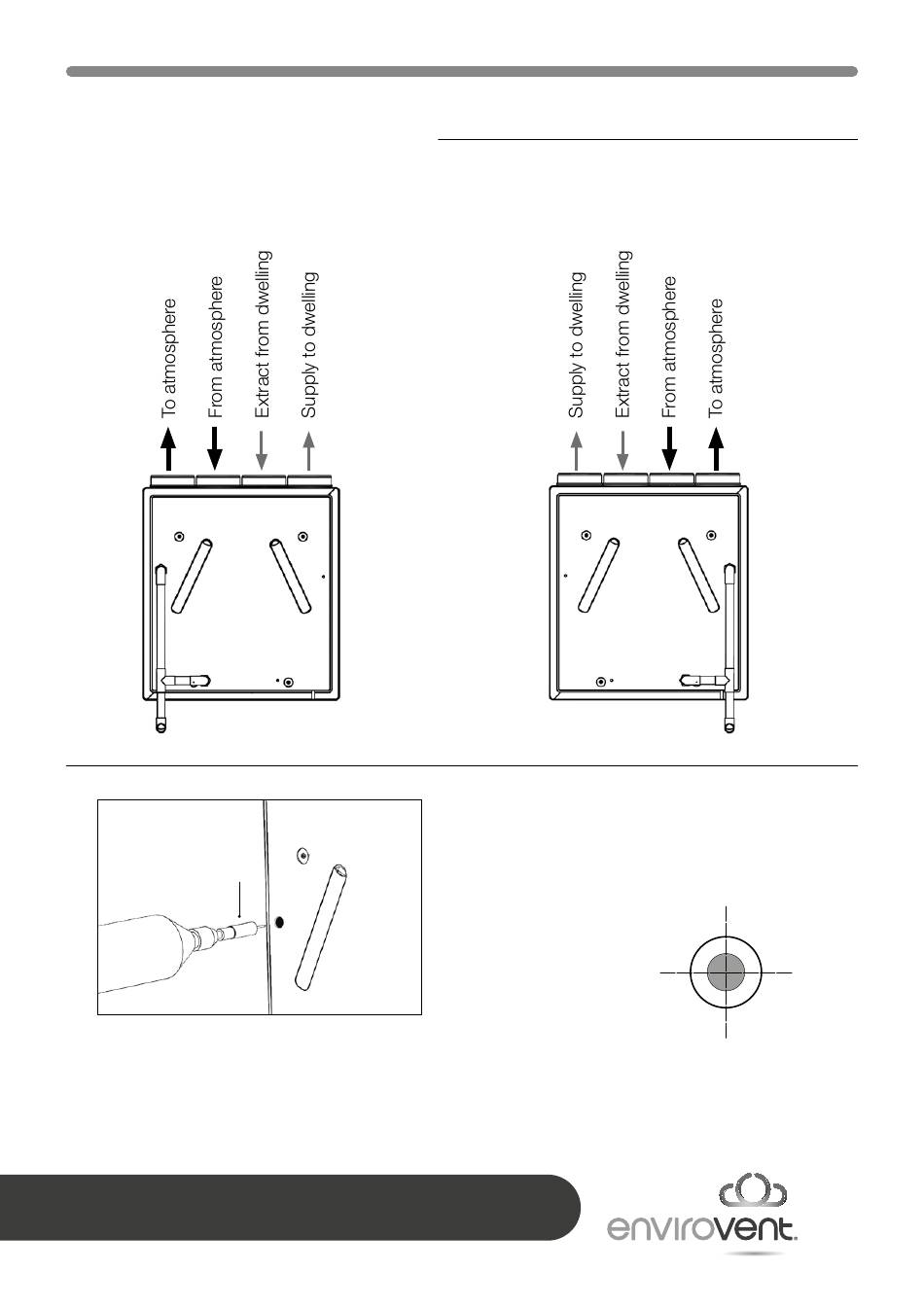

7a. Use the pilot hole to drill through the foam case with a
20mm saw removing plug and cleaning edges. The drain
must be fitted on the side of the unit with the pre-drilled
pilot holes.
AFTER INSTALLING THIS UNIT PLEASE PASS ONTO END USER
DO NOT THROW AWAY
Ceiling
mount
LH
Ceiling
mount
RH
7b. Finished hole.
