About The Unit

The energiSava 200 is a whole house heat
recovery unit which works by continuously
extracting stale, moisture-laden air from the
"Wet Rooms" of the apartment or a house -
the kitchen, bathroom and en-suite rooms -
and ducts this to a central unit. This extracted
air passes through a high efficiency counter-
flow heat exchanger before being ducted to
the outside. Fresh air is drawn into the unit
from outside, which is warmed by the heat
exchange cell and delivered into the living,
dining and bedroom areas.

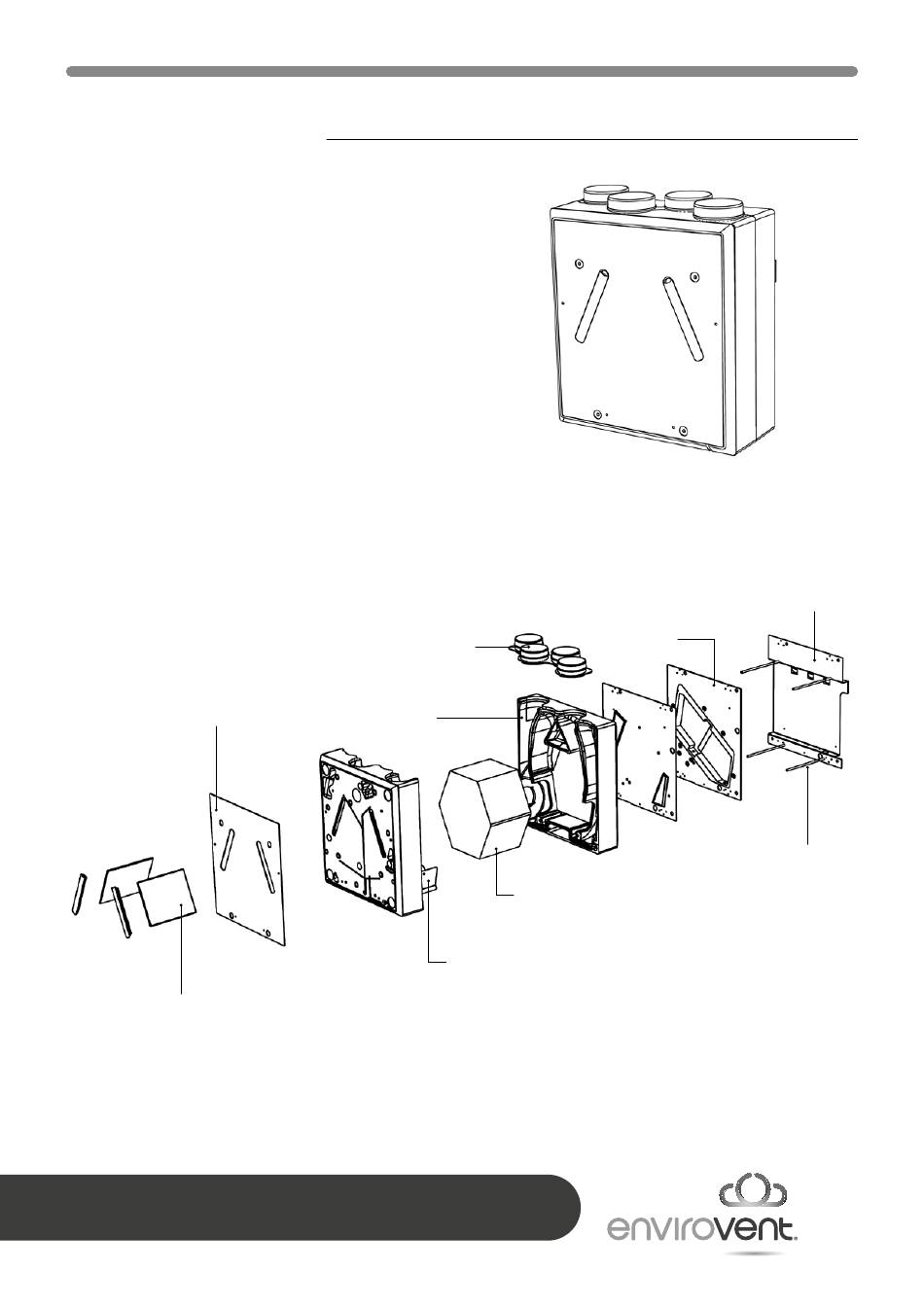

EXPLODED VIEW

Front cover
Filter & Filter plugs
AFTER INSTALLING THIS UNIT PLEASE PASS ONTO END USER
DO NOT THROW AWAY
Spigot
Rear
shell
Heat recovery cell
Motor assembly
Mounting
Bypass
Fixing rods
plate
