• Do not mount the IOM controller on surfaces that
are prone to vibration, such as duct work, or in
areas where electromagnetic emissions from other
devices or wiring can interfere with IOM controller
communication.
• Allow sufficient space for cable and wire
connections (minimum of 51 mm [2 in.] in each
direction).
On panel or enclosure mount applications, observe
these guidelines:
• Do not install the IOM controller in an airtight
enclosure.
• Mount the IOM controller so that the enclosure wall
or the transformer does not obstruct ventilation of
or radiate heat into the IOM controller housing.
Mounting
Clip
Status POWER
FAULT
LEDs
EOL
Switch
ADDRESS Ø = ALL OFF
O
N
BINARY INPUTS
Binary
Inputs Mounting

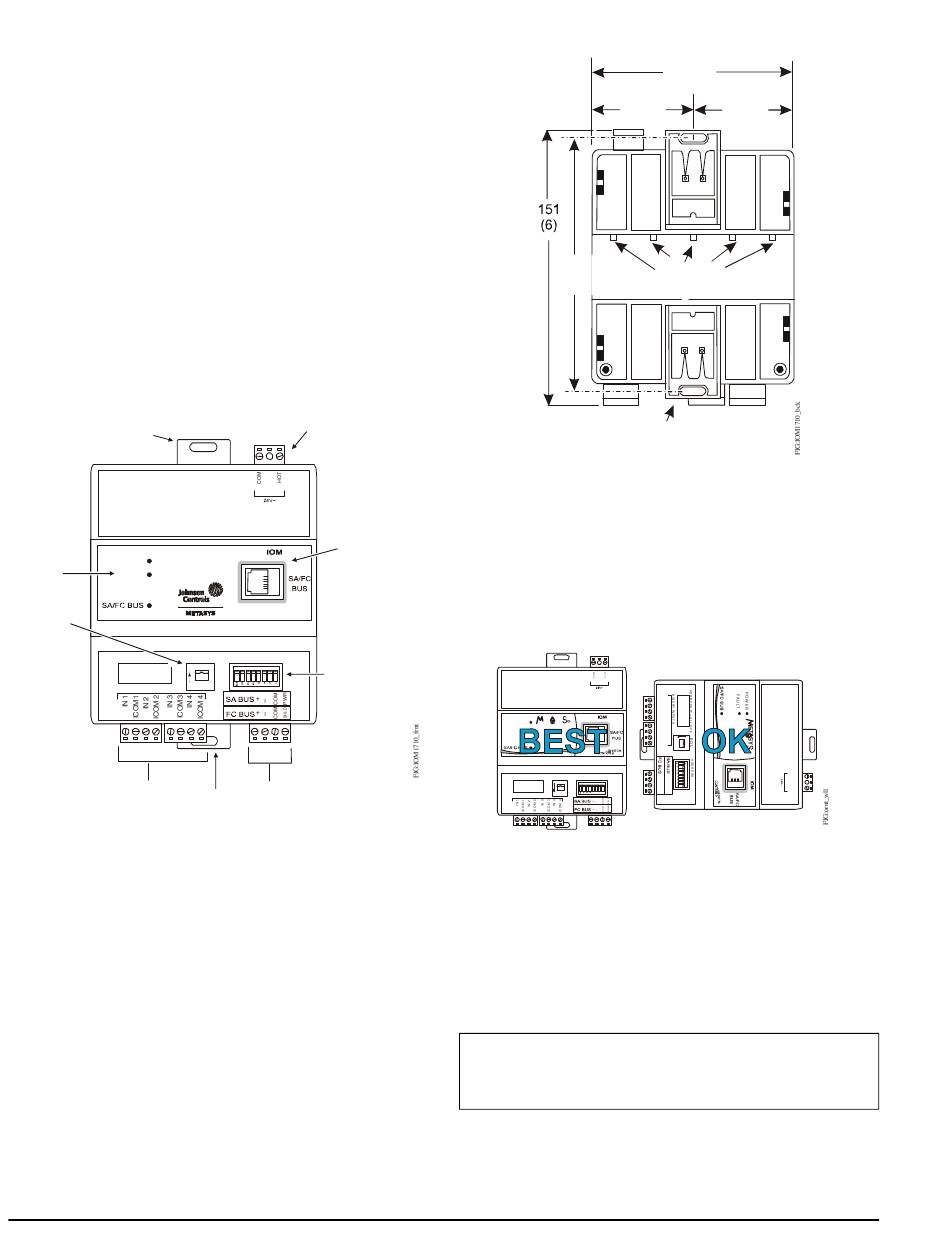

Figure 1: IOM1710 Controller Physical Features
and Wiring Terminal Blocks

Wall Mount Applications

Use the holes in the mounting clips for wall mount
applications.
To mount the IOM controller on a wall or other vertical
surface:
1. Ensure that the bottom mounting clip(s) are pulled
outward and snapped firmly into the extended
position and that the top clip is securely installed
(Figure 2).
2 IOM1710 Input/Output Module Installation Instructions
24 VAC
Power Terminal
SA/FC Bus
Port
ADDRESS
EOL
Device Address
ON
DIP Switches
SA BUS
FC BUS
Clip
54
(2.13 )
143
(5 - 5/8)
Mounting Clip
(Shown Extended)
Figure 2: IOM1710 Controller Mounting Features,
mm (in.)
2. Mark the location of the wall mount holes using the
dimensions in Figure 2, or hold the IOM controller
up to the wall as a template and mark the locations.
Note: Mount the IOM controller horizontally for
proper airflow.
ET SY
POWER R
FAULT
EOL ADDRESS
ADDRES S Ø = A LL OFF
O
N ON
BINARY INP UTS
Figure 3: Required Orientation for Wall Mount
Applications
3. Drill holes in the wall at the locations marked in
Step 2 and insert wall anchors (if necessary).
4. Position the IOM controller and insert the screws
through the holes in the mounting clips, and
carefully tighten all the screws.
IMPORTANT: Do not overtighten the mounting
screws. Overtightening the screws may damage the
mounting clips or IOM housing.
108
(4-1/4 )
54
(2.13)
DIN Rail
Hooks
IN 1
ICOM 1
IN 2
ICOM 2
IN 3
ICOM 3
IN 4
ICOM 4
+ +
CO M
– –
CO M CO M
HO T
PWR
SHLD
