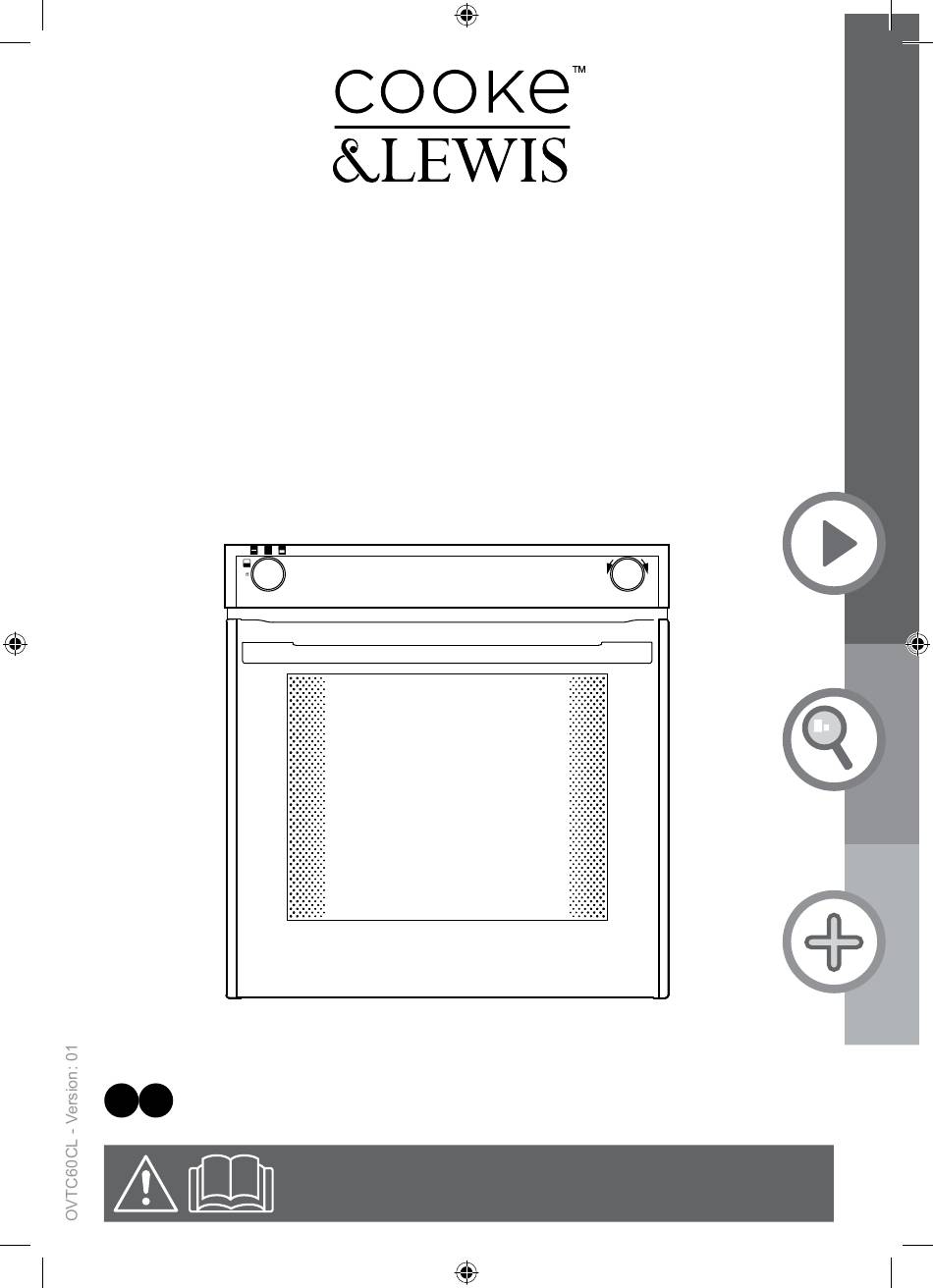

60cm Single electric Oven with twin zOne gB ie Double oven - Barcode: 5052931258765 wArning: Read the instructions before using the appliance. OVTC60CL-C&L-A5-GB-IM-09.indd 1 11/4/13 3:00 PM...
Page 2
[02] x 1 [01] x 1 [03] x 1 [04] x 2 [05] x 1 [06] x 4 1 : 1 [07] x 4 (Ø4mm x 25mm) Ovtc60cl Single oven OVTC60CL-C&L-A5-GB-IM-09.indd 2 11/4/13 3:00 PM...
Getting Your product Before you start Safety detail… more Operation care and maintenance recycling and disposal technical and legal information guarantee ce Declaration of conformity Appendix... installation OVTC60CL-C&L-A5-GB-IM-09.indd 3 11/4/13 3:00 PM...

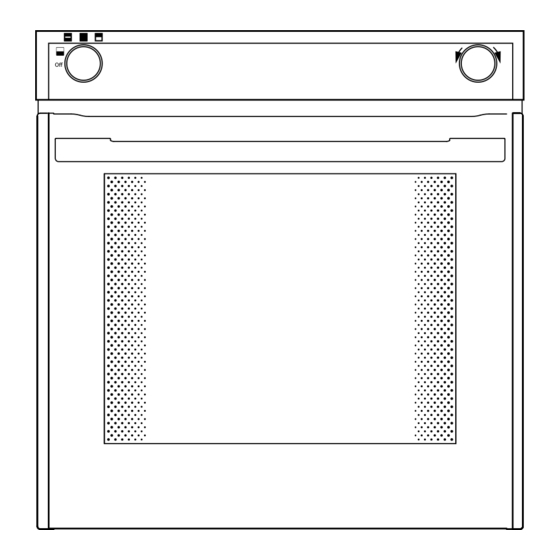

Your product Ovtc60cl Single oven Your product note! Shelf levels are numbered from the bottom up. Levels 4 and 5 are used mainly for the grill function. Please refer to the cooking guides provided throughout this manual to determine appropriate shelf levels for your dishes.
Before you start Ovtc60cl Single oven things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.
Safety Ovtc60cl Single oven these instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. • This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions.
Page 7
Safety Ovtc60cl Single oven Do not install the appliance outdoors in a damp place or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak allow the machine to dry naturally.
Page 8
Safety Ovtc60cl Single oven The appliance is not intended to be operated by means of external timer or separated remote-control system. The appliance is for domestic use only. The Manufacturer declines all liability for personal or material damage as a result of misuse or incorrect installation of this appliance.
Page 9
Safety Ovtc60cl Single oven Before connecting the appliance to the power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the appliance rating label. Never use a damaged appliance! Disconnect the appliance from the electrical outlet and contact your retailer if it is damaged.
Page 10
Safety Ovtc60cl Single oven Connect the power plug to an easily reachable electrical outlet so that in case of an emergency the appliance can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch off the appliance.
Page 11
Safety Ovtc60cl Single oven Do not cover the bottom of the oven with aluminium foil or other objects. Caution: Risk of fire! Do not allow aluminium foil, plastic, paper or fabric contact with heating elements. Never leave the appliance unattended during use, especially when cooking with flammable substances (e.g.
Operation Ovtc60cl Single oven introduction note: This multifunction oven combines the advantages of traditional convection ovens with those of the more modern fan assisted models in a single appliance. It is an extremely versatile appliance that allows you to choose easily and safely between different cooking modes.
Operation Ovtc60cl Single oven Using the Divider This oven comes equipped with an oven cavity divider which divides the oven cavity into two separated cooking zones enabling independent cooking. This function only operates when the cavity divider is in the central position (level 3).
Page 14
Operation Ovtc60cl Single oven Setting the clock for the first time When the appliance is switched on for the first time, the display on the control panel will light briefly and 0:00 will begin blinking in the display. The oven cannot be operated until the clock is set.
Page 15
Operation Ovtc60cl Single oven Product functions note! If you want to change the partition, touch the Function (3) button and hold for about 3 seconds, then Short touch the Function (3) button to select the desired partition. insert Divider Symbol...
Page 16
Operation Ovtc60cl Single oven Product functions Upper zone The divider should be inserted. True fan Top heat + true fan Large grill lower zone The divider should be inserted. True fan Bottom heat + true fan OVTC60CL-C&L-A5-GB-IM-09.indd 16 11/4/13 3:00 PM...
Page 17
Operation Ovtc60cl Single oven Single zone The divider should nOt be inserted. True fan Top heat + true fan Conventional Large grill Small grill Bottom heat + true fan Defrosting OVTC60CL-C&L-A5-GB-IM-09.indd 17 11/4/13 3:00 PM...
Page 18
Operation Ovtc60cl Single oven The information given in the following charts is intended only as a guide. Select the lowest temperature quoted and check the food at the end of the shortest duration quoted. If using upper or lower zone adjust cooking time accordantly.
Page 19
Operation Ovtc60cl Single oven cOnventiOnAl Food recommended temperature °c time in min. shelf level from the bottom Roast beef, approx. 1 kg 190 – 210 100 – 120 Beef fillet, approx. 1 kg 200 – 220 45 – 55 Venison, approx. 1 kg 190 –...
Page 20
Operation Ovtc60cl Single oven trUe FAn mODe cakes / biscuits recommended temperature cooking time shelf level in min. (ºc) from the bottom cake mixture Desserts in moulds Sponge cake 150-170 60-70 Marble, nut cake (tin) 150-170 60-80 fresh fruit cake (tray)
Page 21
Operation Ovtc60cl Single oven grill mODe Food to be grilled recommended temperature total grilling shelf level setting time in min. from the bottom thin cuts Steak 3 or 4 maximum 10-16 Kebabs maximum 25-30 Chicken kebabs maximum 20-25 Cutlets/schnitzel 3 or 4...
Operation OVTC60CL Single oven Setting the temperature Select the required zone (see page 15). Lower, upper and single zone temperature setting Press the Temperature button (2) and hold for about 2 seconds and the Turn the Time/Temp/Function dial (7) left or right to adjust the temperature in increments of + or - 5°C to the desired setting .
Operation Ovtc60cl Single oven Display icons End time Locked icon icon End of Kitchen cooking timer icon time Setting end cooking time You can set an end cooking time once you have started cooking. This will turn off the oven automatically after the programmed time has elapsed. You will hear a audible beep when it turns off.
Page 24
Operation Ovtc60cl Single oven Setting delayed start cooking You can set the oven to turn on automatically when you are out at a prescribed time so you can have something cooked when you return. lower, upper and single zones only Select the appropriate cooking zone and set your cooking temperature.
Ovtc60cl Single oven care and maintenance warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, contact customer services. caution Do not use hot water, diluents, petrol, alcohol, kerosene, washing powder, cleanser, alkaline detergent, acid, chemical cloth, etc.
Page 26
Ovtc60cl Single oven how to keep your oven in good condition Before cleaning your oven, or performing maintenance, disconnect it from the power supply. To extend the life of your oven, it must be cleaned frequently, keeping in mind that •...
Ovtc60cl Single oven how to remove the oven door for a more thorough clean, you can remove the oven door. To remove the oven door use the following instructions: Open the door to the full extent. Open the lever A completely on the left hand hinges.
Page 28
Ovtc60cl Single oven removing the inner pane of glass Remove the top plate by Gently pull out the inner panel of glass. unscrewing the no. 2 screws (A). Clean the glass with an appropriate cleaner. Dry thoroughly, and place on a soft surface.
Ovtc60cl Single oven replacing the oven lamp wArning: Disconnect the appliance from the electricity supply, open the oven door remove the oven shelves. 90’ • During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
Ovtc60cl Single oven technical and legal information recycling and disposal environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
Ovtc60cl Single oven guarantee This appliance is covered by a full manufacturer’s 2 year parts and 2 year labour guarantee and covers all parts and labour costs associated with the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts.
Page 32
Ovtc60cl Single oven guarantee exclusions to the guarantee This guarantee does NOT cover: Appliances that have been damaged or neglected as a result of failure to store, assemble, install, use or care of the products in accordance with the manufacturer’s instructions - GAA will not accept responsibility under this...
Declaration of conformity Ovtc60cl Single oven ce Declaration of conformity MANUFACTURER: CATA C/ Ter nº 2, Torelló 08570 - Barcelona (Spain) ADDRESS: We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law.
Page 34
In particular the adhesive that bonds the plastic laminate to the furniture must be able to withstand temperatures of not less than 150°C to avoid delamination. The appliance must be housed in heat-resistant cabinets. OVTC60CL-C&L-A5-GB-IM-09.indd 34 11/4/13 3:00 PM...
Page 35
It is essential when installing your oven there is adequate air circulation around the appliance to ensure the correct operation of the appliance. Inadequate air circulation will greatly impair the performance of the appliance and can affect adjacent cabinets due to the rise in temperature. OVTC60CL-C&L-A5-GB-IM-09.indd 35 11/4/13 3:00 PM...
The installer must ensure that the correct electrical connection has been made and that it complies with wiring diagram. The cable must not be bent or compressed. The cable must be checked regularly and replaced by authorized techniciansonly. OVTC60CL-C&L-A5-GB-IM-09.indd 36 11/4/13 3:00 PM...
Blue = n - neutral green and Yellow = - earth The connection point must be placed in a position adjacent to the appliance so as to be readily accessible for an engineer in the event of a breakdown. OVTC60CL-C&L-A5-GB-IM-09.indd 37 11/4/13 3:00 PM...
Page 38
Also ensure that you adjust the furniture doors adjacent to the sides of the oven so there is a 4 - 6mm gap between them, otherwise heat displaced from the oven might damage the furniture door. The appliance is now ready to use. OVTC60CL-C&L-A5-GB-IM-09.indd 38 11/4/13 3:00 PM...
