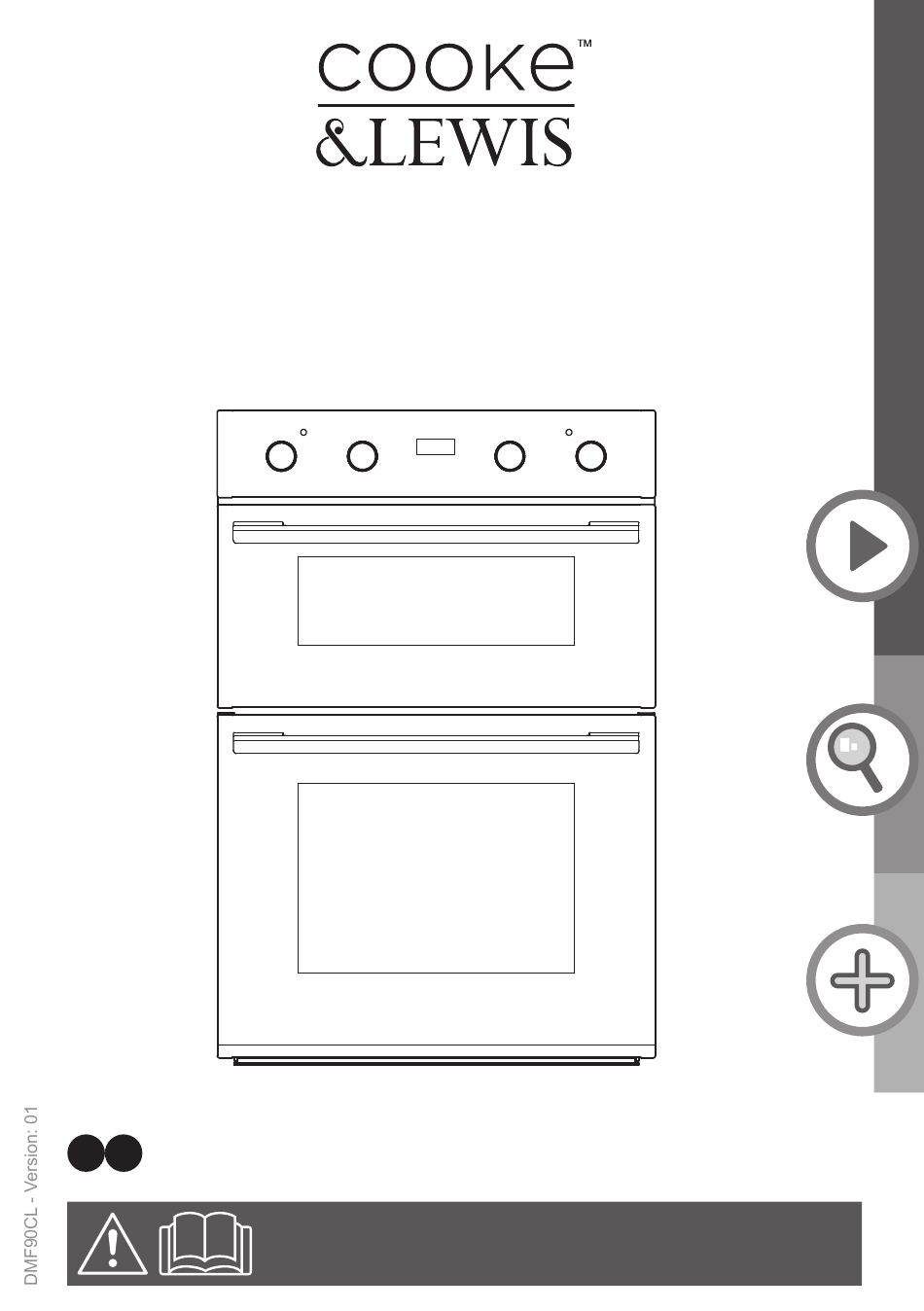

- Page 1 90CM BUILT-IN ELECTRIC DOUBLE OVEN GB IE Built-under electric double oven - Barcode: 5052931284603 WARNING: Read the instructions before using the appliance.
- Page 2 [02] x 1 [03] x 1 [01] x 1 [04] x 2 [05] x 4 1 : 1 [06] x 4 (Ø4mm x 25mm) DMF90CL Built-in electric double oven...
-
Page 3: Table Of Contents
Let's get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started… Your product Before you start Safety detail… more Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity... -
Page 4: Your Product
Your product DMF90CL Built-in electric double oven Your product Note! This diagram may be slightly different from the layout of the appliance. Control panel Cooking mode selection knob Cooking temperature selection knob Electronic programmer - allows you to programme the desired cooking by selecting the cooking time and the end cooking time. -
Page 5: Before You Start
Before you start DMF90CL Built-in electric double oven Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. -
Page 6: Safety
Safety DMF90CL Built-in electric double oven These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. - Page 7 Safety DMF90CL Built-in electric double oven Do not install the appliance outdoors in a damp place or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak allow the machine to dry naturally.
- Page 8 Safety DMF90CL Built-in electric double oven The appliance is not intended to be operated by means of external timer or separated remote-control system. The appliance is for domestic use only. The Manufacturer declines all liability for personal or material damage as a result of misuse or incorrect installation of this appliance.
- Page 9 Safety DMF90CL Built-in electric double oven Before connecting the appliance to the power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the appliance rating label. Never use a damaged appliance! Disconnect the appliance from the electrical outlet and contact your retailer if it is damaged.
- Page 10 Safety DMF90CL Built-in electric double oven Connect the power plug to an easily reachable electrical outlet so that in case of an emergency the appliance can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch off the appliance.
- Page 11 Safety DMF90CL Built-in electric double oven Do not cover the bottom of the oven with aluminium foil or other objects. Caution: Risk of fire! Do not allow aluminium foil, plastic, paper or fabric contact with heating elements. Never leave the appliance unattended during use, especially when cooking with flammable substances (e.g.
-
Page 12: Operation
Operation DMF90CL Built-in electric double oven Introduction Note: This multifunction oven combines the advantages of traditional conventional oven with those of the more modern fan oven model in a single appliance. It is an extremely versatile appliance that allows you to choose easily and safely between different cooking modes. - Page 13 Operation DMF90CL Built-in electric double oven Product functions • The oven is controlled by a thermostat between 60°C and 250°C, depending on the temperature required. • The thermostat light turns on and off to indicate the temperature control during use.
- Page 14 Operation DMF90CL Built-in electric double oven Product functions MAIN OVEN Turning cooking mode selection dial to this Oven Light setting, the oven light will illuminate in the oven cavity, and will operate on all selected functions. Grill element comes on and is dispersed by Grill radiant heat.
-
Page 15: Recommended Cooking Times
Operation DMF90CL Built-in electric double oven Recommended cooking times Note! The information given in the following charts is intended only as a guide. Select the lowest temperature quoted and check the food at the end of the shortest duration quoted. - Page 16 Operation DMF90CL Built-in electric double oven Recommended cooking times CONVENTIONAL Recommended Food Temperature °C shelf level Time in min. from the bottom Roast beef, approx. 1 kg 190 – 210 100 – 120 Beef fillet, approx. 1 kg 200 – 220 45 –...
- Page 17 Operation DMF90CL Built-in electric double oven Recommended cooking times TRUE FAN MODE Shelf Position Temperature Cooking Time Cakes / biscuits (Recommended) in min. (ºC) from the bottom Cake Mixture Desserts in Moulds Sponge cake 150-170 60-70 Marble, nut cake (tin)
- Page 18 Operation DMF90CL Built-in electric double oven Recommended cooking times GRILL FAN GRILL Recom- mended Food to be shelf level Total grilled Total from the Temperature Temperature grilling grilling bottom setting setting Time in Time in min. min. Thin cuts Steak...
- Page 19 Operation DMF90CL Built-in electric double oven 3-key timer procedure cooking mode Adjust the clock after switch on Once it connected with electrical power, the display will show “12:00” with the square symbol above “ ”. Press the + or - button will increase or decrease the number until it reaches the right time.
- Page 20 Operation DMF90CL Built-in electric double oven Semi-automatic setting Setting the required time frame for baking (10 hours maximum) • Press the function button repeatedly until the square symbol above “ ”, and set the required time using the + and - buttons.
-
Page 21: Cooling Ventilation
Operation DMF90CL Built-in electric double oven Cooling ventilation • In order to cool down the exterior of the appliance, this model is equipped with a cooling fan, which comes on automatically when the oven is hot. • When the fan is on, a normal flow of air can be felt exiting between the oven door and the control panel. -
Page 22: Using The Defrost Mode
Operation DMF90CL Built-in electric double oven Using the true fan mode The rear circular element and the fan come on and the heat is dispersed by forced convection. This mode is suitable for roast joints when you want it well cooked on the outside and tender in the middle. -
Page 23: Care And Maintenance
Care and maintenance DMF90CL Built-in electric double oven Care and maintenance Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, FUSE contact customer services. Caution Do not use hot water, diluents, petrol, alcohol, kerosene, washing powder, cleanser, alkaline detergent, acid, chemical cloth, etc. - Page 24 Care and maintenance DMF90CL Built-in electric double oven How to keep your oven in good condition Before cleaning your oven, or performing maintenance, disconnect it from the power supply. To extend the life of your oven, it must be cleaned frequently, keeping in mind that: •...
- Page 25 Care and maintenance DMF90CL Built-in electric double oven How to remove the oven doors For a more thorough clean, you can remove the oven door. To remove the oven door use the following instructions: Open the lever A completely on the Open the door to the full extent.
- Page 26 Care and maintenance DMF90CL Built-in electric double oven Removing the inner panel of glass Remove the top plate by Gently pull out the inner panel of unscrewing the no. 2 screws glass. (A). Clean the glass with an appropriate cleaner. Dry thoroughly, and place on a soft surface.
-
Page 27: Replacing The Oven Lamp
Care and maintenance DMF90CL Built-in electric double oven Replacing the oven lamp Warning! Disconnect the appliance from the electricity supply, open the oven door and remove the oven shelves. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. -
Page 28: Troubleshooting
Troubleshooting DMF90CL Built-in electric double oven Recycling and disposal Troubleshooting What should I do if the oven doesn’t heat up? Check to see if one of the following actions resolves the issue: • The oven may not be switched on. Switch the oven on. -
Page 29: Technical And Legal Information
Technical and legal information DMF90CL Built-in electric double oven Technical and legal information Technical information: Power supply 220-240V~, 50/60Hz Power consumption 4200-5100W Legal information The Manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance. -
Page 30: Guarantee
Guarantee DMF90CL Built-in electric double oven Guarantee This appliance is covered by a full manufacturer’s 2 year parts and 2 year labour guarantee and covers all parts and labour costs associated with the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts. - Page 31 Guarantee DMF90CL Built-in electric double oven Guarantee Exclusions to the guarantee This guarantee does NOT cover: Appliances that have been damaged or neglected as a result of failure to store, assemble, install, use or care of the products in accordance with the manufacturer’s instructions - GAA will not accept responsibility under this...
-
Page 32: Ce Declaration Of Conformity
CE Declaration of Conformity DMF90CL Built-in electric double oven CE Declaration of Conformity MANUFACTURER: CATA C/ Ter nº 2, Torelló 08570 - Barcelona (Spain) ADDRESS: We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law. -
Page 33: Installation
Installation Electrical connection All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. WARNING: THIS APPLIANCE MUST BE EARTHED. Mains Supply could be connected to the Mains Voltage by Direct Connection DOUBLE POLE SWITCHED FUSED SPUR OUTLET... -
Page 34: Electrical Connection
Electrical connection Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. For your own safety a qualified electrician or contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation. - Page 35 Only a qualified person in compliance with the instructions provided must install the appliance. The manufacturer declines all responsibility for improper installation, which may harm persons and animals and damage property. Caution • The power supply to the appliance must be switched Fig 5 off before any adjustments or maintenance work is undertaken.
- Page 36 Fixing the double oven Lift oven into housing unit as shown below, do not lift the oven with the handle otherwise the glass door might shatter. Note: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Page 37 Ventilation 570mm An air circulation slot that should be cut into the plinth if fitted. See below for air circulation requirements. It is essential when installing your oven there is adequate air circulation around the appliance to ensure the correct operation of the appliance. Inadequate air circulation will greatly impair the operation of the appliance and can affect surround cabinets due to the rise in temperature.
- Page 38 Adjusting the shelf position.
- Page 39 Information for domestic ovens(www.diy.com) Symbol Value Unit Model identification DMF90CL Type of oven Built-in electric oven Mass of the appliance 58.5 Number of cavities Heat source per cavity Electricity (electricity or gas) Volume per cavity Top oven: 31 bottom oven: 57 Energy consumption Top oven: 0.58...
