NETWORK COLOR CAMERA

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS .......................... 2
2. LIST OF INCLUDED
COMPONENTS AND PARTS ............ 3
3. GENERAL DESCRIPTION ........................ 4
4. HANDLING PRECAUTIONS ..................... 4
5. NOMENCLATURE ..................................... 5
6. INSTALLATION ......................................... 6
7.1. Connection Example ............................ 8

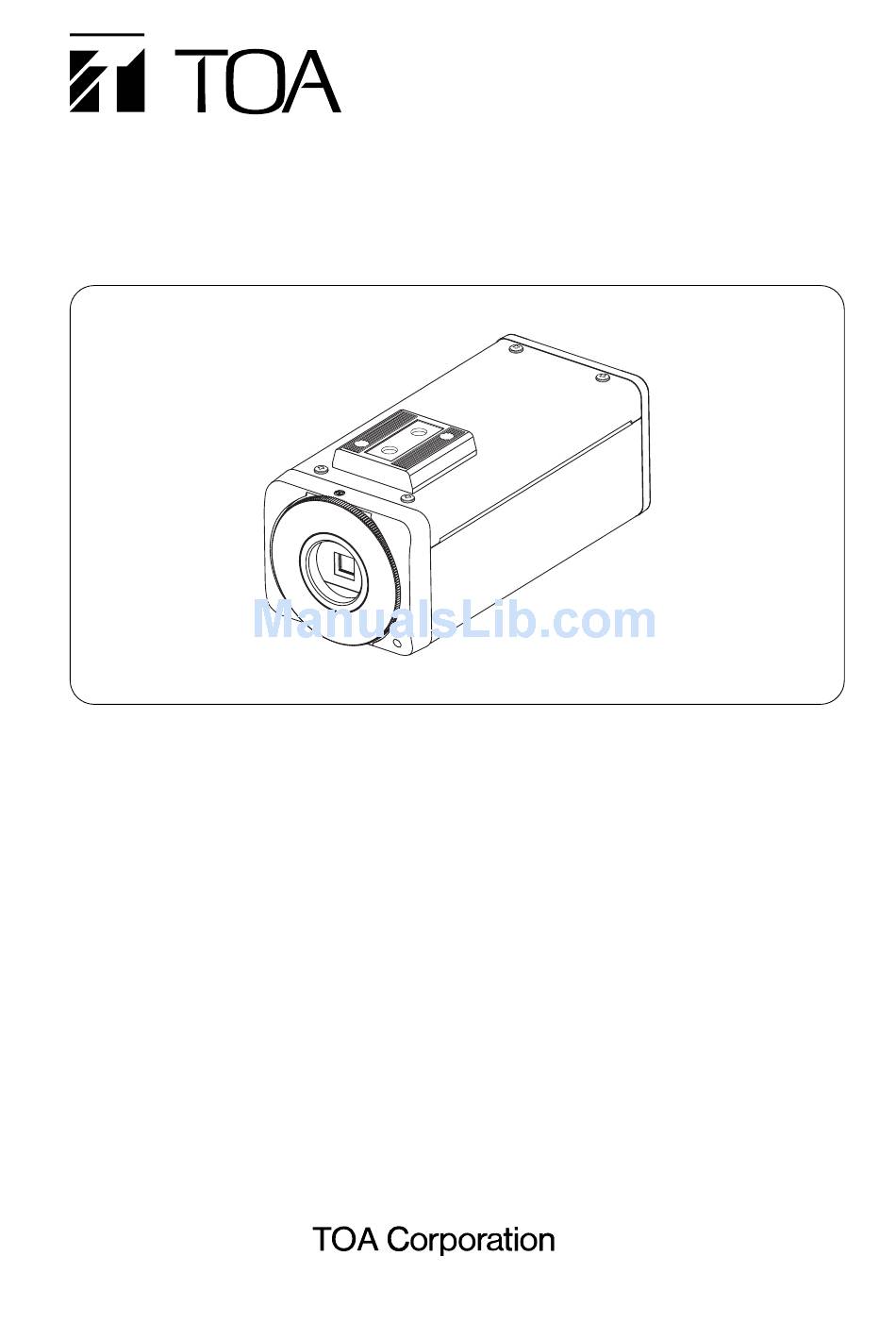

Thank you for purchasing TOA's Network Color Camera. Please carefully follow the instructions in this
manual to ensure long, trouble-free use of your equipment.
INSTRUCTION MANUAL
8. ADJUSTMENT ........................................... 9
9. ABOUT THE MODE SWITCH .................. 11
11. SETTING INITIALIZATION ....................... 13
12. TROUBLESHOOTING .............................. 14
13. SPECIFICATIONS .................................... 15
(for Software decoder) ................. 18
N-CC2360

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N-CC2360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa N-CC2360

Summary of Contents for Toa N-CC2360

  • Page 1: Table Of Contents

    Thank you for purchasing TOA's Network Color Camera. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. INSTRUCTION MANUAL N-CC2360 8. ADJUSTMENT ... 9 9. ABOUT THE MODE SWITCH ... 11 10. ABOUT THE CONTACT INPUT/ OUTPUT TERMINAL ...

  • Page 2: Safety Precautions

    1. SAFETY PRECAUTIONS • Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation. • Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or cautions regarding safety.

  • Page 3: List Of Included Components And Parts

    CAUTION When Installing the Unit • Avoid installing the unit in humid or dusty locations, in locations exposed to the direct sunlight, near the heaters, or in locations generating sooty smoke or steam as doing otherwise may result in fire or electric shock.

  • Page 4: General Description

    3. GENERAL DESCRIPTION 3. GENERAL DESCRIPTION The N-CC2360 Network Color Camera can be connected directly to a LAN (10BASE-T/100BASE-TX). Since it can simultaneously transmit MPEG-4 and JPEG data, smooth moving images can be monitored and high- definition still images monitored and recorded. The N-CC2360 can transmit bi-directional sub-band ADPCM or PCM quality voice.

  • Page 5: Nomenclature

    5. NOMENCLATURE [ N-CC2360 Rear panel 10/100M AUDIO MONITOR LINK FD/COL /ACT CONTACT RDY BUSY ERR 1 2 C 1 2 C (1) Power Input Terminal [24 V AC, 24 V DC] Connect this terminal to the 24 V AC or 24 V DC power supply.

  • Page 6: Installation

    Manual-iris or fixed iris lens Notes • Video lens is also displayed on the camera menu, however it cannot be used with the N-CC2360 camera. • When using the flicker-reduction function outdoors or under the fluorescent lighting, select the auto-iris lens.
  • Page 7 Notes • To avoid damaging the internal sections of the camera's lens mount, be sure that the lens flange is 6 mm or less thick as illustrated on the right. • C-mount lenses must be used in conjunction with the Lens Mounting Adapter CF-5 (optional).

  • Page 8: Connections

    When connecting the N-CC2360 network color camera to the hub, use CAT 5 or greater straight cable fitted with RJ45 connectors.

  • Page 9: Adjustment

    8. ADJUSTMENT 1. The RDY indicator lights when the power is supplied to the network camera. 2. Connect the monitor output terminal to the monitor so that the picture may be displayed on the monitor. 3. Set the Flicker-reduction switch of the mode switch to "ON" position if flicker is annoying. Flickering of the picture may interfere with the view under fluorescent lamps in the area where power frequency is 50 Hz (CU) or 60 Hz (PL).
  • Page 10 6. Adjust the iris level • When using the DC input type lens Adjust the iris level on the Camera menu screen's "IRIS" item. 6-1 Check to confirm that Camera menu setting items are selected as follows. Lens selection: Backlight compensation: "OFF" ( factory default: OFF ) 6-2 Moving the bar toward "HIGH"...

  • Page 11: About The Mode Switch

    Set each switch to the position that provides the best picture reproduction. Set each switch to the position that provides the best picture reproduction. Set each switch to the position that provides the best picture reproduction. [ N-CC2360 ] INITIALIZE F.ADJ...

  • Page 12: About The Contact Input/ Output Terminal

    10. ABOUT THE CONTACT INPUT/ OUTPUT TERMINAL • Contact Input There are two no-voltage contact inputs for connection of sensor trigger signals, etc. A contact can be automatically established between the transmitter and the network video receiver or network digital recorder when a signal enters the contact.

  • Page 13: Setting Initialization

    11. SETTING INITIALIZATION Network settings can be reset to their factory defaults. 1. Either press the Reset key or switch on the power again while holding down the INITIALIZE key. 2. Continue to press the INITIALIZE key until the Ready indicator has switched from flashing to steady-on mode.

  • Page 14: Troubleshooting

    12. TROUBLESHOOTING Symptom Possible cause Camera does not start. Power is not supplied. (RDY does not light.) [ When using a PoE-compatible hub for power supply ] • • • • [ When using 24V AC or 24V DC for power supply ] •...

  • Page 15: Specifications

    13. SPECIFICATIONS [N-CC2360 CU] 24 V AC, 50/60 Hz or 24 V DC or PoE (IEEE802.3af) Power Source Power Consumption 13 W (at 24 V AC), (8 W: PoE, 350mA: 24 V DC) Screwless connector (Solid cable: ø 0.4– ø 1.2 mm (AWG 26 – 16), Power Terminal Stranded cable: 0.3–1.25 mm...
  • Page 16 Network Image Transfer Rate Simultaneous Connected Number Other Functions Operating Temperature Operating Humidity Application Finish Dimensions Weight Note: The design and specification are subject to change without notice for improvement. MPEG-4: max. 4 Mbps 5 (MPEG-4: 4, JPEG: 1) In streaming mode: No limit (MPEG-4 only) Password authentication, Motion detection –...
  • Page 17 24 V AC, 50/60 Hz or 24 V DC or PoE (IEEE802.3af) Power Source Power Consumption 13 W (at 24 V AC), (8 W: PoE, 350mA: 24 V DC) Screwless connector (Solid cable: ø 0.4– ø 1.2 mm (AWG 26 – 16), Power Terminal Stranded cable: 0.3–1.25 mm VBS 1.0 V(p-p), 75 Ω, RCA pin jack, PAL...

  • Page 18: System Requirements

    Network Image Transfer Rate Simultaneous Connected Number Other Functions Operating Temperature Operating Humidity Application Finish Dimensions Weight Note: The design and specification are subject to change without notice for improvement. • System Requirements (for Software decoder) Personal Computer Main Specifications Required Web Browser Notes •...
  • Page 20 URL: http://www.toa.jp/ 133-12-993-90...
