Toa N-CC2564 Instruction Manual

Toa N-CC2564 Instruction Manual

Network combination dome camera
Hide thumbs Also See for N-CC2564:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual

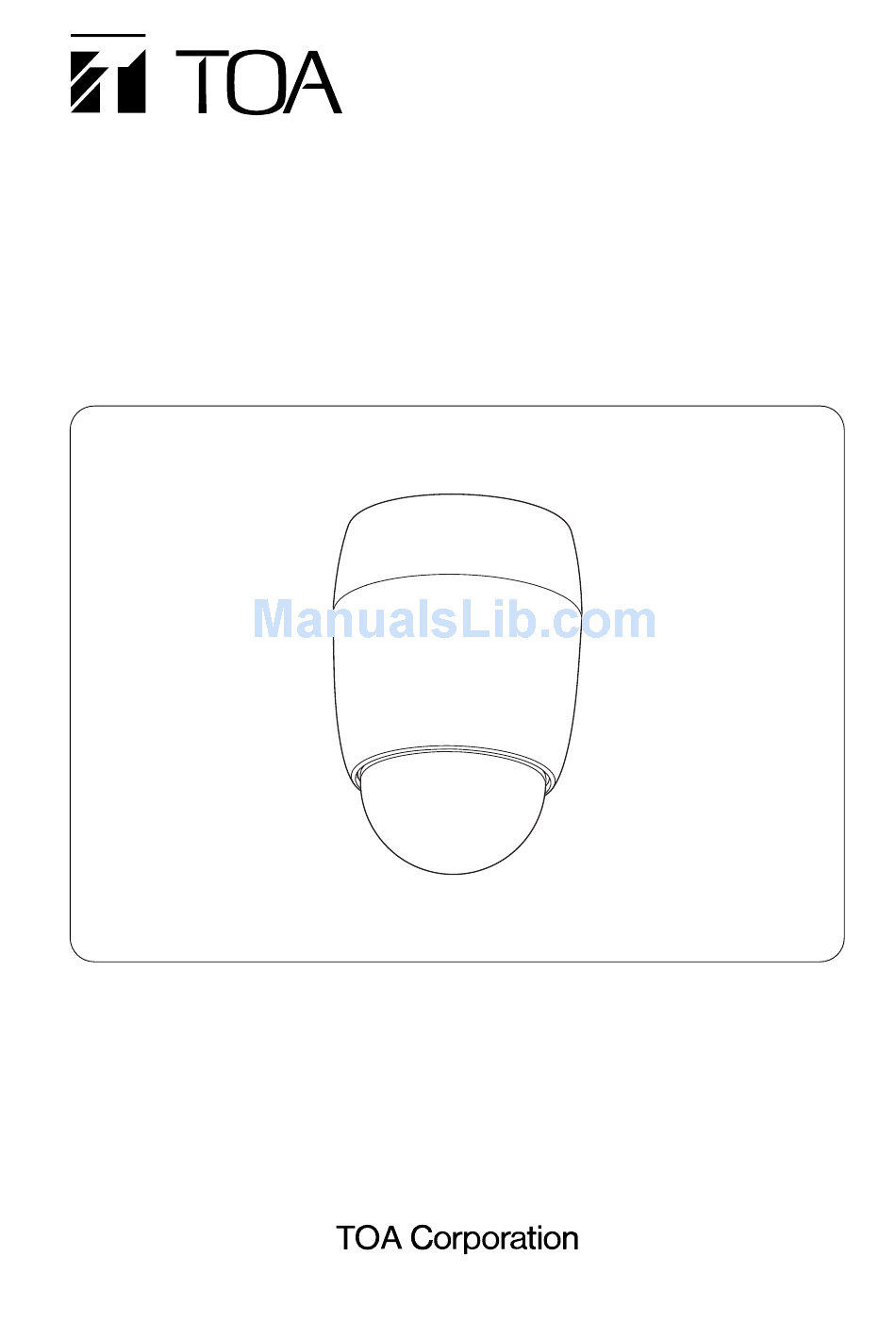

NETWORK
COMBINATION DOME CAMERA
Thank you for purchasing TOA's Network Combination Dome Camera. Please carefully follow the
instructions in this manual to ensure long, trouble-free use of your equipment.
INSTRUCTION MANUAL
N-CC2564

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N-CC2564 and is the answer not in the manual?

Questions and answers

Related Manuals for Toa N-CC2564

Summary of Contents for Toa N-CC2564

  • Page 1 NETWORK COMBINATION DOME CAMERA Thank you for purchasing TOA's Network Combination Dome Camera. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. INSTRUCTION MANUAL N-CC2564...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. SAFETY PRECAUTIONS 2. LIST OF INCLUDED COMPONENTS AND PARTS 3. GENERAL DESCRIPTION 4. FEATURES ... 5 5. HANDLING PRECAUTIONS 6. NOMENCLATURE 7. PRECAUTIONS WHEN INSTALLING THE UNIT 8. DIRECT CEILING MOUNTING 8.1. Mounting Example ... 9 8.2.

  • Page 3: Safety Precautions

    1. SAFETY PRECAUTIONS • Be sure to read the instructions in this section carefully before use. • Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. •...

  • Page 4: List Of Included Components And Parts

    CAUTION When Installing the Unit • To avoid electric shocks, be sure to switch off the power before power supply wiring work. Failure to do so may result in electrical shock. • Leave the installation of the unit to your TOA dealer because the installation requires expert experience and skills.

  • Page 5: General Description

    The N-CC2564 Network Combination Dome Camera can be connected directly to a LAN (10BASE- T/100BASE TX). Since it can simultaneously transmit MPEG-4 and JPEG data, smooth moving images can be monitored and high-definition still images can be monitored and recorded. The N-CC2564 can transmit sub-band ADPCM or PCM quality voice.
  • Page 6 downgrade the picture quality. • If there is a strong electric or magnetic field near the camera, such as television transmission antennas, motors or transformers, this may distort or roll the monitor picture. In such cases, run the entire wiring route through metal conduit tubing.

  • Page 7: Nomenclature

    • Contact Output 1 (AUX1) This open collector output allows the external device connected to this terminal to control other connected equipment, depending on the camera settings. Max.16A 60Hz N-CC2564 model CAMERA DOME COMBINATION NETWORK • Contact Output 2 (AUX2)
  • Page 8 [ Top view of Camera Unit ] (12) Safety Wire Connects to the base unit. (13) DIP Switch (SW1) Not used. (14) DIP Switch (SW2) Used to perform various settings of the camera. (Refer to p. 32; DIP Switch Settings.) * Parts (16)-(18) are for maintenance purposes (firmware update) only.

  • Page 9: Precautions When Installing The Unit

    7. PRECAUTIONS WHEN INSTALLING THE UNIT WARNING Notes • Mount the camera to a heavy-duty ceiling surface (such as concrete ceiling). • When mounting directly to the ceiling (such as a double ceiling) not strong enough to support the weight of the mounted camera, use the optional C-BC511A Ceiling Mounting Bracket.

  • Page 10: Mounting Procedures

    1. Mount the base unit to the ceiling. First fix two of the base unit mounting holes as shown below. Since no mounting screws are supplied with the camera, prepare them separately. Use screws with a nominal diameter of 4 mm and a length of over 25 mm. Note: When routing cables over the ceiling surface, securely fix all 4 of the base unit mounting holes to the ceiling.
  • Page 11 4. Perform DIP SW settings on the camera unit. (For details, please refer to p. 32; "DIP Switch Settings.") 5. Attach the safety wire from the camera unit to the wire mounting hole of the base unit. Wire mounting bracket 6.
  • Page 12 Note Take care not to pinch the safety wire between the camera unit and base unit to avoid damage to the camera. 8. Turn the camera unit clockwise pushing it up to the base unit until it locks into place. Push up Note When mounting the camera unit to the base unit,...
  • Page 13 10. Align the positioning mark on the ceiling mounting cover with that on the base unit. 11. Turn the ceiling mounting cover clockwise pushing it up to the base unit until it locks into place. Tighten Align the marks Ceiling mounting cover C-BC511C C-BC511C-S...

  • Page 14: Mounting The Camera To A Weak Ceiling Panel

    9. MOUNTING THE CAMERA TO A WEAK CEILING PANEL Use the optional C-BC511C or C-BC511C-S Ceiling Mounting Cover and the optional C-BC511A Ceiling Mounting Bracket. Notes • Use the cover and the anchor whenever the space between suspended ceiling panel and upper ceiling exceeds a height of 100 mm.

  • Page 15: Mounting Procedures

    1. Make a mounting hole of ø140 mm in the ceiling panel. 2. Install the anchor bolt for ceiling mounting bracket and anchor bolt for safety wire into the upper ceiling. Notes • The anchor bolt for ceiling mounting bracket must be aligned with the center of the mounting hole of ø140 mm in the ceiling panel, and must not project from the ceiling surface.
  • Page 16 6. Attach the supplied safety wire to the base unit. Use screws M3 x 8 tightened to the base unit. 7. Attach the safety wire connected to the base unit to the ceiling mounting bracket. 8. For subsequent procedures, follow the steps 1 – 11 on p. 10 – 13.

  • Page 17: Flush Ceiling Mounting

    10. FLUSH CEILING MOUNTING • Use the optional C-BC511U or C-BC511U-S Flush Ceiling Mounting Bracket. • Flush mounting can be used to reduce the camera's exposed area. Use the optional C-BC511U or C- BC511U-S Flush Ceiling Mounting Bracket when mounting cameras to gypsum board ceilings or other weak ceiling panel materials in which mounting screws cannot be securely inserted.

  • Page 18: Mounting Procedures

    1. Make a mounting hole of ø230 mm in the ceiling panel. 2. Install the anchor bolt for flush ceiling mounting bracket and anchor bolt for safety wire into the upper ceiling. • The anchor bolt for flush ceiling mounting bracket must be aligned with the center of mounting hole of ø230 mm in the ceiling panel.
  • Page 19 5. Attach the flush ceiling mounting bracket to the end of safety wire. Notch 6. Release the lock on the hinged portion of the base unit and connect the composite cable and power cable extending from the base unit. (For details, please refer to p. 30; "CONNECTIONS.") Open Note: Squeeze the cables after connection completion.
  • Page 20 mounting hole in the ceiling panel, then secure the bracket using the three supplied ceiling mounting screws. Turning the mounting screws clockwise clamps the ceiling holding plate to the ceiling panel. Ensure that the notch in the bracket is pointing in the camera's intended direction. Flush ceiling mounting bracket Ceiling holding plate...
  • Page 21 Align the positioning mark on the camera unit with that on the flush ceiling mounting bracket. 11. Perform steps 7 – 9 on p. 12 – 13. 12. Align the positioning mark on the supplied dome cover with the notch in flush ceiling mounting bracket. 13.

  • Page 22: Ceiling Suspension

    11. CEILING SUSPENSION Use the optional C-BC511P Ceiling Suspension Bracket in combination with the optional C-BC511C or C- BC511C-S Ceiling Mounting Cover when suspending the camera from a ceiling. Notes • Be sure to mount the ceiling suspension bracket using the supplied safety wire. •...

  • Page 23: Mounting Procedures

    1. Determine the suspending position, then make a mounting hole of ø50 – 60 mm in the ceiling plate. 2. Install the anchor bolt for safety wire into the upper ceiling. Note: If an existing anchor bolt is available nearby, it can be substituted for the anchor bolt for safety wire. 3.
  • Page 24 Note: Ensure that the installed suspension pipe faces in the intended camera orientation. Footing 6. Install the suspension plate behind the ceiling panel. • When installing in double-constructed ceilings: Place the suspension plate across two C-channel bars with its hole aligned with the corresponding hole in the ceiling panel.
  • Page 25 • Align the screw installed in the saddle bracket with the hole in the pipe. • Attach the saddle bracket so that the orientation of its oval holes is as shown in the figure. Note: Ensure that the saddle brackets are securely fixed without any play. 11.
  • Page 26 14. Attach the base unit (with footing) to the suspension pipe. M5 x 20 Safety screw • Run the camera mounting screw head (2 screws) through the oval hole in the saddle bracket, and slide it in the direction indicated by the arrow, then tighten the camera mounting screws. •...
  • Page 27 15. Release the lock on the hinged portion of the base unit and connect the power and composite cables to the base unit. (For details, please refer to p. 30; "CONNECTIONS.") Open 16. Lock the hinged portion of the base unit and secure the remaining two mounting holes. Close 17.

  • Page 28: Wall Mounting

    12. WALL MOUNTING Use the optional C-BC511W Wall Mounting Bracket and optional C-BC511C or C-BC511C-S, Ceiling Mounting Cover. Note Be sure to use the specified screws to mount the Network Combination Dome Camera and wall mounting bracket, and ensure that they are securely mounted without any play. 12.1.
  • Page 29 Mounting screw Mounting screw Notes • Since no mounting screws are supplied with the camera, prepare them separately. • Use screws with a nominal diameter of 4 mm. 4. Perform steps 11 – 16 on p. 25 – 27. 5. Attach the top cover. Insert one top cover's clicks into the other top cover's slots. Mount the top cover by inserting the tabs of one half of the cover into the slots of the other half.

  • Page 30: Connections

    13. CONNECTIONS Terminal No. Alarm input terminal Alarm1 Alarm2 Alarm3 Alarm4 Alarm5 Alarm6 Alarm7 Alarm8 Power cable; Connects to the power supply. (24V AC 50/60 Hz) LAN adapter Network terminal Video output terminal Audio input terminal Audio output terminal Alarm input terminal Auxiliary Contact output terminal Auxiliary Contact output Terminal No.

  • Page 31: Connection Example

    Connections to the network system differ depending on the devices to be used. For details, refer to the descriptions about system examples in the setup manual. N-CC2564 Network Combination Dome Camera Note: Shielded (STP) network cables must be used with this unit to ensure compliance with EMC standards.

  • Page 32: Dip Switch Settings

    DIP SW1 No.1 Unused (ON) Unused (OFF) No.2 No.3 Unused (OFF) No.4 Unused (OFF) Unused (OFF) No.5 Unused (OFF) No.6 Unused (OFF) No.7 Unused (OFF) No.8 Note: If the DIP switches are not set correctly, the camera does not operate correctly. DIP SW1 DIP SW2 DIP SW3...

  • Page 33: Communication Speed Setting Switch (Dip Switch 2: No. 1 - 2)

    14.1.1. Communication Speed Setting Switch (DIP switch 2: No. 1 – 2) Avoid changing the default settings. ("38,400 bps" is the default.) No.1 No.2 38,400 19,200 9,600 4,800 14.1.2. OSD Switch (DIP switch 2: No. 3) When this switch is set to the OFF position, the initial screen does not disappear until communications with other equipment are established following initial operation after the power has been switched ON.

  • Page 34: Specifications

    16. SPECIFICATIONS [N-CC2564 CU] Power Source Power Consumption Video Output Audio Input Audio Output Alarm Input Auxiliary Contact Output Camera Image Device Resolution S/N Ratio Synchronization Minimum Required Illumination Backlight Compensation Dynamic Range High-Sensitivity Function White Balance Flicker Reduction No. of Preset Positions...
  • Page 35 Network I/F 10BASE-T/100BASE-TX, Auto-Nego/Manual: RJ45 connector Network Protocol TCP, UDP, SIP, RTP, IGMP, HTTP, ARP, DHCP, DNS, SNTP, FTP, SMTP Video Compression/ MPEG-4: D1 (720 x 480), Half D1 (720 x 240), QVGA (320 x 240) Resolution JPEG: Frame Rate MPEG-4: (D1, max.
  • Page 36 Power Source Power Consumption Video Output Audio Input Audio Output Alarm Input Auxiliary Contact Output Camera Image Device Resolution S/N Ratio Synchronization Minimum Required Illumination Backlight Compensation Dynamic Range High-Sensitivity Function White Balance Flicker Reduction No. of Preset Positions Automatic Operation Timer Other Function Lens...

  • Page 37: System Requirements (For Software Decoder)

    Network I/F 10BASE-T/100BASE-TX, Auto-Nego/Manual: RJ45 connector Network Protocol TCP, UDP, SIP, RTP, IGMP, HTTP, ARP, DHCP, DNS, SNTP, FTP, SMTP Video Compression/ MPEG-4: D1 (720 x 576), Half D1 (720 x 288), CIF (352 x 288) Resolution JPEG: Frame Rate MPEG-4: (D1, max.
  • Page 40 URL: http://www.toa.jp/ 133-22-018-0A...
