27 August, 2013, www.brodit.com, © 2013 Brodit AB

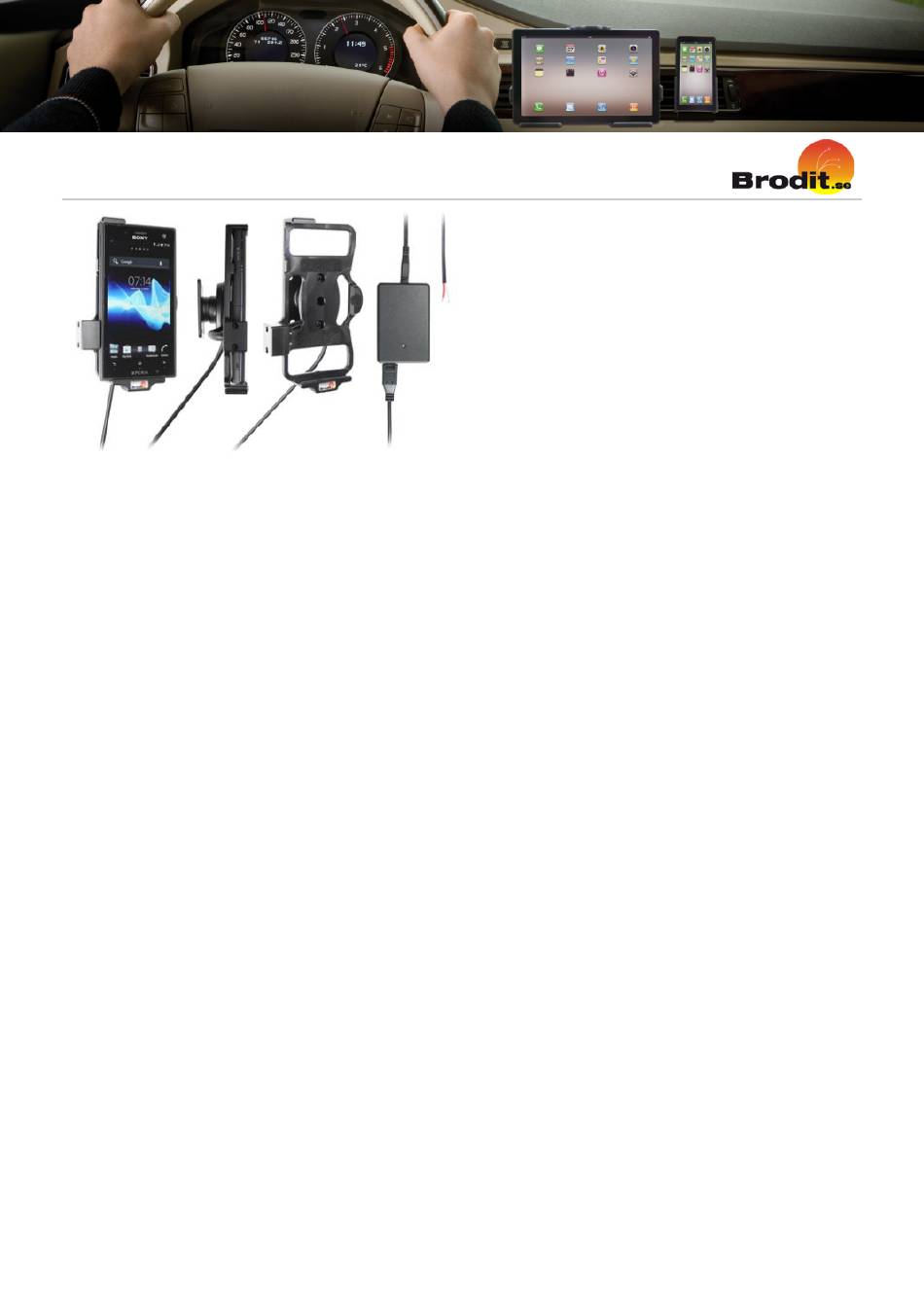

Product 513424
513424 Active holder for fixed installation. With tilt swivel, with Molex adapter system. 2A charger.
An active holder which is to be connected inside the dashboard, this gives a discreet, neat installation without
cables hanging over the interior!
You can choose to use the holder as an active holder for charging of your device only, or to connect an adapter
to the Molex connector for additional features. Then you can use the holder also for power supply of a GPS
receiver or other own solutions (can not be used for data communication or audio connection).
12/24 Volt. The product is E-approved. Connect the power cable with a 2 A fuse. 2 A charger. Professional
installation recommended.
The holder is attached onto a tilt swivel and can be adjusted in order to avoid light reflection. Attach onto ProClip
Mounting Platform.
EAN: 7320285134249
Item no 513424 fits:
Sony Xperia Acro S (For all countries)
1 (2)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Brodit 513424
Summary of Contents for Brodit 513424
- Page 1 27 August, 2013, www.brodit.com, © 2013 Brodit AB Product 513424 513424 Active holder for fixed installation. With tilt swivel, with Molex adapter system. 2A charger. An active holder which is to be connected inside the dashboard, this gives a discreet, neat installation without...
- Page 2 INSTALLATION INSTRUCTIONS Please read all of the instructions and look at the pictures before attaching the holder. Important Note: The charger unit is fused internally with 2 A automotive re-settable thermal fuse, but if an external fuse is to be installed then connect a 2 A fuse holder and fuse inline with the Red wire close to the power source.
