Brodit 546682 Installation Instructions

Download this manual

Product 546682

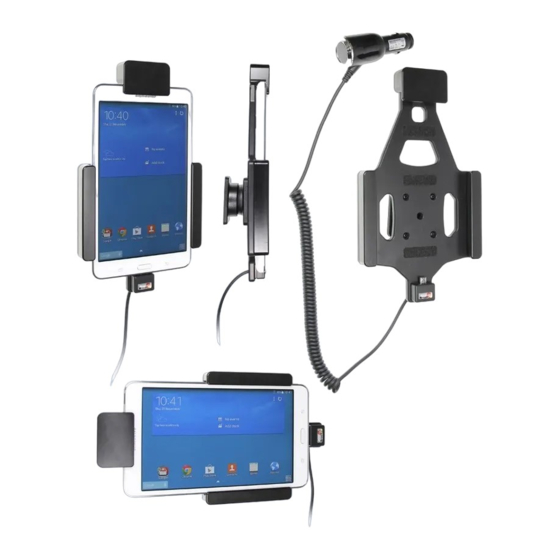

546682 Holder for Locking Active holder with cig-plug. With spring stud locking.

This holder is to be used when you want to have your Galaxy Tab 4 7.0" extra securely in place and still have it

easy accessable.

The holder is equipped with a spring stud locking device. The holder is mounted onto a tilt swivel. This mean that

you can adjust the angle in order to avoid light reflection on the screen. You can easily switch between portrait

and landscape mode by turning the holder into desired position.

Tablets (Surfpads) should not be installed onto a car's dashboard if they block the view or block key controls.

ProClip (Brodit's vehicle mounting bracket) is designed for installation of smaller devices like mobile phones and

GPS devices, ProClip is not designed for large devices like tablets. In some vehicles the ProClip has an extra firm

fit and can then be used also for installation of a tablet. If you want to place a tablet onto the car's dashboard,

each combination of tablet-car must be examined in detail by you in order to determine if such an installation is

possible in the specific case. Consideration should be given to the position and how firmly the ProClip is in place,

as well as the size of the tablet you wish to use. Brodit will not give any recommendations for such installations.

An installation of a tablet onto a vehicle's dashboard is always done on the customer's own responsibility. Brodit

recommends to use tablets on the car's headrest, installed onto a Brodit headrest mount.

EAN: 7320285466821

Item no 546682 fits:

Samsung Galaxy Tab 4 7.0 SM-T230 (For all countries)

Samsung Galaxy Tab 4 7.0 SM-T231 (For all countries)

Samsung Galaxy Tab 4 7.0 SM-T235 (For all countries)

Page 1 Consideration should be given to the position and how firmly the ProClip is in place, as well as the size of the tablet you wish to use. Brodit will not give any recommendations for such installations.
Page 2 INSTALLATION INSTRUCTIONS Please read all of the instructions and look at the pictures before attaching the holder. 1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel.
