- Page 1 User and Service manual GL-series Sausage Grill...
-
Page 2: Table Of Contents
Version 2.0 – APRIL 2016 Table of content Table of content ....................2 Introduction ....................... 3 In General ......................3 3.1. Manufacturer ......................3 3.2. Name of the grill ...................... 3 3.3. Machine tag ......................4 Outline and utilization ..................4 4.1. -
Page 3: Introduction
Introduction Original instruktion manual This manual is a translation of the original instruction manual from FKI Fast Food Teknik of the Sausage Grill GL-series, - in the following mentioned as the grill. Purpose The purpose of this manual is to ensure proper installation, use, handling and maintenance of the grill. -
Page 4: Machine Tag

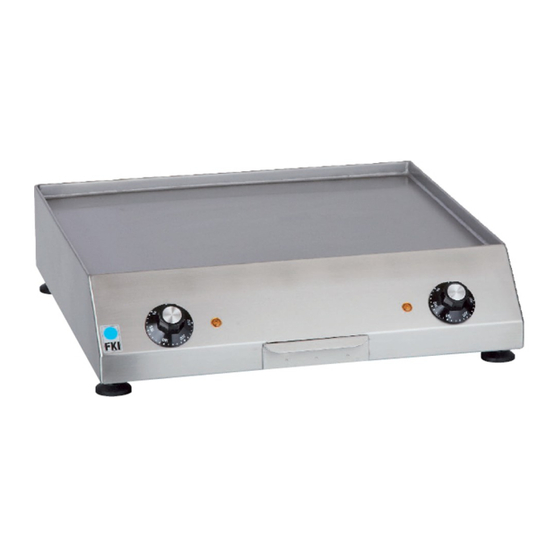

3.3. Machine tag The machine tag is placed on the rear. Outline and utilization 4.1. General description The grill is overall made in stainless steel with rounded edges, for easy cleaning. The con- tains a cabinet with fully welded steel frying pan , 2 or 3 heat zones with thermostatic con- trol (50-250°C) and can be with fat drawer for collecting residual frying fat. -
Page 5: Electricity
4.3.2. Electricity Connection voltage: 240V AC Frequency: 50/60 Hz Consumed power and current Model Current [Amp.] Power [kW] GL 9520/30/40/60 GL 9580 11,7 GL 3060/4060/4660 GL6036/6040/6046/6060 GL 8046 11,7 GL 8060/5567 GL 5945 GL 7945 11,7 Operation The grill is divided in 2 or 3 heating zones, right/left and middle or front/back. They are controlled induvially by a thermostat witch is switched on by turning the knob clockwise and put it on the desired temperature by the mark on the front. -
Page 6: Installation And Connection
Installation and connection Installation 6.1. The grill is designed to be placed on a table or counter top. The grill has adjustable legs. Connection 6.2. The grill shall be connected to a 240V power outtake with earth connection. Maintenance and repair Cleaning 7.1. -
Page 7: Spare Parts
7.2.1. Spare parts... - Page 8 Pos Part number Pcs. Description 83-08855 2(3) Knob 83-07507 2(3) Glow lamp Ø9 mm yellow 400V 72-03626 Power cord 3x1,0mm² 2,0m DK plug 72-03627 Power cord 3x1,0mm² 2,5m SCHUKO plug 72-03656 Power cord 3x1,0mm² 2,5m SIHF SCHUKO plug 83-08767 Heat element model GL9520V GL3060 83-08768 Heat element model GL9530V 83-09699...
-
Page 9: Termination
Termination 8.1. Destruction The contact grill is marked with the above recycling symbol (EC directive 2002/96/EC) and must be disposed in accordance with your country’s order. This means that when the product becomes obsolete, you should dispose it after the local municipality’s rule, e.g. -
Page 10: Eu Declaration Of Conformity
EU Declaration of conformity 9.2. EF-overensstemmelseserklæring 2006/42/EF bilag II A Fabrikant: Navn FKI Fast Food Teknik A/S Adresse Byghøjvej 5, Verninge Postnr. og by 5690 Tommerup Samler af det tekniske dossier (person bemyndiget af fabrikanten): Navn Adresse Postnr. og by Erklærer hermed at maskine type:... -
Page 11: Wiring Diagram 2 Zones
Wiring diagram 2 zones 9.3. -
Page 12: Wiring Diagram 3 Zones
Wiring diagram 3 zones 9.4. Pos. Part no. Pcs. Description 72-03665 Power cord 3 x 1,0 mm² 72-03508 Connection block 2-polet porcelain 83-08206 2(3) Thermostat 50-250°C 1-pole 83-07507 2(3) Glow lamp Ø9 mm yellow 400V 2(3) Heat element (Model specific see spare parts list)
