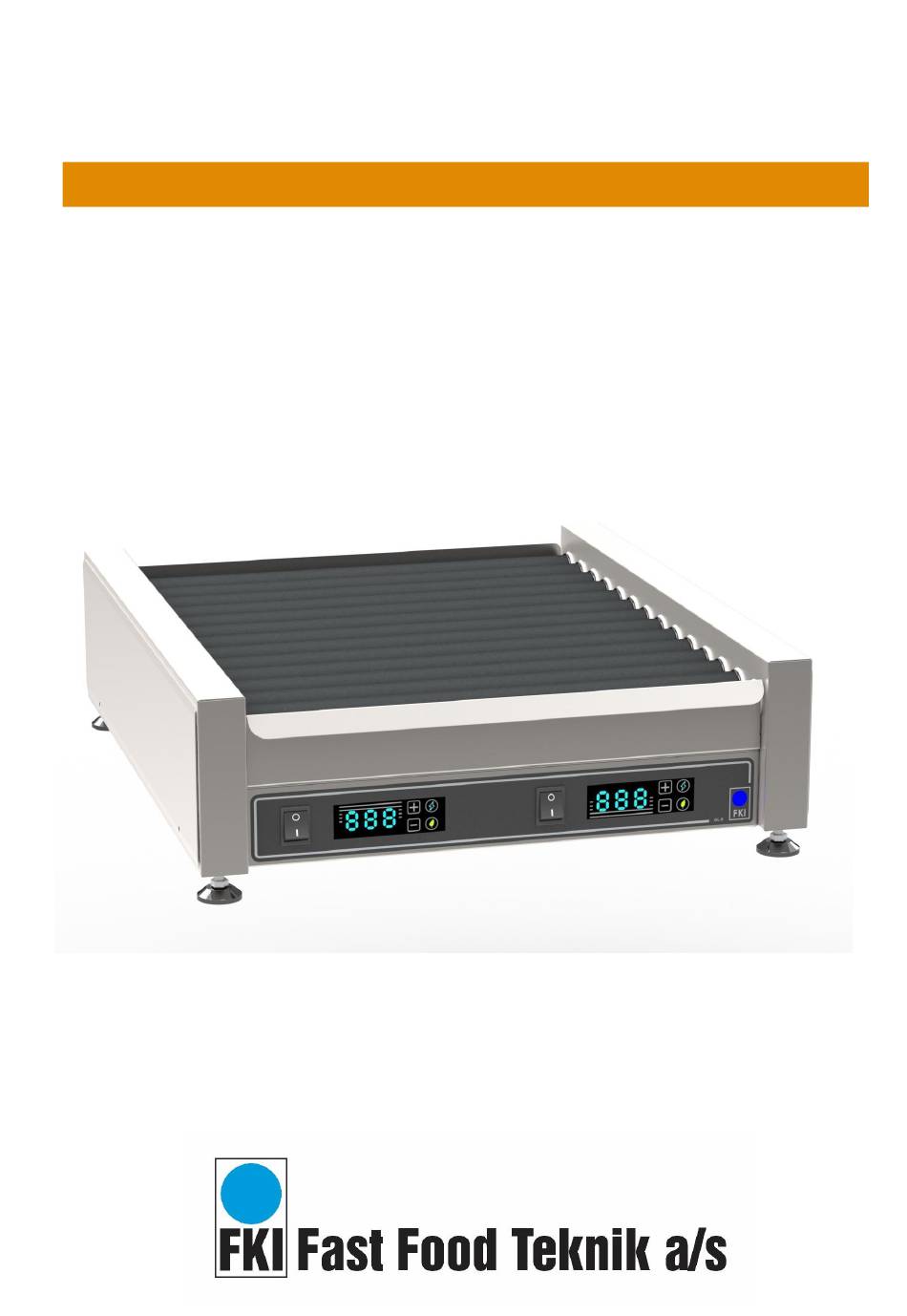

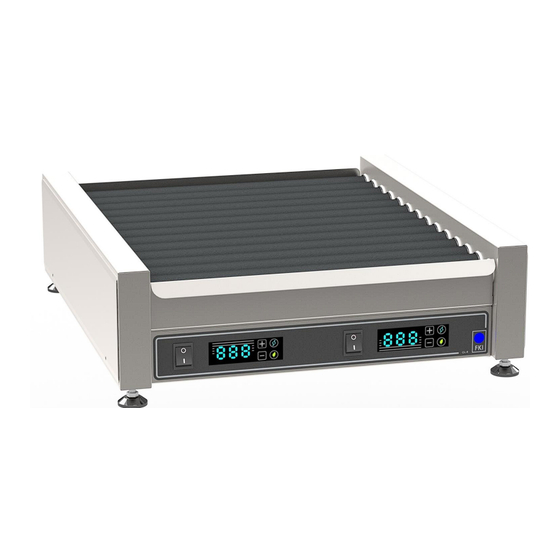

- Page 1 Instructions for use FKI Roller Grill Advanced RG - series Type code: ARG-22 Version 11.0...
-
Page 2: Table Of Contents
Contents Introduction ............................... 4 General .............................. 4 Appliance description ........................4 Manufacturer ..........................4 Appliance label ..........................5 Technical specifications and power consumption ............... 5 Modification ..........................8 Safety ................................. 8 Personal safety equipment ........................ 8 Potential hazards ..........................8 Who may use the appliance ...................... - Page 3 Packaging ............................23 When the appliance is no longer required ..................23 EU DECLARATION OF CONFORMITY ......................24...
-
Page 4: Introduction
1 Introduction Original user instructions These instructions are FKI Fast Food Teknik's original instructions for the RGxxRxxxx Roller Grill. The purpose of these instructions These instructions are intended to ensure the correct installation, use, handling and maintenance of the Roller Grill. -
Page 5: Appliance Label
Appliance label 1.1.3.1 Type code: ARG-22 Technical specifications and power consumption Explanation of the Roller Grill product name: Appliance model designation: RG 6R T A O S 45 / 2 The Roller Grill’s full designation is Roller Grill Number of rollers e.g. 6 rollers Teflon coated rollers Aluminium rollers Oval rollers... - Page 6 1.1.4.1 Dimensions and weight Model designation Width x depth x height Weight in kilograms RG6R22 300 x 265 x 170 mm RG6R45 530 x 265 x 170 mm RG6R65 725 x 265 x 170 mm RG6R102 1100 x 265 x 170 mm RG8R22 300 x 350 x 170 mm RG8R45...
- Page 7 1.1.4.2 Power Connection voltage: 230 V AC Connection frequency: 50/60 Hz Recorded output Recorded current Minimum fuse for Model designation [kW] [Amp] installation RG6R22 0.95 RG6R45 0.95 RG6R65 0.95 RG6R102 1.25 RG8R22 1.25 RG8R45 1.25 RG8R65 1.25 RG8R102 1.65 RG10R22 1.55 RG10R45 1.55...
-
Page 8: Modification
These instructions and the appliance itself are provided with important safety information that must always be read and observed at all times. FKI Fast Food Teknik a/s disclaims any and all liability for non- compliance with these safety instructions, for inappropriate use of the appliance or the use of incorrect set- tings. -
Page 9: Transport/Installation/Fixation
Transport/installation/fixation Transport The appliance is delivered secured to a transport pallet, and should only be transported in the same way if moved. WARNING: Do not move the appliance during operation. Moving and setting up the appliance must be performed by two or more people! RISK of injury! Wear protective gloves and safety footwear during unpacking and installation. -
Page 10: Installation
Installation Place the appliance on a suitable table top or similar at an appropriate working height. The appliance is op- erated from the front. The appliance has adjustable legs and is intended for placement on a table or coun- ter. Connection of the appliance should be carried out by an authorised electrician. -
Page 11: Operation
Operation The appliance must be supervised during use and must be switched off at its main switch if left. The appliance is intended for food preparation only. Do not apply liquids or other substances with a focal point below 300°C. Temperature on appliances with Teflon-coated tubes must not exceed 250°C peak and 220°C continuous. -
Page 12: Operation
3 Operation Before first use Before start-up, remove all packaging and protective plastic from the appliance and dispose of it in accordance with currently applicable regulations (see section 5). Carefully read section2 about safety before connecting the appliance. Before start-up, clean the appliance as shown in section. Front display The front of the Roller Grill is fitted with a switch and a thermostat regulator for each heating zone. -
Page 13: Operating The Timer (Optional Upgrade)
Pressing on “ECO” (the “leaf” label”) will change the appliance temperature to 60°C until “ECO” is pressed again, after which the appliance will return to the set temperature. Operating the timer (optional upgrade) All buttons on the panel are timers. The two buttons closest to the operator have an additional function, which is triggered when held down for 3 or 6 seconds. -
Page 14: Repairs And Spare Parts
Once the timer is at the required setting, press the button with the flashing white light. The buttons will now change colour to yellow. These represent five-minute blocks. In other words, there will be 7 yellow buttons the first time the settings are changed. The timer is for 30 minutes. When you have finished configuring the settings, press the button that is flashing white a final time. -
Page 15: Timer Advanced
82-06510 ADJUSTABLE LEG, M8 72-01324 CIRCUIT BOARD ELECTRONIC THERMOSTAT 83-08155 CONNECTOR STRIP, 5-POLE 2.5MM2 WITH WIRE PROTECTION 88-00231 SOLID STATE RELAY 4-32VDC 48-660VAC 60A 72-00112 POWER SUPPLY 240VAC-24VDC RS-15-24 74-01002 ON/OFF SWITCH 2-POLE, BLACK, 230V 83-10000 GEAR MOTOR SAIA GL-R (DOUBLE) 230V 83-09998 SENSOR GL90- LOWER, ø6X220mm PT100 Timer Advanced... -
Page 16: Wiring Diagram
Wiring diagram 3.6.3.1 1 Zone... - Page 17 3.6.3.2 2 Zones...
-
Page 22: Cleaning
4 Cleaning General Remember to use personal safety equipment, see 2.1 Before using the appliance for the first time, wipe all surfaces that will be in contact with food with a damp cloth. Do not use cleaning products that contain acid. Daily cleaning It is important to clean the roller grill daily once it has cooled to <50°C. -
Page 23: Disposal
5 Disposal Packaging The packaging should not be left in the environment but should be disposed of in accordance with local regulations. When the appliance is no longer required The Roller Grill is labelled with a recycling symbol in accordance with Danish Executive Order 148 of 8 Feb- ruary 2018 (Electronic Waste Executive Order/Danish-Elektronikaffaldsbekendtgørelsen). - Page 24 6 EU DECLARATION OF CONFORMITY...
- Page 26 Byghøjvej 5 · Verninge · DK-5690 Tommerup · Denmark · Tel. +45 6475 1066 · info@fki.dk · www.fki.dk...
