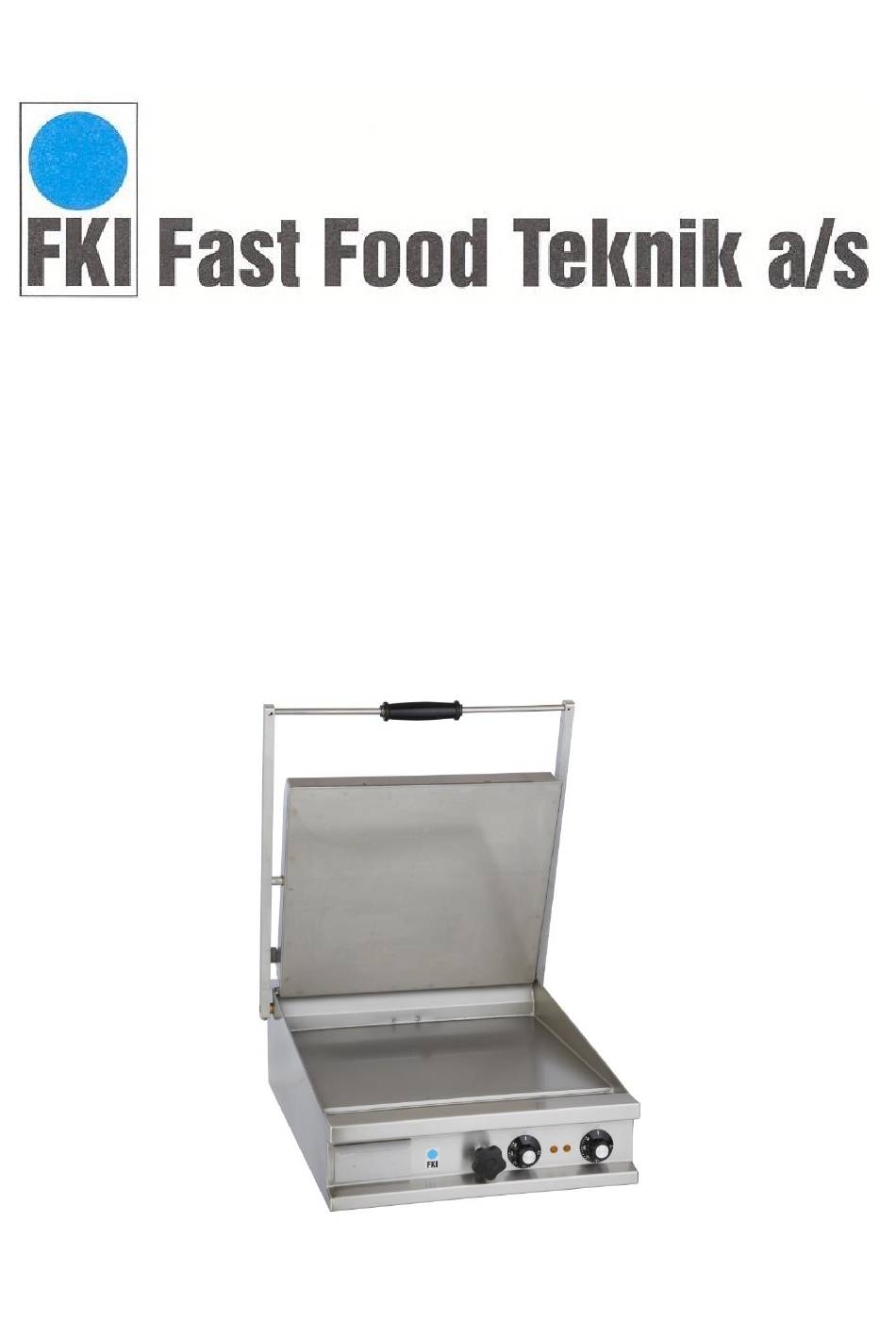

- Page 1 User and Service manual GL 2002 Contact Grill Version 2.0 – JAN 2016...
-
Page 2: Table Of Contents
Table of content Table of content ....................... 2 Introduction ....................... 3 In General ......................3 2.1. Manufacturer ......................3 2.2. Name of the contact grill ..................3 2.3. Machine tag ......................4 Outline and utilization ..................4 3.1. General description ....................4 3.2. -
Page 3: Introduction
Introduction Original instruktion manual This manual is a translation of the original instruction manual from FKI Fast Food Teknik of the Turbo Contact Grill GL 2002, - in the following mentioned as the contact grill. Purpose The purpose of this manual is to ensure proper installation, use, handling and maintenance of the contact grill. -
Page 4: Machine Tag
2.3. Machine tag The machine tag is placed on the rear. Outline and utilization 3.1. General description The contact grill is a manually operated contact grill for quick frying of burgers, steaks and more. The temperature of both pans is regulated by an analog thermostat between 50-250 °C. -
Page 5: Operation
Operation 4.1. Quick-guide The contact grill is equipped with 2 heating zones, right and left, which are operated by a thermostat for respectively right and left sides. The contact grill is turned on by turning the thermostat to the desired temperature. The thermostat regulates the temperature of both the upper and lower pan. -
Page 6: Connection
Note that there must be free passage of air behind the contact grill, under the contact grill and in the front of the contact grill Connection 5.3. The connection cable shall be fitted with an appropriate 400V plug (not part of the delivery) and connected to a wall switch Connection without plug is only allowed after a safety switch. -
Page 7: Specifications For Spare Parts
6.3.1. Specifications for spare parts... - Page 8 Pos. Part no. Pcs. Description 15-02002 Cabinet complete welded 83-09074 Heat element 1,5 kW 400V upper 83-09073 Heat element 1,5 kW 230V upper (Norway) 83-08749 Cover plate 83-08889 Tightening bracket 78-04580 Nut M6 83-08747 Bracket for chain/spring 83-09901 Adjustment knob 83-08748 Guide for spring 83-08780...
-
Page 9: Termination
Termination 7.1. Destruction The contact grill is marked with the above recycling symbol (EC directive 2002/96/EC) and must be disposed in accordance with your country’s order. This means that when the product becomes obsolete, you should dispose it after the local municipality’s rule, e.g. -
Page 10: Ec Declaration Of Conformity
EC declaration of conformity EF-overensstemmelseserklæring 2006/42/EF bilag II A Fabrikant: Navn FKI Fast Food Teknik A/S Adresse Byghøjvej 5, Verninge Postnr. og by 5690 Tommerup Erklærer hermed at maskine type: - Turbosteger GL 2002 Er fremstillet i overensstemmelse med følgende EF direktiver: 2006/42/EF Maskindirektivet og følgende nationale standarder og tekniske specifikationer:... -
Page 11: Accesories
Accesories... -
Page 12: Wiring Diagrams
Wiring diagrams 9.1. 400V... - Page 13 Pos. Part no. Pcs. Description 72-03528 Connection cable 4 x 2,5 mm² 72-03509 Connector 3-pole ceramic 83-09083 Heat element 1,8 kW 400V lower 83-09074 Heat element 1,5 kW 400V upper 82-06577 Thermostat 3-polet with capillary tube 83-07507 Lamp yellow 72-03508 Connector 2-pole ceramic...
- Page 14 230V Norway...
- Page 15 Pos. Varenummer Antal Benævnelse 72-03528 Connection cable 4 x 2,5 mm² 72-03509 Connector 3-pole ceramic 83-09085 Heat element 1,8 kW 230V lower 83-09073 Heat element 1,5 kW 230V upper 82-06577 Thermostat 3-polet with capillary tube 83-07507 Lamp yellow 72-03508 Connector 2-pole ceramic...
- Page 16 Byghøjvej 5, Verninge – DK-5690 Tommerup – Danmark Tlf. +45 6475 1066 – info@fki.dk – www.fki.dk...
