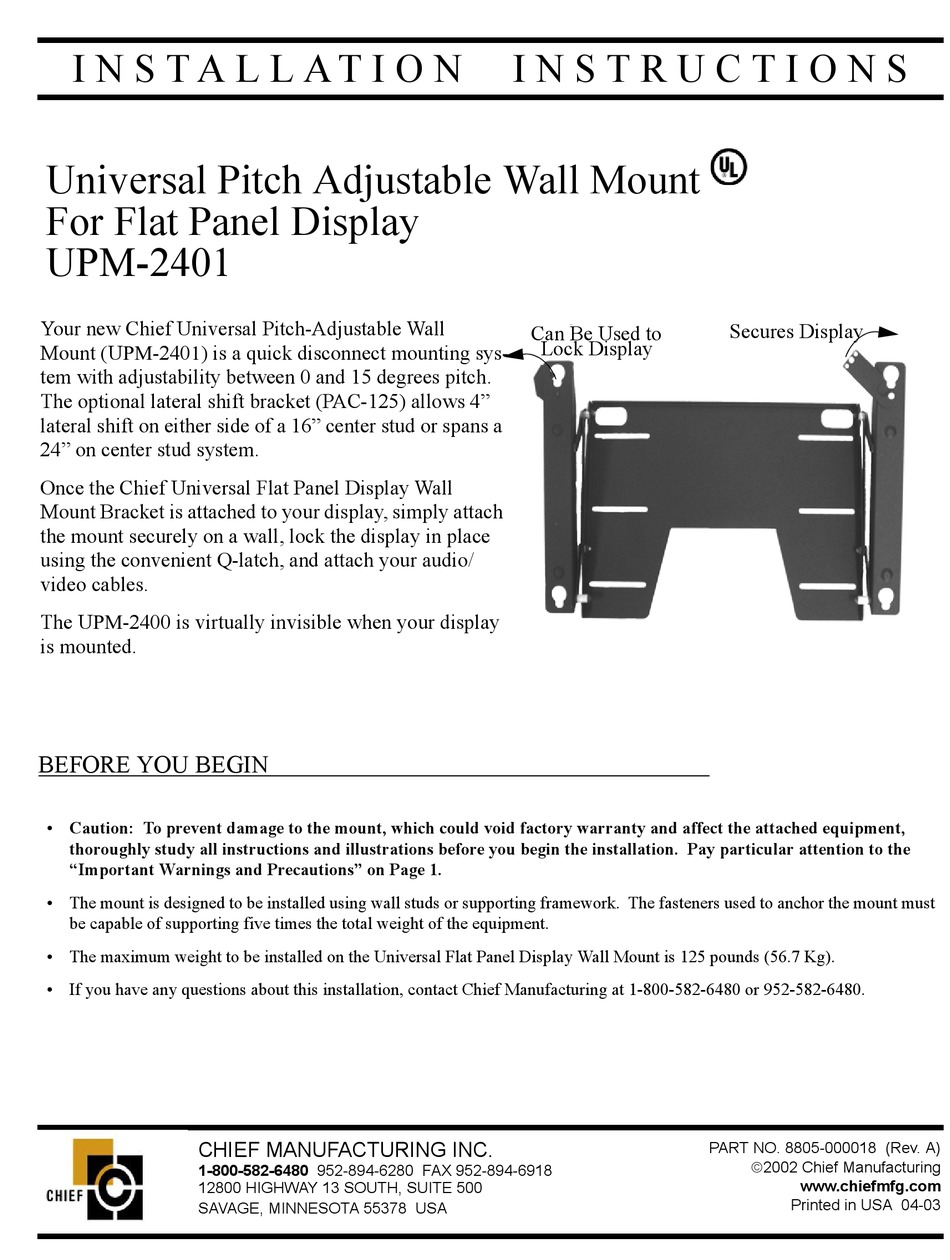

I N S T A L L A T I O N
Universal Pitch Adjustable Wall Mount
For Flat Panel Display
UPM-2401
Your new Chief Universal Pitch-Adjustable Wall
Mount (UPM-2401) is a quick disconnect mounting sys-
tem with adjustability between 0 and 15 degrees pitch.
The optional lateral shift bracket (PAC-125) allows 4"
lateral shift on either side of a 16" center stud or spans a
24" on center stud system.
Once the Chief Universal Flat Panel Display Wall
Mount Bracket is attached to your display, simply attach
the mount securely on a wall, lock the display in place
using the convenient Q-latch, and attach your audio/
video cables.
The UPM-2400 is virtually invisible when your display
is mounted.
BEFORE YOU BEGIN
• Caution: To prevent damage to the mount, which could void factory warranty and affect the attached equipment,
thoroughly study all instructions and illustrations before you begin the installation. Pay particular attention to the
"Important Warnings and Precautions" on Page 1.
• The mount is designed to be installed using wall studs or supporting framework. The fasteners used to anchor the mount must
be capable of supporting five times the total weight of the equipment.
• The maximum weight to be installed on the Universal Flat Panel Display Wall Mount is 125 pounds (56.7 Kg).
• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480 or 952-582-6480.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
12800 HIGHWAY 13 SOUTH, SUITE 500
SAVAGE, MINNESOTA 55378 USA
I N S T R U C T I O N S
Can Be Used to
Lock Display
Secures Display
PART NO. 8805-000018 (Rev. A)
2002 Chief Manufacturing
www.chiefmfg.com
Printed in USA 04-03
