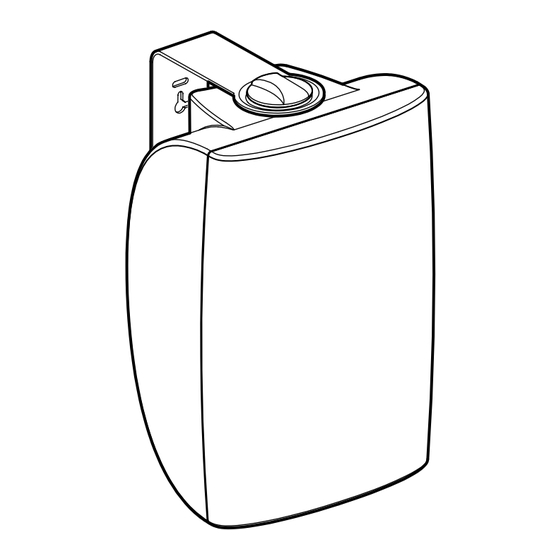

- Page 1 CS-S Series Surface Mount Loudspeakers CS-S4 4” SURFACE MOUNT LOUDSPEAKER CS-S6 6.5” SURFACE MOUNT LOUDSPEAKER Installation Guide CS-S Series Installation Guide V1.1...
- Page 2 Before use check and set tap switch under grille to proper setting for your system. EXPLODED VIEW Snap fit Grille Port plug Euro block Baffle Bracket screws Bracket TAP SETTINGS CS-S6 CS-S4 100 V 70 V 25 V 100 V 70 V 25 V 16 ohm 16 ohm 2.5W 1.3W...
- Page 3 INSTALLATION Step 1 Step 4 Remove speaker from box. Remove grille and set tap switch to proper setting. Tap switch is preset to highest 100 V position. Step 2 Step 5 Mount bracket to wall. For increased weather resistance in outdoor applications, press port plug into port on the baffle.
- Page 4 Step 7 Step 8 Slide speaker into bracket and tighten bracket screws. Aim speaker and tighten bracket screws. www.cloud.co.uk www.cloudusa.pro CS-S Series Installation Guide V1.1...
