AsReader ASR-R202G Series Quick Start Manual

Hide thumbs Also See for ASR-R202G Series:

Advertisement

Quick Links

Download this manual
ASR-R202G
Series
Quick Start
Guide
Manual
Updated: 4/9/2019

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASR-R202G Series and is the answer not in the manual?

Questions and answers

Related Manuals for AsReader ASR-R202G Series

Summary of Contents for AsReader ASR-R202G Series

  • Page 1 Updated: 4/9/2019 ASR-R202G Series Quick Start Guide Manual...
  • Page 2 ASR-R202G Parts – Page 1/2 Font-view Back-view...

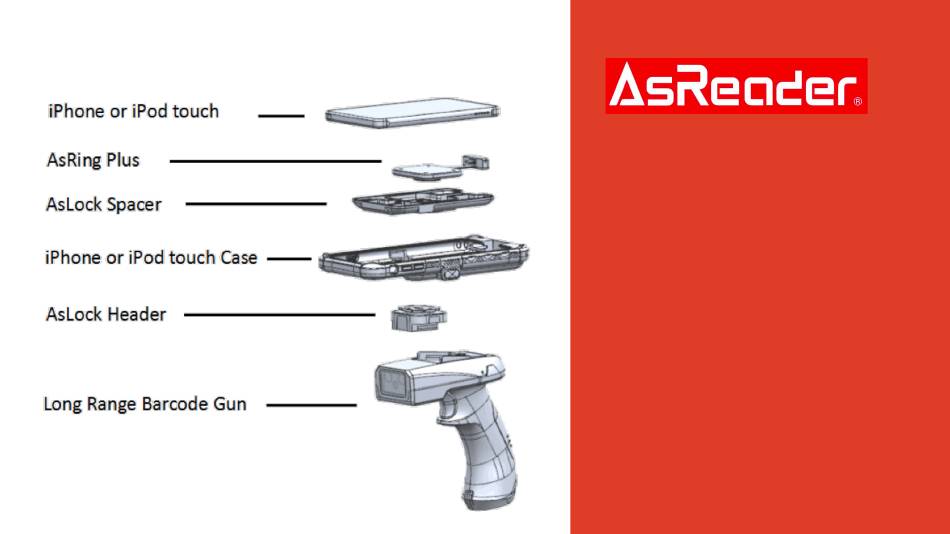

  • Page 3 How to Assemble – Page 1/7 (Preparation) This section is for assembling the ASR-R202G parts for use. Please prepare the following parts to assemble: a) Gun (ASR-R202G) b) AsRing+ (ASA-102R) c) AsLock Header (ASA-R250G-HDL) d) AsLock Spacer (ASA-102R-SPL) e) A compatible iOS Device f) Case* (ASC-xxx-x) *Silicone ASC-P6-W case shown.
  • Page 4 How to Assemble – Page 2/7 (Connect Header to Gun) Slide Header firmly onto the ASR-R202G as shown (Steps 1-2). Step 1 Step 2 Step1 Connector Step2 Connector PUSH FIRMLY Face-Down Face-Up Face-Down Face-Up Connection Point Connector Point Top View of Gun Top View of Gun Slide Header onto Gun Make sure Header is firmly...
  • Page 5 How to Assemble – Page 3/7 (Combine AsRing+ and Spacer) Set up the AsRing+ and Spacer as shown (Steps 1-4). Step2 Step1 Step3 Step4 Step 3 Step 4 Step 1 Step 2 Place AsRing+ on top of Spacer. Slide top of AsRing+ into Spacer. Hardly press the bottom to fit the Make sure none of the AsRing+ sides AsRing+ into place.

  • Page 6: How To Assemble

    How to Assemble – Page 4/7 Attach the assembled AsRing+/Spacer to the iOS device as shown (Steps 1-2). Step 0 Step 1 Step 2 Prepare the assembled Connect Lightning Connector Make sure the parts are AsRing+/Spacer and the iOS to iOS device. securely connected.
  • Page 7 How to Assemble – Page 5/7 (Using Silicone-only Case) Silicone Case: If a Silicone-only case is being used, please follow the instructions below (Steps 1-3). Silicone-only Case Silicone-only Case Step1 Step2 Silicone-only Case Step3 Insert device into case Slide remaining sides Make sure device is correctly starting at the bottom.
  • Page 8 How to Assemble – Page 6/7 (Using Hybrid Case) Hybrid Case: If a Hybrid case is being used, please follow the instructions below (Steps 1-5). If using an iPod Touch with an ASC-P5H, ASC-P7H, or ASC-P7PH case, make sure Step 0 on ‘How to Assemble – Page 4/7’ was followed before proceeding. Step 1 Hybrid Case Step 2...
  • Page 9 How to Assemble – Page 7/7 (The final step) Finally, attach the magnetic part of the AsRing+ to the top of the Header as shown (Steps 1-4). Step1 Step2 Step3 Step4 Magnetic connection of AsRing+. Rotate clockwise until you hear a Picture of completely Magnetic connection of Header.
  • Page 10 ASR-R202G Apps – Page 1/1 Essential apps for the ASR-R202G and AsRing+ are the following: The LongRange2D App allows the user to scan barcodes. Also can 1) LongRange2D (Gun Demo App) export the data to .csv files. 2) AsRing+ (for AsRing+ Firmware Updates) 3) AsTagFinder* The AsRing+ Firmware Update App can be downloaded from APPStore.

  • Page 11: How To Charge

    How to Charge – Page 1/1 2) Connect the 1) Please prepare the microUSB-to-USB following parts: cable to a powered charging l ASR-R202G (to be port via the USB charged) connection. l microUSB-to-USB cable (Apple chargers are recommended.) Step 4 Step 1 Step 2 Step 3...
  • Page 12 Basic Use Guide – Page 1/3 Before using the ASR-R202G, please complete the previous steps: 1. Assemble the ASR-R202G 2. Download the apps 3. Charge the ASR-R202G Next, turn the ASR-R202G power on by pressing and holding the ‘POWER’ button. The Gun should vibrate and make a beep sound.
  • Page 13 Basic Use Guide – Page 2/3 This section only applies to the Export barcode data to .csv file ASR-R202G for barcode use. Select ‘Barcode Scan’ on the main page and pull the Gun trigger (or tap ‘Start Scan’) to begin scanning barcodes. List of Scanned Barcodes Select Encoding mode Rescan Time:...
  • Page 14 Basic Use Guide – Page 3/3 More settings can be changed by selecting ‘Settings’ or ‘Barcode Option’. Main Menu Settings Main Menu Barcode Options...

  • Page 15: Troubleshooting Guide

    Troubleshooting Guide – Page 1/1 If the Gun has issues such as a beep sound or vibration that does not stop, even when the ‘POWER’ button is pressed, please use the ’RESET’ button. *Use a ballpoint pen or something similar to press it. ‘RESET’...
