Full Gauge Controls MICROSOL II plus Manual page 2

Manual activation time for solar backing 1
Time that solar backing 1 is active when it is activated manually. Once this period of time is over, solar
backing 1 returns to function automatically.
Operation mode for solar backing 2
This function enables configuring the mode of operation of the solar backing 2 output. The modes are:
" 0 " - thermostat for refrigeration
" 1 " - thermostat for heating
" 2 " - thermostat for refrigeration hitched to the event schedule
" 3 " - thermostat for heating hitched to the event schedule
" 4 " - cyclic timer with initial state on
" 5 " - cyclic timer with initial state on hitched to the event schedule
Hysteresis of the solar backing 2 operation
Adjustment of the hysteresis for the activation temperature setpoint for solar backing 2.
Minimum setpoint of the solar backing 2 operation
Lower limit, the purpose of which is to avoid the accidental regulation of temperatures far below the
setpoint of solar backing 2.
Maximum setpoint of the solar backing 2 operation
Upper limit, the purpose of which is to avoid the accidental regulation of temperatures far above the
setpoint of solar backing 2.
Cyclical timer time on
This function enables setting the time during which the cyclic timer will keep its output on.
Cyclical timer time off
This function enables setting the time during which the cyclic timer will keep its output off.
Method for linking the solar backings to the events schedule
This function enables setting to which of the 4 daily events each solar backing output will be hitched. The
possible modes are:
" 0 " - Aux 1 hitched to events 1,2,3,4
Aux 2 hitched to events 1,2,3,4
" 1 " - Aux 1 hitched to event 1
Aux 2 hitched to events 2,3,4
Indication offset for the temperature of the sensor 1
This function allows the indication offset for the temperature of sensor 1 to be adjusted (collectors).
Indication offset for the temperature of the sensor 2
This function allows the adjustment of the indication offset for the temperature of sensor 2 (reservoirs/pool).
Sensor 3 temperature display offset 3
This function allows the indication offset for the temperature of sensor 3 to be adjusted (solar backings).
Address of the instrument on the network RS-485
Address of the instrument in the network for the communication with the
Remarks: in a single network, there cannot be more than one instrument with the same address.
IMPORTANT: ( * ) The value adjusted in function
MICROSOL II plus
function . As such,
guarantee its perfect functioning.
4.2.3 - Events schedule operating mode
In this option, you can choose how the events planner will operate.
Weekly programming - In this mode, the instrument can configure up to 4 events for every day of the
week.
Programming for business days - In this mode, the instrument keeps the events the same for
business days (Monday through Friday), and allows the programming of different events for Saturday
and Sunday.
Daily programming - In this mode, the instrument keeps the events the same for all of the days of the
week.

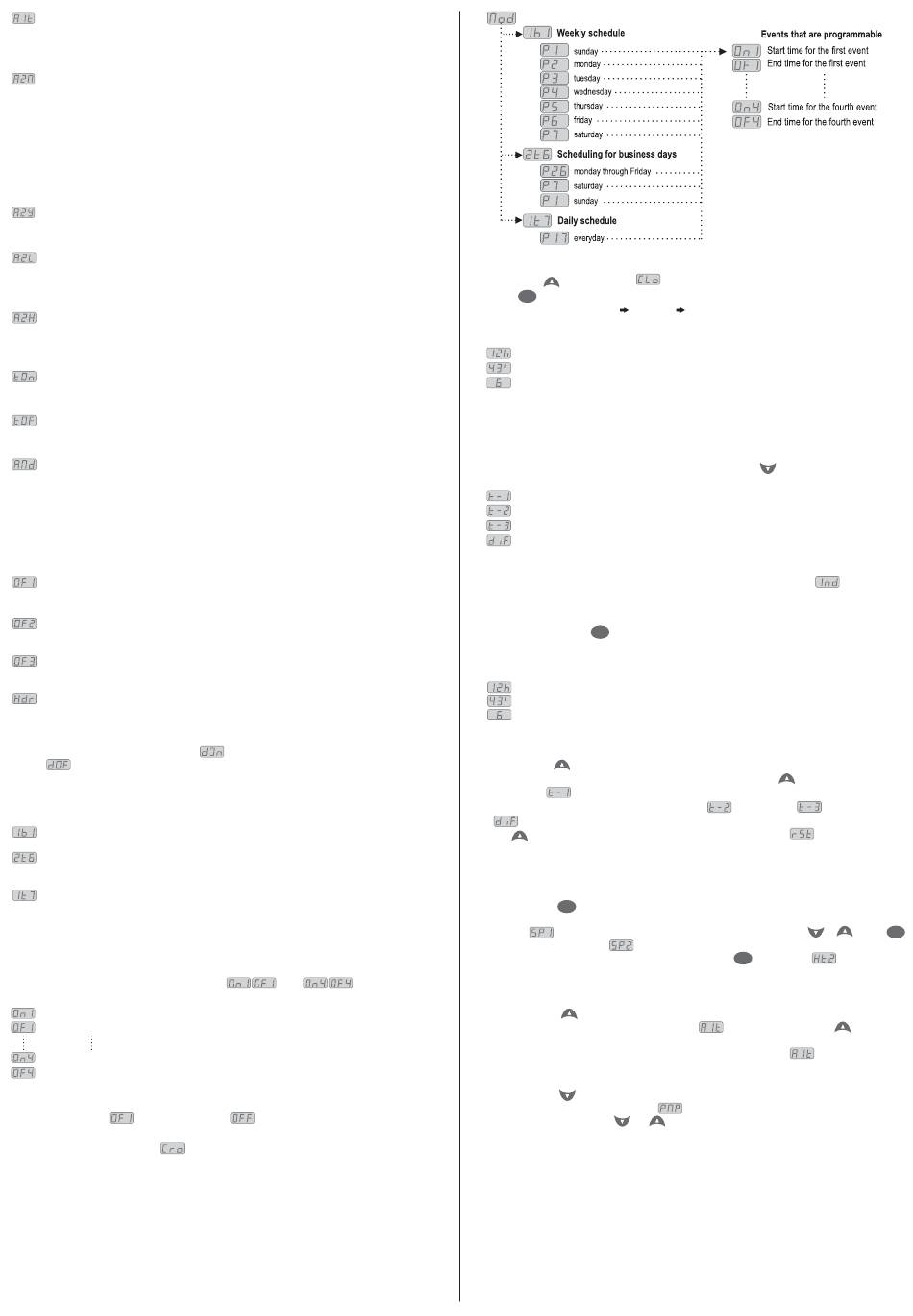

4.2.4 - Programming of the events schedule
In this option, you can enter the values for the time periods for each event. The entry of the data depends
on the operating mode configured. You can configure up to four events for each day. For each event, the
start and end time are configured through the options
Start time for the first event
End time for the first event
Start time for the 4º event
End time for the 4º event
If you do not need to use the four events, you can configure it to be deactivated, and all you have to do is
increase the off time ( for example) until the
configure an event to overlap that it begins in one day and it finishes in the other, and for that you should
increase the off time until the option
and 00min. According to the operating mode configured, the following scheduling possibilities may be
presented.
" 2 " - Aux 1 hitched to events 1,2
Aux 2 hitched to events 3,4
" 3 " - Aux 1 hitched to events 1,2,3
Aux 2 hitched to event 4
®
SITRAD software .
should be obligatorily greater than what is adjusted in
does not allow invalid adjustments to be made in order to
up to , where:
indication appears. It is also possible to
appears and adjust an event for the next day to start at 00h
4.2.5 - Adjustment of the current time and day of the week
Press the key until the message
Hit key . The settings will appear in the following order:
SET
HOURS MINUTES
Ex.: 12h43min - Friday
Hours
Minutes
Day of the week
5. FUNCTIONS WHIT FACILITATED ACCESS
5.1 - Visualize other temperatures
To alternate between viewing the temperature of sensor 1, sensor 2, sensor 3 or the temperature
difference between sensor 1 and 2 (differential temperature), press
shown in the display:
temperature in the sensor 1
temperature in the sensor 2
temperature in the sensor 3
differential temperature (S1-S2)
The temperature selected will be shown in the display for fifteen seconds, and after that period of time has
ended, the preferential indication will be shown again (as adjusted in the parameter
5.2 - Visualize the current time
Quickly pressing the key , you can visualize the time set in the controller, the current time will be
SET
shown, followed by the minutes and then the day of the week.
Ex.: 12h43min - Friday
Hours
Minutes
Day of the week
5.3 - Visualize minimum and
Pressing the key , you can visualize the maximum and minimum temperatures for each sensor, as well
as the minimum and maximum temperature differential. On pressing key
will be shown showing the temperature of sensor 1 and soon after its minimum and maximum
temperatures, and then the temperatures of sensor 2 (
( ).
If key remains pressed, the values shall be restarted and the message
display.
5.4 - Set the operating temperatures of the solar backings
(SETPOINTS)
Pressing the key SET for two seconds may adjust the operating temperature for solar backing 1 and solar
backing 2, as well as the overheating temperature for sensor 2 (reservoir/pool). A message will be
displayed , adjust the operating temperature for solar backing 1 using keys
to confirm. Then the message will be displayed, adjust the operating temperature for solar backing
2, pursuant to what is described above. After pressing the key
to adjust the overheated temperature for sensor 2.
5.5 - Manual activation of solar backing 1
Pressing the key for ten seconds manually activates the output for solar backing 1. This will be
deactivated after the time adjusted in the function
seconds, the manual activation is disabled, and solar backing 1 resumes automatic operation.
To deactivate the manual activation, all you have to do is configure function
5.6 - Manual activation of the water circulation pump
By pressing key for 10 seconds, one can choose the mode of operation of the water circulation
pump. After pressing the key, the message
options listed below, using keys and
appears in the visor.
DAY OF THE WEEK
until the desired temperature is
maximum temperatures
(short touch), the message
), of sensor 3 ( ) and the differential
shall be shown on the
e
SET , the message
. lapses. By pressing key
with the value " 000".
will be displayed and the user may then choose from the
:
).
, press SET
will be displayed
again for 10
