Full Gauge Controls MT-512Ri LOG Manual

1. DESCRIPTION

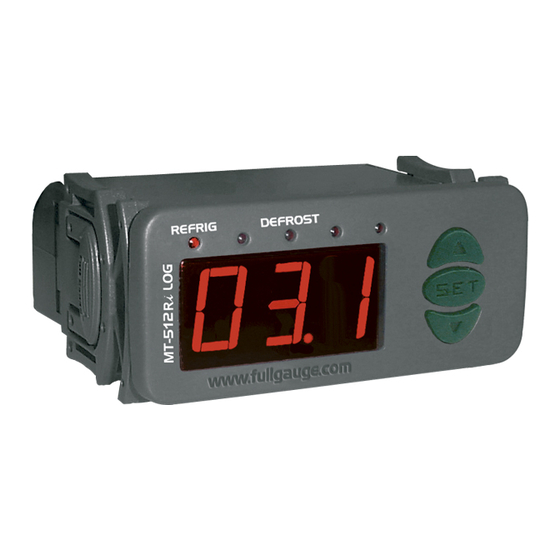

The MT-512Ri LOG is a temperature controller and indicator, with a joined cyclical timer. Controls
cooling and defrost through compressor shutdowns. It also has an internal datalogger and a serial
output for communication with the SITRAD . ®
Product complies with NSF (United States).
2. APPLICATIONS
• Counters
• Cooled chambers
3. TECHNICAL SPECIFICATION
- Power supply: MT-512Ri LOG 115 or 230 Vac ±10%(50/60 Hz)
MT-512RiL LOG 12 or 24 Vac/dc
- Control temperature: -50 to 75.0ºC / -58 to 167°F
- Load current: NO 16(8)A/250Vac 1HP
NC 8A/250Vac
- Dimensions: 71 x 28 x 71mm
- Operating temperature: 0 to 50 ºC / 32 to 122°F
- Operating humidity: 10 to 90% RH (without condensation)
4. CONFIGURATIONS
4.1 - control temperature adjust (SETPOINT)
- Press for 2 seconds until appears
SET
The set control temperature will appear.
- Use the and keys in order to change the value and, when ready, press
4.2 - To enter the function menu
Press and, at the same time for 2 seconds until
appears, press (short touch) and enter the code (123) through the keys
SET
press the key . Through the keys and
SET
them. To leave the menu and return to normal operation, press
4.3 - Functions
Entry of access code
Advanced configuration functions
Adjustment of clock and date
4.4 - Parameters table
Description
Fun
Datalogger operation mode
Indication offset
Minimum setpoint allowed for the end user
Maximum setpoint allowed for the end user
Control differential (hysteresis)
Delay to turn the cooling output on
Cooling time (defrosts interval)
Defrosting time
Initial state up on energizing the instrument
Indication of the temperature locked during defrost
Delay on the activation of the instrument
Additional time at the end of the first cycle
Datalogger sampling interval
Variation of the temperature to force data recording
Variation of the output to force data recording
Memory overwriting?
Address of the instrument on the network RS-485
5. PARAMETERS DESCRIPTION
Datalogger operation mode
This indicates how the data storage device operates:
Always OFF
Always ON
Manual operation
Offset indication
Allows it to compensate for eventual temperature misreading, usually due to a sensor replacement.
Minimum setpoint allowed to the end user
Electronic limit whose purpose is prevent that too low setpoint temperatures are regulated.
Maximum setpoint allowed to the end user
Electronic limit whose purpose is prevent that too high setpoint temperatures are regulated.
Control differential (hysteresis)
It is the difference of temperature (hysteresis) between to turn OFF and turn ON the refrigeration output.
MT-512Ri LOG
DIGITAL CONTROLLER FOR COOLING WITH
NATURAL DEFROST THROUGH COMPRESSOR
SHUTDOWN AND INTERNAL DATALOGGER
Ver.08
and then release the key.
to record.
SET
appears, letting off on it instantly. When
and
access the other functions and do the same to adjust
(Long touch) until
SET
Min Max Unit
0 2 -
°C / °F
-5.0 / -9 5.0 / 9
-50 / -58 75.0 / 167 °C / °F
-50 / -58 75.0 / 167 °C / °F
0.1 / 1 20.0 / 40 °C / °F
0 999 sec.
1 999 min.
0 999 min.
0 - cooling 1 - defrost -
0 - no 1 - yes
-
0 240
min.
0 240 min.
1 999 sec
0 / 0 10.0 / 17
°C / °F
0 1
-
0 - no 1 - yes
-
001 247 -
Delay to turn the cooling output on
It is the minimum time that
the next stop.
Cooling time
It is the time which compressor will turn on and turn off only by sensor temperature . After passed this
time, the controller will enter in defrost mode.
Defrosting time
It is the minimum time that the cooling output will keep off to make natural defrost. After passed this time,
the controller will enter in cooling mode.
Initial state up on energizing the instrumen
Indicates what mode the controller will work when turned on :
Cooling
Defrost
Indication of the temperature locked during defrost
This function prevents the visualization of temperature elevation during defrost, maintaining the last
temperature indication prior to defrost. At the beginning of the refrigeration cycle, a normal temperature
indication will again take place after fan delay.
No
Yes
Delay on the activation of the instrument
When the instrument is powered on, its control is kept disabled during a time, delaying the start of process.
During this time, it works only as temperature indicator.
Additional time at the end of the first cycle
Complement time at the first refrigeration cycle to certify that the first defrost cycle do not be started very
early.
Datalogger sampling interval
Time period in which the controller will register a sample of the
to confirm
Variation of the temperature to force data recording
appears.
Temperature difference to forces the recording of data in the memory, independently of the sampling time
configured at F13. To desable this function, just decrease the value until the message
the display.
Variation of the output to force data recording
Indicates whether the change in the cooling output will force the recording of data in memory regardless
of the time of sampling set in F13:
OFF
ON
Default
2 Memory overwriting?
0 / 0
This allows you to start overwriting data from datalogger memory beginning when the memory is full.
-50.0 / -58 This prevents the latest data recorded from equipment being erased first.
75.0 / 167
No
1.0 / 2
Yes
20
240
Address of the instrument on the network RS-485
30
This is the device address for communication with Sitrad software. Note: You cannot have two or more
0 - cooling
devices with the same address in the network.
0 - no
0
0
6. FUNCTIONS WITH FACILITATED ACCESS
30
6.1 - Maximum and minimum temperature logs
0 / 0
Press the key. The minimum and maximum temperatures registered will appear.
0
Note: To restart the logs you just have to keep the
1 - yes
and maximum temperatures until
1
6.2 - Manual datalogger activation
Y ou can turn the internal
for 10 seconds The .
and (datalogger
messages
6.3 - Clearing datalogger memory:
Press the and
don't want to clear the memory press
press to confirm and exit the function.
SET
cooling output will keep on, it means, space of time between the last drive and
(defrosts interval)
temperature and the cooling outputs status.
®
key pressed during the viewing of the minimum
to be displayed.
temperature data recording (datalogger)
message is displayed followed by the message
). If the parameter F15 is configured with the values
or will be displayed accordingly.
keys for 4 seconds to display
SET
. To clear the memory press
SET
COMPONENT
appears in
ON or OFF by pressing or
(datalogger )
or the
. The display shows . If you
until is displayed and
