About This Guide

The D-Link DMC-G01LC 10/100/1000 BASE-T to
SFP Media Converter is a stand-alone plug-and-play
networking media technologies.
This Quick Installation Guide gives step-by-
step instructions for setting up the D-Link
DMC-G01LC Media Converter. The model you
have purchased may appear slightly different from
the images shown in this guide. For more detailed
information about the media converter please refer to
the User's Manual or visit http://www.dlink.com

Package Contents

These are the items included with your purchase:
• DMC-G01LC 10/100/1000Base-T to SFP
Media Converter
• User Manual
• Quick Installation Guide
• 5 V DC, 1 A Power Adapte
If any of the above items are missing, please contact
your reseller.
Warning:
Note: Using a power supply with a different voltage
rating than the one included with the DMC-G01LC
will cause damage and void the warranty for this
product.

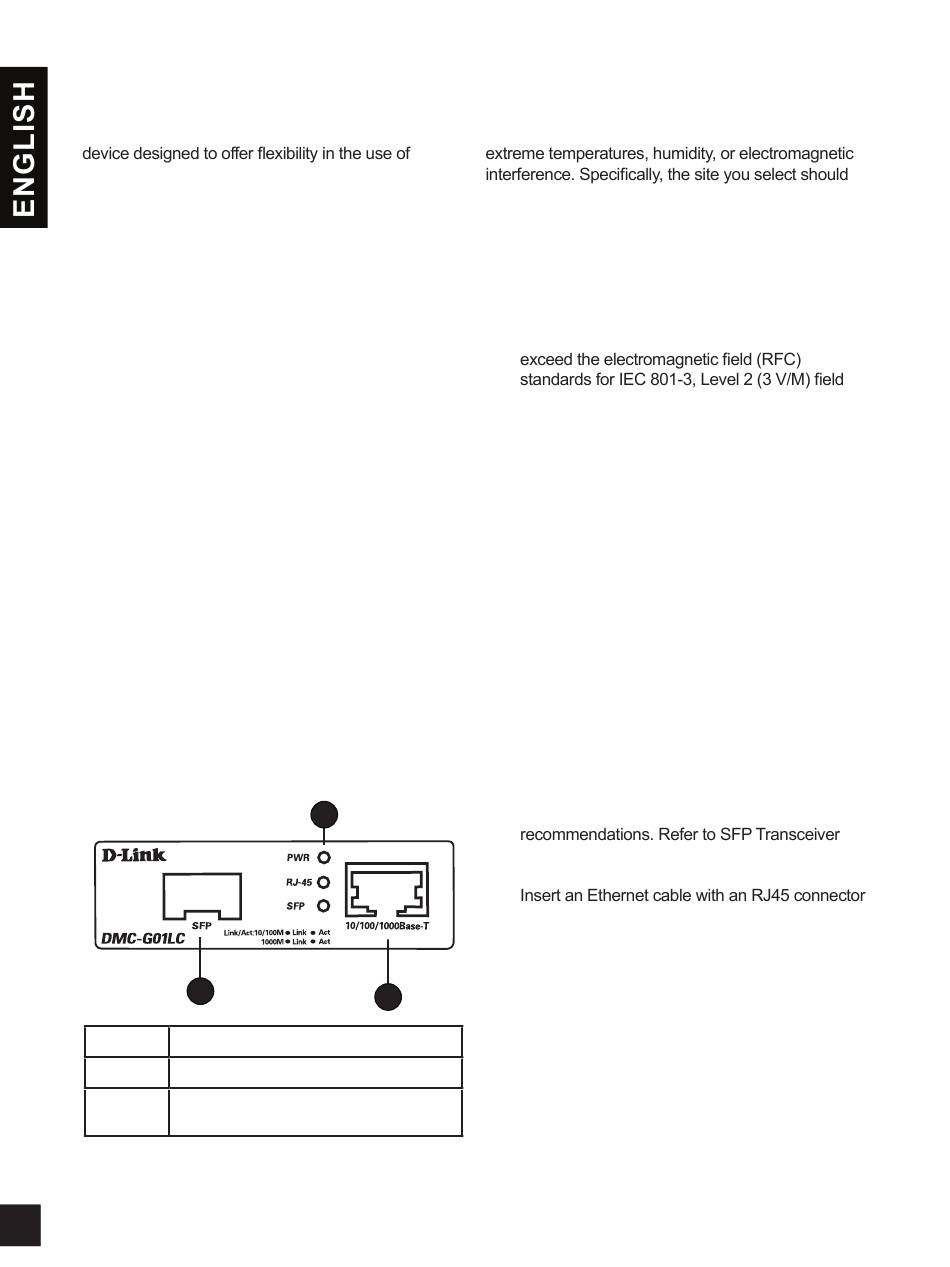

Front Panel Overview

1
1
2
3
2 2
r
2
3
SFP Port
Indicator LEDs
10/100/1000 Base-T Ethernet Port
Installation Guidelines
As with any electronic device, you should place
the equipment where it will not be subjected to
meet the following requirements:
A. The ambient temperature should be between
0 and 50 degrees Celsius (32 to 122 degrees
Fahrenheit).
B. The relative humidity should be less than 90
percent, non-condensing.
C. Surrounding electrical devices should not
strength.
D. Make sure that the equipment receives
adequate ventilation. Do not block the ventilation
holes on either side of the media converter.
E. The power outlet should be within 1.2 meters of
the device.
Setting up the
DMC-G01LC Media Converter
This converter is a plug-and-play device.
1. Connect the supplied power adapter to the
connector on the rear panel of the converter,
and then plug the adapter into a standard AC
outlet with a voltage range from 100 to 240 V
AC.
2. Insert an SFP Transceiver Module into the SFP
port in accordance with SFP manufacturer
Module documentation for additional installation
instructions.
3.
to the 10/100/1000 Base-T Ethernet port.
