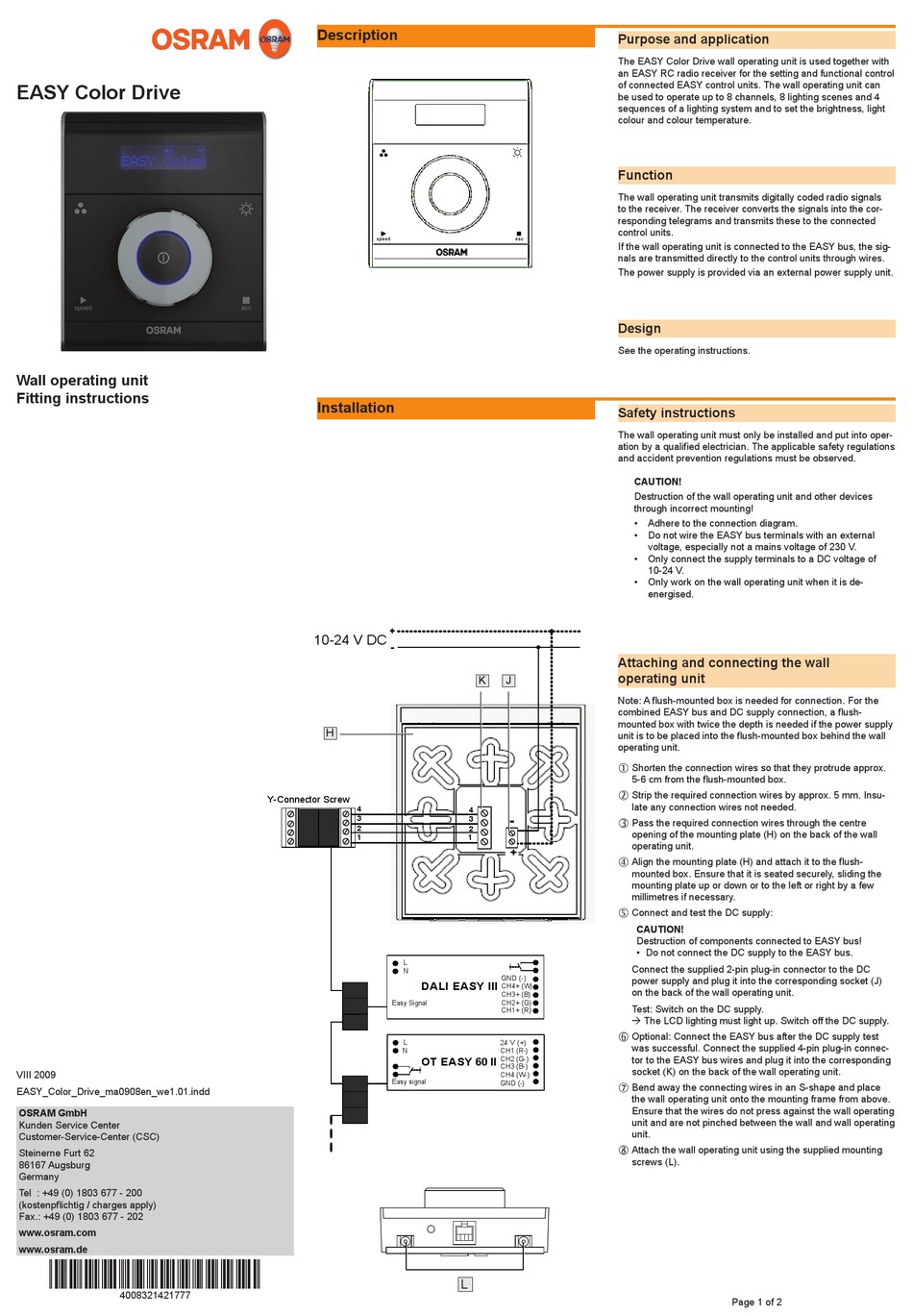

Osram EASY Color Drive Fitting Instructions

EASY Color Drive
Wall operating unit
Fitting instructions
VIII 2009
EASY_Color_Drive_ma0908en_we1.01.indd
OSRAM GmbH
Kunden Service Center
Customer-Service-Center (CSC)
Steinerne Furt 62
86167 Augsburg
Germany
Tel : +49 (0) 1803 677 - 200
(kostenpflichtig / charges apply)
Fax.: +49 (0) 1803 677 - 202
www.osram.com
www.osram.de
40083214217776
4008321421777
Description
speed
Installation
+
10-24 V DC
-
H
Y-Connector Screw
4
3
2
1
H
L
N
DALI EASY III
Easy Signal
L
N
OT EASY 60 II
Easy signal
Purpose and application

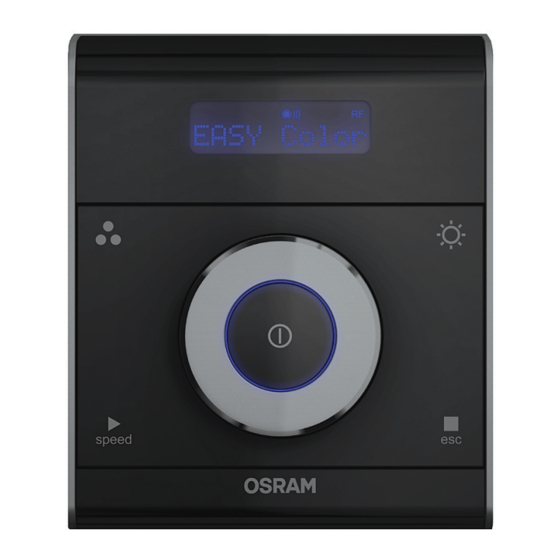

The EASY Color Drive wall operating unit is used together with
an EASY RC radio receiver for the setting and functional control
of connected EASY control units. The wall operating unit can
be used to operate up to 8 channels, 8 lighting scenes and 4
sequences of a lighting system and to set the brightness, light
colour and colour temperature.
Function
The wall operating unit transmits digitally coded radio signals
to the receiver. The receiver converts the signals into the cor-
responding telegrams and transmits these to the connected
control units.
esc
If the wall operating unit is connected to the EASY bus, the sig-
nals are transmitted directly to the control units through wires.
The power supply is provided via an external power supply unit.
Design
See the operating instructions.
Safety instructions
The wall operating unit must only be installed and put into oper-
ation by a qualified electrician. The applicable safety regulations
and accident prevention regulations must be observed.
Attaching and connecting the wall
operating unit
K J
Note: A flush-mounted box is needed for connection. For the
combined EASY bus and DC supply connection, a flush-
mounted box with twice the depth is needed if the power supply
unit is to be placed into the flush-mounted box behind the wall
operating unit.
 Shorten the connection wires so that they protrude approx.
5-6 cm from the flush-mounted box.
‚ Strip the required connection wires by approx. 5 mm. Insu-
late any connection wires not needed.
4
-
3
ƒ Pass the required connection wires through the centre
2
opening of the mounting plate (H) on the back of the wall
1
operating unit.
+
„ Align the mounting plate (H) and attach it to the flush-
mounted box. Ensure that it is seated securely, sliding the
mounting plate up or down or to the left or right by a few
millimetres if necessary.
… Connect and test the DC supply:
Connect the supplied 2-pin plug-in connector to the DC
GND (-)
power supply and plug it into the corresponding socket (J)
CH4+ (W)
on the back of the wall operating unit.
CH3+ (B)
CH2+ (G)
Test: Switch on the DC supply.
CH1+ (R)
à The LCD lighting must light up. Switch off the DC supply.
†
Optional: Connect the EASY bus after the DC supply test
24 V (+)
was successful. Connect the supplied 4-pin plug-in connec-
CH1 (R-)
tor to the EASY bus wires and plug it into the corresponding
CH2 (G-)
CH3 (B-)
socket (K) on the back of the wall operating unit.
CH4 (W-)
GND (-)
‡
Bend away the connecting wires in an S-shape and place
the wall operating unit onto the mounting frame from above.
Ensure that the wires do not press against the wall operating
unit and are not pinched between the wall and wall operating
unit.
ˆ
Attach the wall operating unit using the supplied mounting
screws (L).
L
CAUTION!
Destruction of the wall operating unit and other devices
through incorrect mounting!
• Adhere to the connection diagram.
• Do not wire the EASY bus terminals with an external
voltage, especially not a mains voltage of 230 V.
• Only connect the supply terminals to a DC voltage of
10-24 V.
• Only work on the wall operating unit when it is de-
energised.
CAUTION!
Destruction of components connected to EASY bus!
• Do not connect the DC supply to the EASY bus.
Page 1 of 2
