www.osram.com/ecue

Light is OSRAM

Our Brand

AM390290035

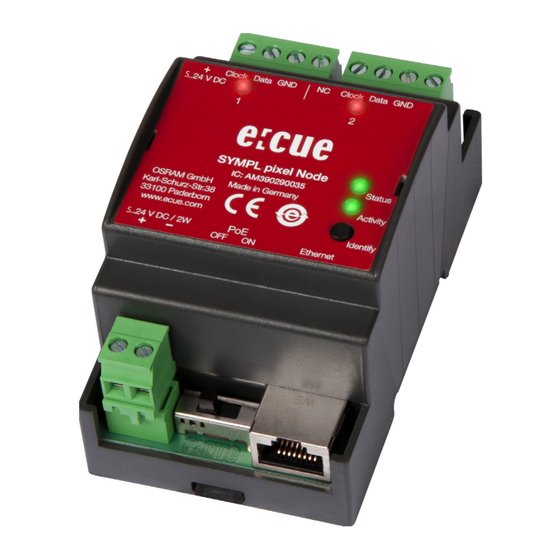

SYMPL pixel Node

& Pixel Range Extender

Information for Use

Need help?

Do you have a question about the e:cue SYMPL pixel Node and is the answer not in the manual?

Questions and answers

Summary of Contents for Osram e:cue SYMPL pixel Node

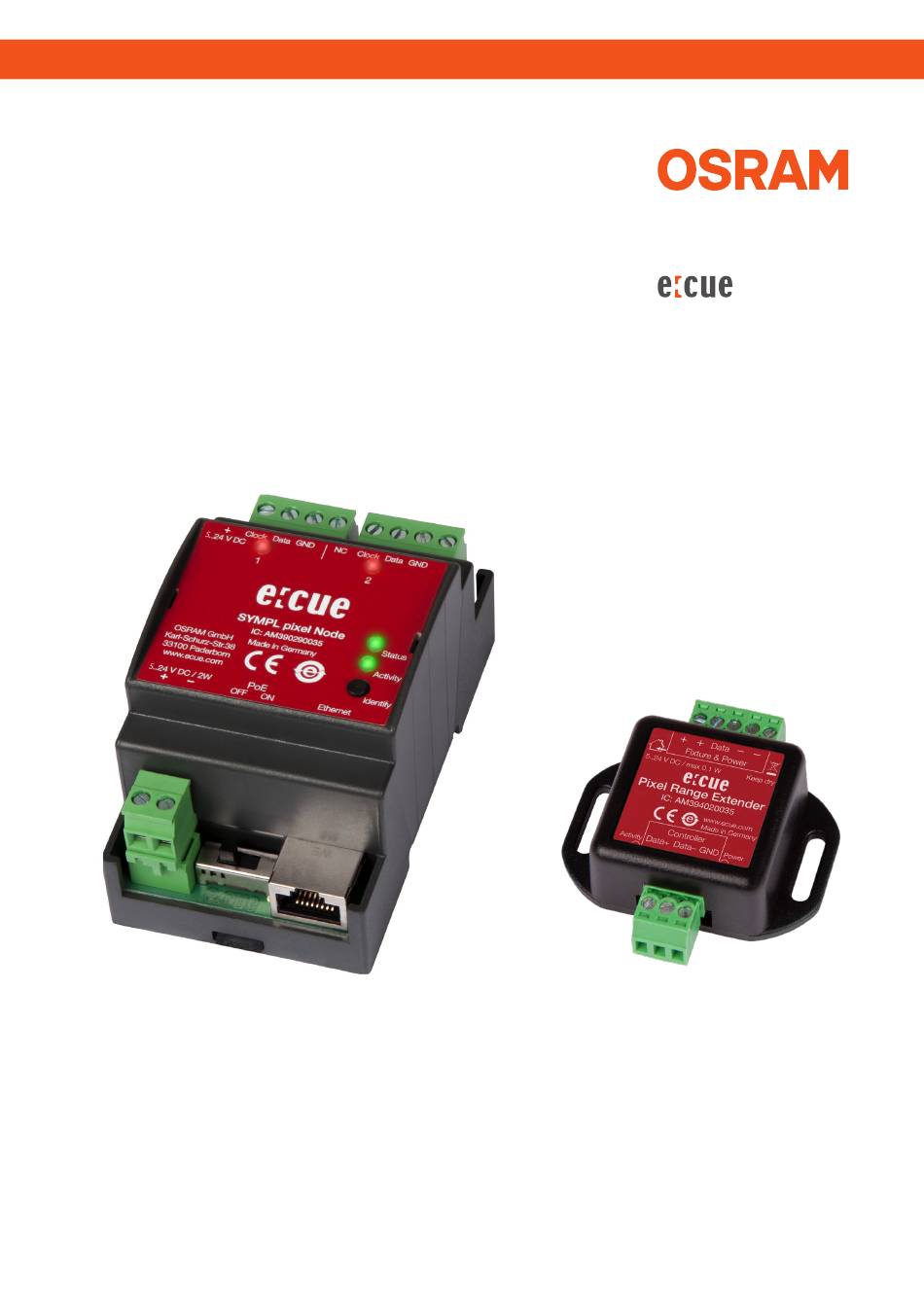

Page 1 Light is OSRAM Our Brand AM390290035 AM390290035 SYMPL pixel Node & Pixel Range Extender Information for Use...
Page 2 SYMPL pixel Node — Information for Use AM390290035 e:cue SYMPL pixel Node Setup Manual (original issue) Edition: 11.05.22 [EN_SYMPL_pixel_Node_Setup_v1p10] Published by: OSRAM GmbH Karl-Schurz-Strasse 38 33100 Paderborn, Germany ©2022 OSRAM GmbH, BU Digital All rights reserved Read the Information for Use and the safety instructions carefully.
Page 3 SYMPL pixel Node — Information for Use | Table of Contents Table of Contents Safety instructions Symbols General safety instructions General device description Delivery content Optional accessories Product specifications Connectors and interfaces User interface: LEDs Identify button: Identification & Reset & Testing General remarks Transport Unpacking...
Page 4 Use only intra-building networks to connect the SYMPL Nodes and Cores.  content • If safety instructions are missing, please contact OSRAM to receive a new copy. General device description e:cue SYMPL Nodes are a system of interfaces for e:cue SYMPHOLIGHT only. They provide various connection types like DMX512, DALI, digital inputs and outputs etc.
Page 5 SYMPL pixel Node — Information for Use | General device description Delivery content Delivery content for the e:cue SYMPL pixel Node (AM390290035): 1. e:cue SYMPL pixel Node 2. Safety instructions 3. Welcome note Optional accessories • 2 x Pixel Range Extender (AM394020035) for distances of up to 300 m*) between the Node and the fixtures.
Page 6 Output channels Up to 2048 pixel channels per output (= 682 RGB pixels) or up to 512 DMX channels per output (= 170 RGB pixels) SYMPL pixel Node — Information for Use | General device description Output wiring Cable length between controller and fi xture up to 3 m (with Pixel Range Extender up to 300 m* ) Ethernet-Port...
Page 7 Only transport the device in its original packaging. This protects the device from damage. Unpacking Only unpack the e:cue SYMPL pixel Node at its installation location. To protect the device against condensation water, unpack it and wait until all moisture remaining in the device has evaporated.
Page 8 Depending on the product, warranty regulations are of different duration. The warranty time is usually noted in the quote and in the order confirmation. See “Services”  “OSRAM Guarantee” at www.osram.com for details. Legal warranty regulations apply in any case.
Page 9 2. Gentle pressure is then applied to the top front to snap it in place. The SYMPL pixel Node has been mounted successfully. You can also mount the e:cue SYMPL pixel Node on any flat vertical surface. Use a 3 to 3.5 mm screw for the hanger hole.
Page 10 Pixel Range Extender). Power supply The e:cue SYMPL pixel Node can be powered via pass back power from the LED fixture, via Power-over- Ethernet (PoE), or by an external power supply (PSU). When using pass back power or an external power supply unit: The SYMPL pixel Node is not suited for powering over a DC power supply network.
Page 11 SYMPL pixel Node — Information for Use | Installation External power supply: Set the PoE switch to “OFF”. Connect the SYMPL pixel Node to a certified SELV NEC Class 2 24 V DC power supply unit. Present power supply equates to the status “On” or running of the SYMPL Node. To connect the device to a power supply unit, use the provided 2-pole terminal and lay the wires as stated on the front label.
Page 12 SYMPL pixel Node — Information for Use | Wiring diagram Wiring diagram Legende Clock Power supply scenarios Data Ground PSU between Node and fi xture, parallel connection - recommended wiring Option A: One PSU supplies both fi xtures and the Node via port 1 with power (+ pin, 5 ..
Page 13 SYMPL+ pixel Node SYMPL+ pixel Node + – SYMPL pixel Node SYMPL pixel Node Power supply C / 2W 5..24 V DC / 2W – – Ethernet Ethernet + – Power SYMPL pixel Node — Information for Use | Wiring diagram supply Do Not: the Node cannot supply power to the fixture, neither with PoE nor with its PSU.
Page 14 SYMPL pixel Node — Information for Use | Pixel Range Extender Pixel Range Extender AM394020035 The Pixel Range Extender is a optional distance enlarger for one output of a Pixel Node. It is designed for bridging long distances between a Pixel Node controller and the LED fixture. Add the Pixel Range Extender in front of your fixture and you can cover distances of up to 300 m* to the controlling Node.
Page 15 SYMPL pixel Node — Information for Use | Pixel Range Extender General specifi cations Product Product number Pixel Range Extender AM394020035 Dimensions 51.3 x 53.1 x 20 mm (W x H x D) (incl. plug connectors) Weight 20 g / 0.04 lb Power supply Pass back power from fi xture terminal input...
Page 16 PSU behind fi xture: Each fi xture has a separate PSU, connected to the fi xture only. SYMPL pixel Node — Information for Use | Pixel Range Extender Opt A: The fi xture on port 1 also supplies the Node with power (+ pin, 5 ..
Page 17 SYMPL+ pixel Node SYMPL+ pixel Node SYMPL pixel Node SYMPL pixel Node 5..24 V DC / 2W 5..24 V DC / 2W – – Ethernet Ethernet SYMPL pixel Node — Information for Use | Pixel Range Extender E switched OFF. Ensure that at least 4 V (min) supply reach the Node, especially when using 5 V. With Pixel Range Extender (PRE): ure’s PRE with power (+ and - pins, 5 ..
Page 18 – + – Ethernet Ethernet left and second left: each fixture has a separate PSU. The PSU for the fixture also supplies the fixture’s PRE with Power supply SYMPL+ pixel Node SYMPL+ pixel Node third and right: each fixture has a separate PSU. The PSU for the fixture also supplies the fixture’s PRE with pow SYMPL pixel Node SYMPL pixel Node 5..24 V DC / 2W...
Page 19 SYMPL pixel Node — Information for Use | Network configuration Network configuration The network properties of the device are pre-configured. The successful installation of the power supply is required for changing the network configuration. You can either adjust the network settings using SYMPHOLIGHT or the web interface of the device.
Page 20 SYMPL pixel Node — Information for Use | Network configuration The web interface of the SYMPL pixel Node is displayed: 2. On the left side, select “Settings” and enter the default password ecue: 3. Click “Apply”. The Settings page is displayed: ...
Page 21 SYMPL pixel Node — Information for Use | Output configuration Output configuration The SYMPL pixel Node offers a variety of supported output protocols - see „14 Supported Protocols“ on page 26 and for an updated list with all supplemented protocols www.ecue.com. Each of the two pixel output ports can be configured individually and independent from each other.
Page 22 SYMPL pixel Node — Information for Use | Test mode • For the Pixel Range Extender, set the Output Mode to differential. • Type APA104: Configure the universe length in SYMPHOLIGHT to a maximum of 1024 channels. If output discrepancies occur, switch between the two APA104 types (APA104_400Hz and APA104_800Hz).
Page 23 SYMPL pixel Node — Information for Use | Firmware Update Address The start address of the test output. Revert Enable to revert the direction of the chase light. Click “set” to run the test and to apply changes in the test settings. Exit the Test mode by leaving the Test mode page, e.g.
Page 24 (ESD protection). Disconnect all attached cables. Dismount the e:cue SYMPL pixel Node from the rail by pulling the black DIN rail handle and unhitching the SYMPL pixel Node. The dismounting is completed.
Page 25 SYMPL pixel Node — Information for Use | Dimensions 13 Dimensions All dimensions in mm 13.1 SYMPL pixel Node 53.5 90.5  content 13.2 Pixel Range Extender 51.3 + + Data – – 53.1 Ø 3.5 Data+ Data– GND 42.8...
Page 26 SYMPL pixel Node — Information for Use | Supported Protocols 14 Supported Protocols • For the Pixel Range Extender to work, you need to set the SYMPL pixel Node’s output mode to “extender mode” (see „8.1 LED protocol configuration via web interface“ on page 21).
Page 27 Identify button „2.6 Identify button: Identification & Reset & Testing“ on page 07. Can I repair the device myself? No. Do not try to repair the device. Return it to your OSRAM distributor for replacement or repair. What can I do if my device does not work anymore? Please contact your supplier in case of malfunctioning.
Page 28 SYMPL pixel Node — Information for Use | FAQ 15.3 Power supply How can I supply power to the SYMPL pixel Node? You have three options: a) use an external power supply unit at the Power Supply input, b) use pass back power from the LED fixture or its PSU at output port 1, or c) use PoE at the Ethernet connection.
Page 29 SYMPL pixel Node — Information for Use | FAQ Can I create my own LED pixel protocols? Yes. Define your own protocol using the protocol type “customized” at the Output Configuration (see „8 Output configuration“ on page 21). How do I know which protocol is required? This should be evident from the manufacturer’s data sheet or manual.
Page 30 OSRAM GmbH Sales Operations Head office / Zentrale: Karl-Schurz-Str. 38 Marcel-Breuer-Strasse 6 33100 Paderborn, Germany 80807 Munich, Germany +49 5251 54648-0 Phone +49 89 6213-0 support@ecue.com Fax +49 89 6213-2020 www.ecue.com www.osram.com Light is OSRAM Our Brand...

This manual is also suitable for:

E:cue pixel range extender Am390290035
