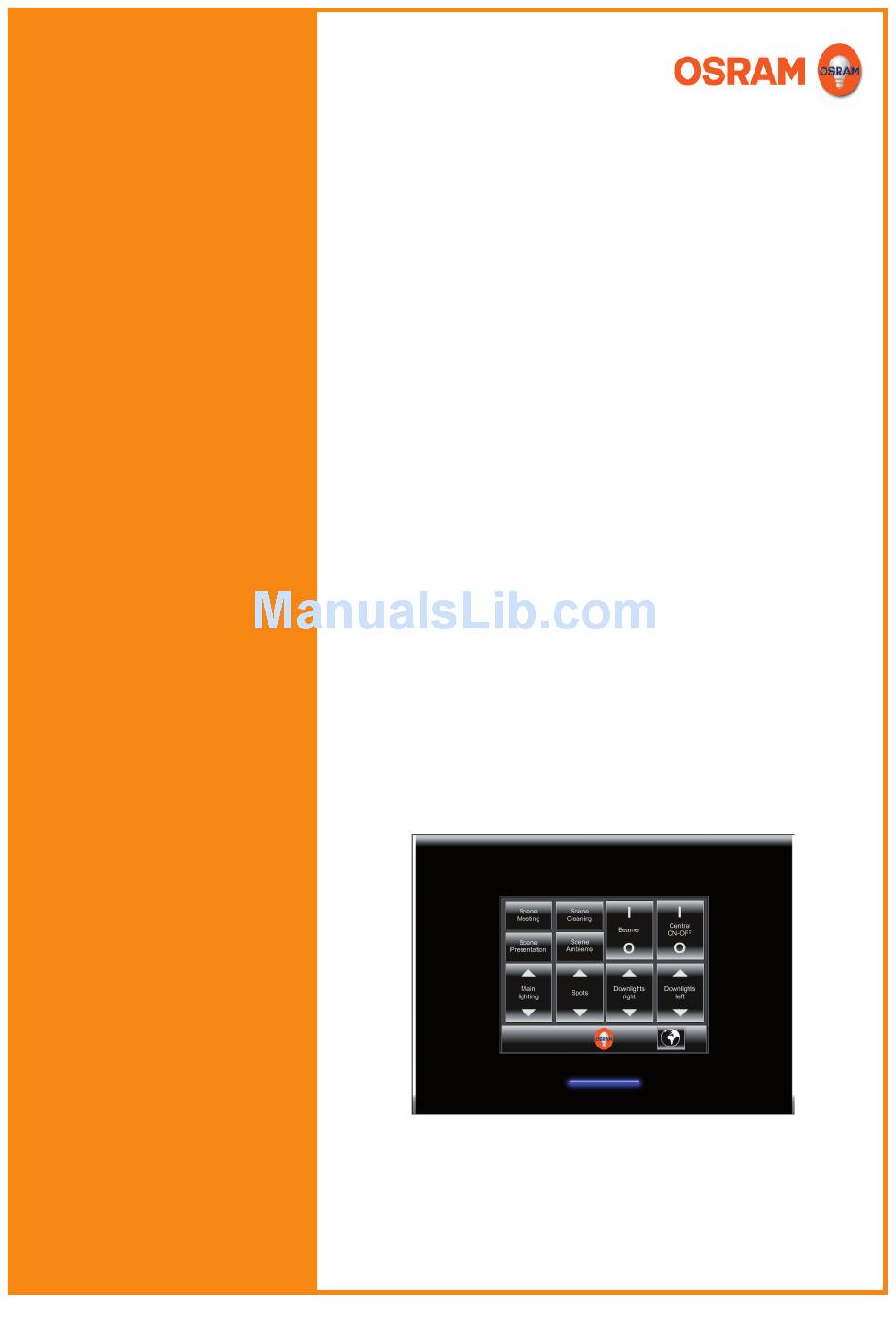

  • Page 1 EASY Touch Panel Operating instructions...

  • Page 2: Table Of Contents

    Connection.diagram.(example). Basic.settings................... 9 DIP.switches. Operating.modes. Master/slave.operation. Configuration.................. 10 Procedure. Setup.screen. Inserting,.removing.and.moving.operating.elements. Defining.label.languages. Labelling.the.operating.elements. Configuring.the.operating.element.functions. Setting.the.colour.of.the.operating.LED. Troubleshooting. Operation..................21 Principle. Calling.up/saving.a.light.scene. Starting.and.stopping.a.sequence. Switching.luminaires/relays. Dimming.luminaires. Controlling.the.blind/screen. Changing.the.light.colour.or.colour.temperature. Service.functions................23 Service.screen. Querying.the.firmware.version.and.DIP.switch.setting. Updating.the.firmware. Calibrating.touch.detection. Resetting.the.configuration.to.the.default.settings. Saving.the.configuration.on.an.SD.card/loading.from.an.SD.card. Deactivating.the.integrated.DALI.EASY.control.unit. Resetting.the.configurations.of.all.control.units.to.the.default.settings. Resetting.the.EBT.
  • Page 3 Appendix..................29 Technical.data. Dimensions. Compatibility.

  • Page 4: Description

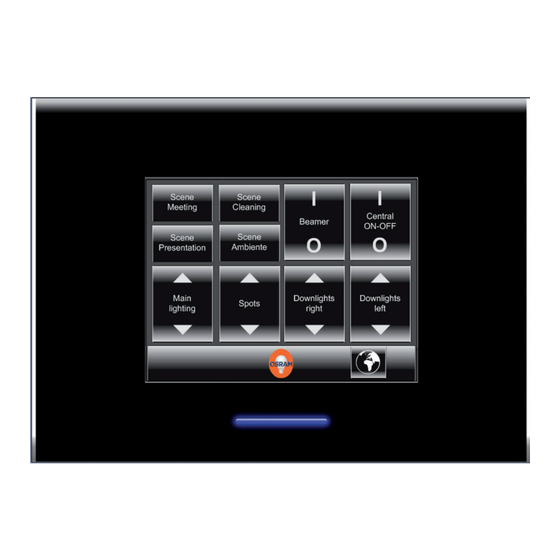

    EASY.Touch.Panel Description Description Purpose and application The.EASY.Touch.Panel.is.used.to.directly.control.4.light.groups.(expandable.to.16). and.to.retrieve.as.many.as.64.light.scenes..Integrated.switch.contacts.can.be.used.to. switch.4.non-dimmable.loads.or.operate.two.blinds/screens..RGB.elements.or.lamps. with.changeable.colour.temperatures.can.be.controlled.statically.and.dynamically.. Integrating.the.DALI.EASY.makes.the.Touch.Panel.a.full.control.unit.used.to.control.up. to.4.light.groups.without.the.need.for.additional.components. On.the.Touch.Panel,.the.operating.elements.can.be.arranged.as.required.and.dis- played.in.multiple.languages.on.up.to.three.screen.pages. Function When.the.user.touches.the.operating.elements,.the.Touch.Panel.evaluates.and. converts.the.signals.to.digital.control.commands..The.commands.are.transmitted.via.a. control.line.to.the.respective.electronic.control.gear.units. Design The.touch.panel.consists.of.the.following.components: •. Magnetically.fixed,.removable.front.frame •. Electronic.box.with.backlit.LCD.and.touch-sensitive.surface.(A) •. SD.card.slot.(B) •. Operating.LED.(C) •. EASY.bus.socket.(D).for.programming.via.PC •. DIP.switches.(E).behind.panel •. Connector.on.the.right.side: . – EASY.bus •. Rear.connectors: . –...

  • Page 5: Installation

    EASY.Touch.Panel Installation Installation Safety instructions The.touch.panel.must.be.installed.and.put.into.operation.by.a.qualified.electrician. only..The.applicable.safety.regulations.and.accident.prevention.regulations.must.be. observed. WARNING! Exposed,.live.cables. Danger.of.electric.shock! •. Work.on.the.Touch.Panel.only.when.it.is.de-energised. CAUTION! Incorrect.mounting.of.the.Touch.Panel.and.other.devices.can.result.in.their.destruc- tion! •. The.EASY.Touch.Panel.can.only.be.used.to.control.electronic.control.gear.with. DALI.interfaces.or.components.with.an.EASY.interface. •. Do.not.operate.other.control.units.on.the.DALI.control.lines. •. When.connecting,.make.sure.that.the.insulation.between.the.network,.DALI,. EASY.and.relay.connection.lines.is.sufficient. •. Adequately.insulate.sockets.and.wires.that.are.not.required. •. The.EASY.control.unit.is.specifically.designed.for.the.installation.of.flush.device. boxes;.stand-alone.installation.is.not.permissible. Mounting notes •. The.Touch.Panel.can.be.installed.in.light.weight.construction/hollow.walls.or.solid. walls..Suitable.flush.device.boxes.can.be.ordered.separately.from.Osram: . – Light.weight.construction/hollow.walls:.“Hollow.box”.type,.EAN.4008321552532. . – Solid.wall.construction:.“Concrete.box”.type,.EAN.4008321552556.(G) •.

  • Page 6: Procedure

    EASY.Touch.Panel Installation Procedure Proceed.as.follows: Step Activity Connection.lines.must.be.introduced.into.the.rear.of.the.flush.device.box.from. above.or.below,.and.the.wires.stripped.directly.at.the.box.wall. Adjust.the.length.of.the.connection.wires,.taking.into.account.the.position.of. the.connectors,.and.then.strip.approx..5.mm.of.the.required.wires. CAUTION! Incorrect.mounting.of.the.Touch.Panel.and.other.devices.can.result.in.their. destruction! •. It.is.particularly.important.to.wire.the.mains.connection.correctly. Check.the.connection.assignment.of.the.connectors.against.the.numbering.in. the.diagram.(see."Connection.diagram").and.connect.the.stripped.wires.to.the. corresponding.plugs. Plug.in.the.assigned.connectors..Adequately.insulate.unneeded.wires.and. plug-in.contacts. Check.the.DIP.switches.for.the.relay.function.and,.especially.when.controlling. blinds/screens,.ensure.that.the.DIP.switches.are.in.the.correct.position,.see. "Basic.settings". Align.the.wires.and.slide.the.Touch.Panel.into.the.flush.device.box,.ensuring. that.you.do.not.exert.pressure.or.bending.forces.on.the.display. Mount,.align.and.fasten.the.Touch.Panel.in.the.flush.device.box.using.the. provided.screws. Protect.the.DIP.switches.from.being.changed.without.authorization.using.the. cover.panel. XII.2010...
  • Page 7 EASY.Touch.Panel Installation Step Activity Mount.the.front.frame.and.align.it. Switch.on.the.mains.voltage.and.watch.the.display/operating.LED..The.oper- ating.LED.lights.up.when.the.mains.voltage.is.active. XII.2010...

  • Page 8: Connection.diagram.(Example)

    12 SYNC Blind motor 13 IR Relay B 14 GND Relay C Relay D 1 2 3 4 5 EASY Touch Panel (Master) Slave 24 V (+) Y-Connector CH1 (R-) CH2 (G-) OT EASY 60 II CH3 (B-) CH4 (W-)

  • Page 9: Basic.settings

    EASY.Touch.Panel Basic.settings Basic settings DIP switches The.basic.settings.of.the.Touch.Panel.are.adjusted.on.the.DIP.switches. DIP Description Locks/releases.the.setup.screen. Setup.screen. Setup.screen. (shows/hides.the."Setup".button.in. enabled locked the.task.bar) Operating.mode.. Non-addressed. Addressed.opera- (see.below) operation tion Master/slave.mode.of.integrated. Master Slave DALI.EASY.control.unit.(see.below) Method.of.operation.of.A/B.relays. A/B.relays.operate. A/B.relays.operate. for.controlling.blinds/screens in.pairs.and.are. independently interlocked Method.of.operation.of.C/D.relays. C/D.relays.oper- C/D.relays.operate. for.controlling.blinds/screens ate.in.pairs.and. independently are.interlocked Operating modes The.Touch.Panel.supports.two.different.operating.modes.

  • Page 10: Configuration

    EASY.Touch.Panel Configuration Configuration Procedure Proceed.as.follows.to.configure.the.Touch.Panel: Step Activity Insert,.remove.and.move.operating.elements. Define.label.languages. Label.operating.elements. Configure.the.operating.element.functions. Set.the.colour.of.the.operating.LED. The.individual.steps.are.more.closely.described.in.the.following.sections. The.configuration.can.then.be.stored.on.an.SD.card,.see.“Service.functions”. Setup screen The.Touch.Panel.is.configured.on.the.Setup.screen. Proceed.as.follows.to.open.and.close.the.Setup.screen: Step Activity Touch.the."Setup".button. Note:.. The."Setup".button.is.only.displayed.when.DIP.switch.1.is.set.to."ON";. otherwise,.the.Setup.screen.is.locked.for.users. The.Setup.screen.appears: Touch.the.required.button,.see.the.next.section. XII.2010...

  • Page 11: Inserting,.Removing.and.moving.operating.elements

    EASY.Touch.Panel Configuration Step Activity Touch.the."Setup".button.again.to.leave.the.Setup.screen. Inserting, removing and moving operating elements Proceed.as.follows: Step Activity Touch.the."Operating.elements".button. The.top.half.of.the.first.operating.screen.appears,.as.well.as.a.grey.ele- ment.bar.and.additional.symbols.on.the.task.bar: Operating screen Element bar Task bar XII.2010...
  • Page 12 EASY.Touch.Panel Configuration Inserting operating elements Step Activity If.necessary,.touch.the.following.buttons.on.the.task.bar: Change.between.the.three.operating.screens..Change.to.the.bottom/top.half.of.the.selected.ope- rating.screen..Touch.the.desired.operating.element.type.on.the.element.bar. The.selected.operating.element.type.is.highlighted. The.following.operating.element.types.are.available: •. Scene:.call.up/save.light.scene •. Sequence:.start.and.stop.sequences •. Switch:.switch.luminaires/relays •. Dim:.dim/switch.luminaires.or.control.blinds/screens •. Vary:.change.light.colour/colour.temperature.or.brightness.of.luminaires An.exact.description.of.the.functions.can.be.found.in.the.following.sections:. "Configuring.the.operating.element.functions".and."Operation". Touch.a.vacant.area.(light.grey.rectangle).on.an.operating.screen.. The.operating.element.is.inserted.there. Removing/moving operating elements (optional) Step Activity If.necessary,.touch.the.following.buttons.on.the.task.bar: Change.between.the.three.operating.screens..Change.to.the.bottom/top.half.of.the.selected.ope- rating.screen.

  • Page 13: Defining.label.languages

    EASY.Touch.Panel Configuration Step Activity If.required,.insert.the.removed.operating.element.at.a.different.location. ("move"). To.do.this,.touch.a.vacant.area.(light.grey.rectangle).on.an.operating.screen. and.then.on.the."Insert".button.on.the.task.bar. Note:.. The.label.and.function.of.the.moved.operating.element.are.retained. Back to the Setup screen Step Activity When.all.inserted.operating.elements.have.been.inserted,.touch.the. "Setup".button.to.return.to.the.Setup.screen. Defining label languages Proceed.as.follows: Step Activity Touch.the."Languages".button. A.screen.appears.showing.German,.English,.French,.Spanish,.Italian.and. three.other.user-defined.languages. Touch.the.respective.buttons.to.activate/deactivate.individual.languages. •. Light.grey.=.activated •. Dark.grey.=.deactivated Deactivated.colours.will.not.be.available.to.the.user.later.on.as.a.label.lan- guage. Only.English.is.activated.when.the.equipment.is.delivered. Touch.the."Setup".button.to.return.to.the.Setup.screen. XII.2010...

  • Page 14: Labelling.the.operating.elements

    EASY.Touch.Panel Configuration Labelling the operating elements All.operating.elements.can.be.labelled.in.the.defined.labelling.languages. Proceed.as.follows: Step Activity Touch.the."Label".button. The.top.half.of.the.first.operating.screen.and.a.list.of.the.available.lan- guages.appear. Touch.the.desired.language. If.necessary,.touch.the.following.buttons.on.the.task.bar: Change.between.the.three.operating.screens..Change.to.the.bottom/top.half.of.the.selected.ope- rating.screen..Touch.the.desired.operating.element. A.keyboard.appears. Enter.the.desired.label.by.touching.the.keyboard.buttons.. A.preview.of.the.operating.element.is.displayed.above.the.keyboard. Touch.the."Cancel".or."Ok".button.on.the.task.bar.to.discard.the.label.or. save.it..The.keyboard.is.hidden.again. XII.2010...

  • Page 15: Configuring.the.operating.element.functions

    EASY.Touch.Panel Configuration Step Activity Label.additional.operating.elements.if.necessary.or.touch.the."Setup".but- ton.to.return.to.the.Setup.screen. Configuring the operating element functions Note:.. The.operating.mode.selected.for.the.Touch.Panel.(addressed/non-addressed.opera- tion).has.an.influence.on.the.possible.configuration.of.an.operating.element,.see. "Basic.settings". Operating element types The.basic.function.is.linked.to.the.operating.element.type..The.following.operating.ele- ment.types.are.available: Operating element Function type Scene Call.up/save.light.scene Sequence Start.and.stop.sequences Switch.on Switching.luminaires/relays Dim/switch.luminaires.or.control.blinds/screens Vary Change.light.colour/colour.temperature.or.brightness.of.lumi- naires The.exact.configuration.of.an.operating.element.within.the.selected.function.is.de- scribed.in.the.following.sections. XII.2010...
  • Page 16 EASY.Touch.Panel Configuration General procedure Proceed.as.follows: Step Activity Touch.the."Function".button. The.first.operating.screen.appears. If.necessary,.touch.the.following.buttons.on.the.task.bar: Change.between.the.three.operating.screens..Touch.the.desired.operating.element. Depending.on.the.selected.operating.element,.a.special.configuration. screen.appears.containing.all.function.settings.selectable.for.this.operating. element.type. The.existing.setting.is.highlighted. The.task.bar.shows.the.type.(e.g.,.Scene.function).and.label.(e.g..Light. Scene.1).of.the.selected.operating.element. Select.the.desired.function.by.touching.the.available.buttons..See.the.fol- lowing.sections. Note:.. If.the.Touch.Panel.is.configured.for.the.addressed.operation.by.DIP. switch.2,.the.respective.function.can.be.sent.addressed.to.individual. control.units..Otherwise,.all.connected.EASY.control.units.will.react. Touch.the."Cancel".or."Ok".button.on.the.task.bar.to.discard.the.configura- tion.or.save.it..XII.2010...
  • Page 17 EASY.Touch.Panel Configuration Configuring an operating element of the “Scene” type The.“Scene”.operating.element.type.can.be.used.to.call.up.and.save.light.scenes. Proceed.as.follows: Step Activity Touch.button(s)."Adr..1".to."Adr..4".or."All".to.select.the.addresses.of.the. control.units.to.be.controlled.(addressed.operation.only). Touch.one.of.the.buttons."A",."B",."C".or."D".to.select.the.storage/sequence. range.of.the.light.scene. Touch.one.of.the.buttons."1".to."16".to.select.the.scene.number. Touch.the."Enable.Storage".button.if.necessary. •. Light.grey.=.Storage/changing.of.the.light.scene.by.applying.extended. pressure.to.the.operating.element.is.enabled. •. Dark.grey.=.Storage/changing.of.the.light.scene.by.applying.extended. pressure.to.the.operating.element.is.disabled. Touch.the."Include.Relay".button.if.necessary. •. Light.grey.=.The.relay.setting.is.taken.into.account.when.the.scene.is. stored.(prerequisite:.scene.storage.enabled).and.restored.when.the. scene.is.called.up.. •. Dark.grey.=.The.relay.setting.is.not.affected.when.the.scene.is.called.up. XII.2010...
  • Page 18 EASY.Touch.Panel Configuration Configuring an operating element of the “Sequence” type Dynamic.sequences.can.be.started.and.stopped.using.the.“Sequence”.operating.ele- ment.type. Proceed.as.follows: Step Activity Touch.button(s)."Adr..1".to."Adr..4".or."All".to.select.the.addresses.of.the. control.units.to.be.controlled.(addressed.operation.only). Touch.the."Play".or."Stop".button: •. Play:.start.sequence. •. Stop:.stop.sequence. Only.if."Play".is.selected: Touch.one.of.the.buttons."A",."B",."C".or."D".to.select.the.corresponding. sequence. Configuring an operating element of the “Switch” type The.“Switch”.operating.element.type.can.be.used.to.switch.luminaires.and.the.inte- grated.relays. Proceed.as.follows: Step Activity Touch.button(s)."Adr..1".to."Adr..4".or."All".to.select.the.addresses.of.the. control.units.to.be.controlled.(addressed.operation.only).

  • Page 19: Setting.the.colour.of.the.operating.led

    EASY.Touch.Panel Configuration Step Activity If.necessary,.touch.the."Blinds.1".(relay.A+B).or."Blinds.2".(relay.C+D).but- tons.to.activate.the.blind/screen.operation.for.the.corresponding.relays. •. Light.grey.=.blind/screen.operation.activated •. Dark.grey.=.blind/screen.operation.deactivated Precondition:.DIP.switches.4.and.5.are.configured.accordingly,.see."Basic. settings". Configuring an operating element of the “Vary” type The.“Vary”.operating.element.type.can.be.used.to.adjust.the.lighting.colour.(RGB. mode).or.colour.temperature.(tuneable.white.operation).or.the.brightness.of.the.light- ing. Note:.To.change.the.lighting.colour.(RGB.mode),.the.red.lighting.colour.must.be. connected.to.channel.1,.green.to.channel.2.and.blue.to.channel.3.of.the.corre- sponding.control.unit. To.change.the.colour.temperature.(tuneable.white.operation),.the.warm.white.light- ing.colour.must.be.connected.to.channel.1.and.the.cold.white.lighting.colour.must. be.connected.to.channel.3.of.the.corresponding.control.unit. See.also.the.instructions.of.the.respective.control.unit. Proceed.as.follows: Step Activity Touch.button(s)."Adr..1".to."Adr..4".or."All".to.select.the.addresses.of.the. control.units.to.be.controlled.(addressed.operation.only). Touch.one.of.the.following.buttons: •. "Color":.light.colour.(RGB.mode). •. "Color.Temp.":.colour.temperature.(tuneable.white.operation) •.

  • Page 20: Troubleshooting

    EASY.Touch.Panel Configuration Troubleshooting Fault Possible cause Elimination Display.remains.dark. No.power.supply. Check.whether.the.operating. LED.in.the.front.frame.is.lit. If.necessary,.create.the.power. supply. Operating.elements.can- Touch.detection.is.not. Recalibrate.the.Touch.Panel.via. not.be.operated.reliably. operating.correctly. the.Service.screen. Connected.control.units. There.is.no.master.or. De-energise.the.system.and. do.not.react.to.Touch. there.are.multiple.mas- check.the.master/slave.configu- Panel.operation.even. ters.in.the.system. ration.of.all.control.units. in.case.of.central.com- Ensure.that.only.one.master. mands. exists. The.firmware.of.the. Check.the.firmware.version.with. control.unit.is.not.cur- the.EASY.PC.software.and.per- rent. form.a.firmware.update.using. the.EASY.Updater.if.necessary. (Only.firmware.ver- sions.5.0.or.higher.are.

  • Page 21: Operation

    EASY.Touch.Panel Operation Operation Principle The.unit.is.operated.by.briefly.touching.operating.elements.(e.g..to.call.up.a.light. scene).or.by.touching.them.for.an.extended.period.(e.g..dimming)..The.operating.ele- ment.is.highlighted.and.the.activation.is.confirmed.by.clicking. The.function.depends.on.the.type.and.configuration.of.the.operating.element,.see. “Configuration”. The.operating.elements.are.distributed.on.no.more.than.three.screen.pages,.which. can.be.opened.using.the.arrow.buttons.on.the.task.bar. Screen page Task bar Calling up/saving a light scene •. Call.up.a.light.scene:.briefly.touch.the.operating.element. •. Save.a.light.scene:.press.the.operating.element.for.an.extended. period.until.the.lighting.flashes.to.confirm.(precondition:.scene. storage.has.been.enabled). Note:.The.position.of.the.blinds/screens,.which.are.controlled.via.integrated.relays,. can.only.be.restored.by.calling.up.light.scenes.directly.via.the.Touch.Panel.. If.the.position.of.the.blinds.or.screens.should.be.stored,.the.respective.relay.must. be.closed.when.the.setting.is.stored,.i.e..the.light.scene.must.be.stored.within.90. seconds.after.the.extended.pressure.on.the.blind.operating.element.ends. Starting and stopping a sequence •. Start.a.sequence:.briefly.touch.the."Play".operating.element. •. Stop.a.sequence:.briefly.touch.the."Stop".operating.element.

  • Page 22: Switching.luminaires/Relays

    EASY.Touch.Panel Operation Switching luminaires/relays •. Switch.on:.briefly.touch.the."I".symbol. •. Switch.off:.briefly.touch.the."0".symbol. Dimming luminaires •. Increase.brightness:.press.upper.arrow.symbol.for.an.extended. period. •. Switch.to.100%:.briefly.touch.the.upper.arrow.symbol. •. Reduce.brightness:.press.lower.arrow.symbol.for.an.extended. period. •. Switch.off:.briefly.press.the.lower.arrow.symbol. Controlling the blind/screen •. Move.up/down:.press.the.upper.or.lower.arrow.button.for.an. extended.period..If.the.arrow.symbol.is.pressed.for.longer.than. 3.s,.the.relay.remains.closed.for.90.s.and.the.blind/screen. automatically.moves.to.the.limit.position. •. Stop:.briefly.press.the.arrow.symbol.for.the.opposite.direction. •. Open/close.the.blind.slats:.briefly.touch.the.upper.or.lower.arrow. symbol. Changing the light colour or colour temperature •.

  • Page 23: Service.functions

    EASY.Touch.Panel Service.functions Service functions Service screen The.service.functions.are.executed.on.the.Service.screen. Proceed.as.follows.to.open.and.close.the.Service.screen: Step Activity Touch.the."Setup".button. Note:.. The."Setup".button.is.only.displayed.when.DIP.switch.1.is.set.to."ON";. otherwise,.the.Setup.screen.is.locked.for.users. The.Setup.screen.appears: XII.2010...

  • Page 24: Querying.the.firmware.version.and.dip.switch.setting

    EASY.Touch.Panel Service.functions Step Activity Touch.the."SERVICE".button. The.Service.screen.appears: Touch.the.required.button,.see.the.next.section. Touch.the."Setup".button.to.leave.the.Service.screen.again. Touch.the."Setup".button.again.to.leave.the.Setup.screen. Querying the firmware version and DIP switch setting Proceed.as.follows: Step Activity Touch.the."Info".button. The.firmware.version.and.DIP.switch.setting.are.displayed. XII.2010...

  • Page 25: Updating.the.firmware

    EASY.Touch.Panel Service.functions Updating the firmware Proceed.as.follows: Step Activity Save.the.current.configuration.of.the.Touch.Panel.on.an.SD.card,.see."Sav- ing.the.configuration.on.an.SD.card/loading.from.an.SD.card". Download.the.current.firmware.(http://www.osram.com/lms).and.save.it.on.an. SD.card. Insert.the.SD.card.with.the.current.firmware.into.the.SD.card.slot.of.the.Touch. Panel. Touch.the."Update.Firmware".button. The.firmware.versions.of.the.Touch.Panel.and.on.the.SD.card.are.displayed.. If.the.two.versions.differ,.the.firmware.of.the.Touch.Panel.is.updated.auto- matically. Take.the.SD.card.back.out.of.the.slot. Calibrating touch detection It.may.be.necessary.to.calibrate.touch.detection.if.detection.becomes.imprecise.due.to. temperature.fluctuations,.for.example. Proceed.as.follows: Step Activity Touch.the."Calibrate.Touch.Screen".button. Touch.the.displayed.screen.points.one.after.the.other.as.precisely.as.pos- sible. Touch.detection.is.recalibrated.when.the.procedure.is.completed. Resetting the configuration to the default settings The.configuration.of.the.Touch.Panel.can.be.reset.to.the.default.settings..This.proce- dure.deletes.the.current.configuration.of.the.operating.elements.(see.“Configuration”).

  • Page 26: Saving.the.configuration.on.an.sd.card/Loading.from.an.sd.card

    EASY.Touch.Panel Service.functions Step Activity Touch.the."Reset.Button.Config".button. The.Touch.Panel.configuration.is.reset. Saving the configuration on an SD card/loading from an SD card An.SD.card.can.be.used.to.save.and.reload.up.to.9.different.configurations.(see.“Con- figuration”)..This.can.be.used.to.copy.configurations.from.one.Touch.Panel.to.another. Note:.. All.settings.are.stored.in.the.Touch.Panel.itself,.even.in.the.event.of.lengthy.power. supply.interruptions..For.this.reason,.an.SD.card.is.not.needed.for.operation. Saving configuration A.configuration.can.be.saved.on.an.SD.card.under.one.of.the.fixed.file.names.. (config01.tsf.….config09.tsf). Note:.. Existing.configuration.files.on.the.SD.card.with.the.same.file.name.are.overwritten. Proceed.as.follows: Step Activity Select.the.file.name.by.touching.the.arrow.symbols. Touch.the."Save.Settings".button. The.configuration.is.stored.on.the.SD.card. XII.2010...

  • Page 27: Deactivating.the.integrated.dali.easy.control.unit

    EASY.Touch.Panel Service.functions Loading a configuration Proceed.as.follows: Step Activity The.current.configuration.is.overwritten.when.a.new.configuration.is. loaded..If.necessary,.save.the.current.Touch.Panel.configuration.on.an.SD. card,.see."Saving.the.configuration". Insert.the.SD.card.containing.the.required.configuration.into.the.SD.card. slot.of.the.Touch.Panel. Select.the.file.name.by.touching.the.arrow.symbols. Touch.the."Load.Settings".button. The.configuration.is.loaded..After.the.loading.procedure.is.completed,.the. Touch.Panel.automatically.changes.back.to.the.operating.screen. Take.the.SD.card.back.out.of.the.slot.and.keep.it.in.a.safe.place. Deactivating the integrated DALI EASY control unit The.integrated.DALI.EASY.control.unit.can.be.deactivated.if.it.is.not.required.(e.g..if. only.OT.EASY.LED.operating.units.are.to.be.controlled). Proceed.as.follows: Step Activity Touch.the."Control.Unit.Enable".button. •. Dark.grey.=.control.unit.deactivated.(default.settings) •. Light.grey.=.control.unit.activated XII.2010...

  • Page 28: Resetting.the.configurations.of.all.control.units.to.the.default.settings

    EASY.Touch.Panel Service.functions Resetting the configurations of all control units to the default settings You.can.reset.the.configurations.of.all.integrated.and.connected.control.units.to.the. default.settings. Proceed.as.follows: Step Activity If.necessary,.store.the.current.configurations.of.the.control.units.with.the. EASY.PC.software. Touch.the."Reset.Control.Units".button. All.control.units.are.reset.to.the.default.settings.. Resetting the EBT The.“Reset.EBT”.button.is.reserved.for.manufacturer.service. XII.2010...

  • Page 29: Appendix

    EASY.Touch.Panel Appendix Appendix Technical data Supply.voltage 100-240.V/50-60.Hz Power.consumption,.opera- 8.W./.3.W tion/stand-by Ambient.temperature 0…+40.°C Protection.type IP.20 Maximum.load.capacity.of. 64.mA.(32.DALI.devices) DALI.outputs (sum.of.all.channels/. asymmetrical.load.permis- sible) Max..DALI.line.length.with. 300.m 1.5.mm².line.cross.section. (sum.of.all.channels) Max..EASY.line.length.(sum. 100.m of.all.components) Switching.load.of.relay.out- 10.A.resistive.load.or puts. 1.A.inductive.load.or fluorescent.lamps.ECG.load -.. 2 .pcs..QTP5.2x49.GII.or.QTP5.2x54.GII.or.QTi. 2x35/49/80.or -.. 3 .pcs..QTP5.2x14-35.GII.or.QTP5.2x24-39.GII.or. QTP5.1x54.GII.or.QTP5.1x80.GII.or -..

  • Page 30: Dimensions

    EASY.Touch.Panel Appendix Dimensions a:.160.mm./.b:.220.mm c:..55.mm./.d:.51.mm Compatibility The.EASY.Touch.Panel.is.compatible.with.EASY.control.units.of.firmware.version. 5.0.and.higher.(the.firmware.version.of.the.control.units.can.be.determined.using. the.EASY.PC.software)..Control.units.with.firmware.version.2.0.and.higher.can.be. updated.using.the.EASY.Update.Tool.(http://www.osram.com/lms). XII.2010...
  • Page 31 XII.2010 EASY_Touch_Panel_ba1012_EN_we1.01.indd OSRAM GmbH. Kunden.Service.Center. Customer-Service-Center.(CSC). Steinerne.Furt.62. 86167.Augsburg. Germany Tel.:..+49.(0).1803.677.-.200.. (kostenpflichtig./.charges.apply). Fax.:.+49.(0).1803.677.-.202 www.osram.com www.osram.de 40083219569894 4008321956989...
