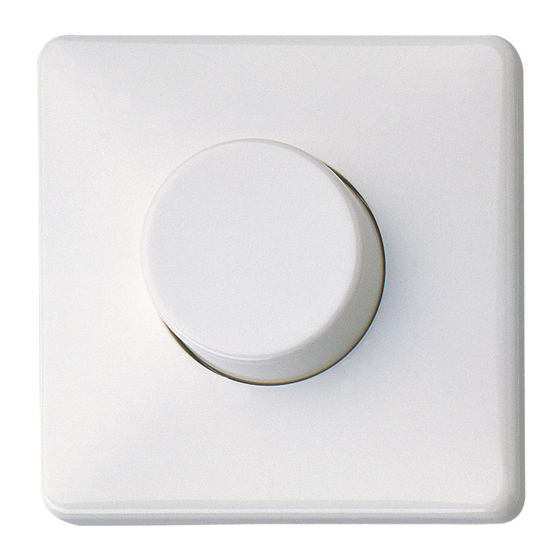

DALI MCU: Digital potentiometer with DALI
Manual lighting control with the DALI MCU for rooms with grouped luminaires with
as many as 50 ECG, with or without dividing wall
1. Application
Consider you want to switch on/off and dim the light
in a room, a restaurant or bar, a foyer or lounge etc
- but you want to do it from either of its two doors,
no matter which. For this to work, the two control
points would have to operate synchronously in such
a fashion that the lighting system responds
immediately and harmoniously when the brightness
level is changed at either of the control devices.
With the DALI MCU digital potentiometer, it is easy
to meet such requirements.
Content
01
Application
02
03
04
05
Wiring for a
conference room
06
07
08
The parallel connection between the two devices
(control points), which would be required for our
example to work, becomes super simple - and it
does not necessitate any demanding installations
and/or additional control components.
Each control circuit simultaneously affords the
integration of as many as 50 luminaires and of up to
4 DALI MCU control devices (control points). And all
that while allowing for the required comfortable,
easy and complete control over the lighting levels at
any time.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DALI MCU and is the answer not in the manual?

Questions and answers

Adam
April 1, 2025

How do you install onto the wall

User image 67eb6cef98874

Summary of Contents for Osram DALI MCU

  • Page 1: Table Of Contents

    Professional-Practice DALI MCU: Digital potentiometer with DALI Manual lighting control with the DALI MCU for rooms with grouped luminaires with as many as 50 ECG, with or without dividing wall Content Application Setup/Function of components User benefits Installation Wiring for a...
  • Page 2: Setup/Function Of Components

    In installations with 2 to 4 parallel-connected DALI MCU switching positions of the other control points that may control devices, the command triggered by the device last have been operated previously.
  • Page 3: User Benefits

    3. User benefits Lighting levels in the room can be controlled from any of the Moreover, you can also ask the DALI MCU to store a two control points. The control device most recently used will particular brightness value by double-pressing the rotary determine the current operating condition of the entire knob (double-click).
  • Page 4: Installation

    2mA. The internal power supply of a The mains supply to the luminaires and to one of the two DALI MCU connected to the mains will provide approx. DALI MCUs control devices may run through the same or 52mA –...
  • Page 5 APPLICATIONS DALI MCU 5. Wiring Figure 3: Wiring scheme of a conference room You can control up to 25 ECG with this setup (figure 3). If you also connect the second control device to the 230V circuit (i.e. 4 control points in total – figure 4). However, it is...
  • Page 6 It is important to observe correct polarity of the feed cables polarity. It is not necessary to observe control line polarity on when connecting the control line with two or more DALI MCU the ECG side. control devices.
  • Page 7: Operation

    Press the rotary knob for a longer time (approx. 10s) to tell the DALI MCU to store this value as the basic Storing switch-on brightness brightness level. Again the lamps will briefly brighten once to As you switch the light off with a short pressure of the rotary confirm that the value has been set.
  • Page 8: Other Fields Of Application

    DALI cable between the control devices in both One DALI MCU control device in each of the two sections sections – illumination levels in both sections will adjust to a must have a mains connection to make sure that it can uniform brightness within approx.
  • Page 9 APPLICATIONS DALI MCU Figure. 6: Wring scheme of a room with partition Additional interesting uses of the DALI MCU include dimmable individual luminaires, groups of luminaires, custom settings in RGB colour mix systems with designer lamps or decorative lamps, and the control of fluorescent lamps with...
  • Page 10: Technical Data

    APPLICATIONS DALI MCU 8. Technical data Designationg DALI MCU Order reference (EAN) 4008321189721 Power connection L, N Operating voaltage 230 V AC, 50-60 Hz Power consumption 3 W max. DALI connection da+/da-, max. 300 m cable legth,25 DALI ECG max.
