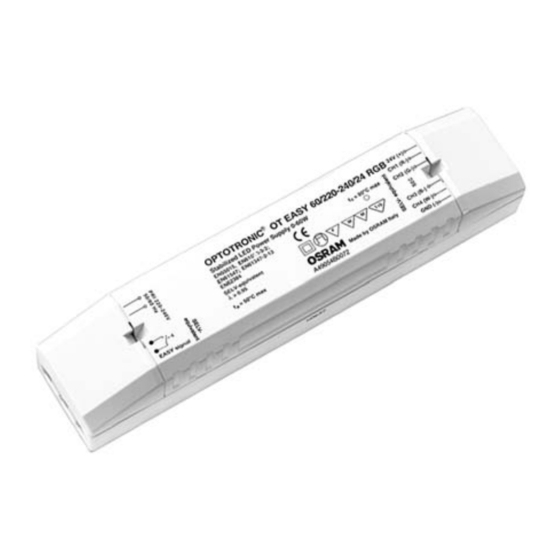

- Page 1 OT EASY 60 II LED control unit Operating instructions...
-
Page 3: Table Of Contents
Contents Safety ....................4 General instructions Safety instructions Intended use Description ..................5 Function and application Function Important definitions Scene, lighting scene Sequence Fade time Cycle time Operating modes Behaviour after a power failure Connections Installation ..................7 Connecting the control unit Wiring diagram OT EASY 60 input connections Connecting the inputs... -
Page 4: Safety
The OT EASY 60 II control unit may only be operated in the operating modes described in the „Description“ section. All other applications are considered to be inappropriate use. If the OT EASY 60 II control unit is not used as intended, there is no guarantee that it will operate safely. IV 2009... -
Page 5: Description
Description Description Function and application The OT EASY 60 II LED control unit can be used to implement static and dynamic light- ing concepts. Function The OT EASY 60 II LED control unit enables the manual and automatic control of up to four LED luminaire groups on separate channels. -
Page 6: Operating Modes
OT EASY 60 Description Operating modes OT EASY 60 II has three operating modes: • Lighting control mode: Brightness is adjusted manually, and luminaire groups and lighting scenes are switched on and off manually. • Sequencer mode: The stored lighting scenes are called up automatically one after the other. -
Page 7: Installation
OT EASY 60 Installation Installation Connecting the control unit Wiring diagram PE N Power switch and / or timer switch (optional) 24 V (+) CH1 (R-) OT EASY 60 CH2 (G-) External CH3 (B-) switch CH4 (W-) Easy signal GND (-) LINEARlight Colormix LED module Infrared receiver (optional) -
Page 8: Connecting The Inputs
OT EASY 60 Installation Connecting the inputs Proceed as follows: Step Task Connect the 4p4c modular connector of the EASY signal line. Strip the power cable, remove the insulation from the phase and neu- tral wires and connect to the screw terminals. Connect the line of the external pushbutton to the screw terminals, if applicable. -
Page 9: Ot Easy 60 Output Connections
OT EASY 60 Installation OT EASY 60 output connections OT EASY 60 output side 16 mm 24 V (+) CH1 (R-) CH2 (G-) 6 mm 3-wire cable (without PE) CH3 (B-) 16 mm CH4 (W-) GND (-) 6 mm Connecting the outputs Connection lines between the control unit and LED modules: •... -
Page 10: Expanding The System
OT EASY 60 Installation Expanding the system Master-slave circuit In a master-slave circuit, up to 16 DALI EASY or OT EASY control units can be con- trolled simultaneously via a single remote control, up to two pushbutton couplers or a single PC. -
Page 11: Wiring Diagram (Example Of A Master-Slave Circuit)
OT EASY 60 Installation Wiring diagram (example of a master-slave circuit) CAUTION! Destruction of the control unit and other devices! • Master-slave connection lines conduct protective extra-low voltage signals; do not route together with power supply or LED lines. • Ensure that the master-slave connection lines are sufficiently insulated against the power supply or lamp lines. -
Page 12: Operation
Note: These instructions primarily describe the operation via the DALI EASY RMC remote control. To operate via an EASY PB Coupler, see the separate instructions for the EASY PB Coupler. Infrared transmitter OSRAM Display Channel Scene 1 pushbutton: Scene 2... -
Page 13: Activating The Operating Modes
OT EASY 60 Operation Activating the operating modes The lighting control mode is always active. The sequencer mode and daylight simula- tion are activated via the DIP switches in the battery compartment of the remote control. Activated operating modes DIP switch setting Lighting control mode only DIP switch 3 = OFF DIP switch 4 = OFF... -
Page 14: Storing And Calling Up A Lighting Scene
OT EASY 60 Operation Storing and calling up a lighting scene „Scene 1“ to „Scene 4“ buttons. Proceed as follows to store lighting scenes: Step Task Set the brightness of the luminaire group; see "Changing the brightness manually". Press the desired button for at least 3 seconds. Confirmation: luminaires flash. -
Page 15: Setting The Fade And Cycle Time
OT EASY 60 Operation Setting the fade and cycle time Set the fade time for the sequencer mode and the cycle time for the daylight simula- tion. To increase the time: „Start/Time+“ button To decrease the time: „Stop/Time−“ button Proceed as follows: Step Task Press the button for at least 3 seconds. -
Page 16: Example Of A Daylight Simulation
OT EASY 60 Operation Example of a daylight simulation Cycle time 12h. Clock-controlled switch-on at 8 a.m. Scene 3 Scene 2 Scene 4 Scene 1 Cycle time Time 8:00 12:00 16:00 20:00 Troubleshooting If you cannot remedy the fault, please contact the Customer Service department of the luminaire manufacturer. -
Page 17: Appendix
OT EASY 60 Appendix Appendix Technical data For LED modules With respect to the output conditions: 1 x LINEARlight Colormix Flex (4m), 7 x LINEARlight Colormix, etc. Operating voltage 220-240 V / 50-60 Hz Permissible voltage fluctua- 198-264 V tions Line current, nominal 0.33 A @ 230 V Output voltage... -
Page 18: Applicable Standards
OT EASY 60 Appendix Applicable standards Safety UIEC 61347 Performance IEC 62384 Radio interference EN 55015, EN 55022 Harmonic content IEC 61000-3-2 Immunity IEC 61547 Dimensions Conformity with the relevant EU directives is confirmed by the CE symbol. IV 2009... - Page 19 IV 2009 OT_EASY_60_II_ma0904en_we1.01.indd OSRAM GmbH Kunden Service Center Customer-Service-Center (CSC) Steinerne Furt 62 86167 Augsburg Germany Tel : +49 (0) 1803 677 - 200 (kostenpflichtig / charges apply) Fax.: +49 (0) 1803 677 - 202 www.osram.com www.osram.de 40083211877966 4008321187796...
