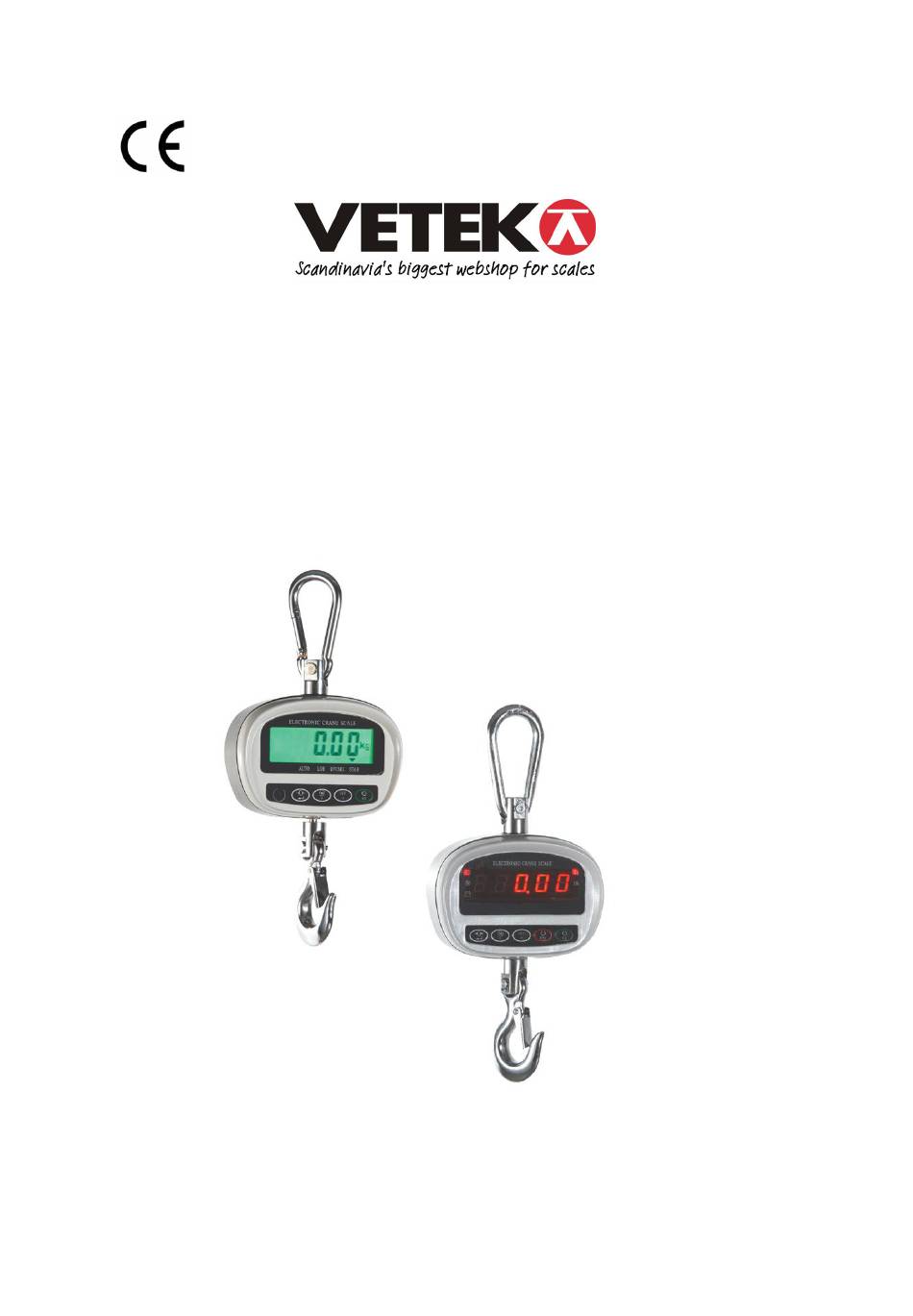

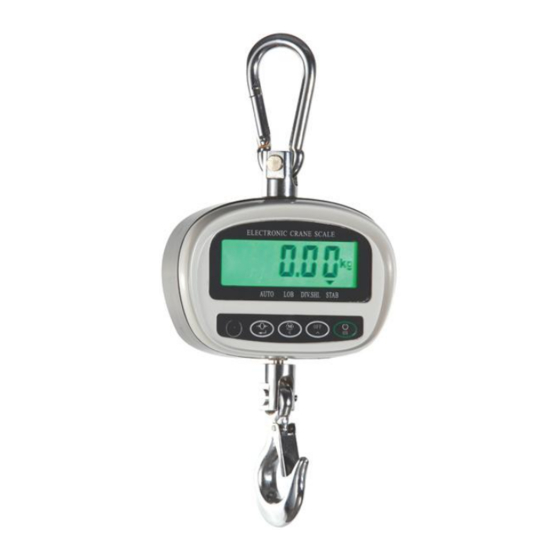

- Page 1 Electronic Crane Scale User’s Guide CRANE SCALE Manual_OCS-XZ_V1...
-
Page 2: Table Of Contents
Table of contents 1. Overview………………………………………………………………………2 2. Features & Specifications………………………………………………………2 3. Keypad Operation…………………………. ………………………. …………3 4. General Scale Operations………………………………………………………4 5. Battery Charging…………………………………………………. ……………5 6. Precautions………………………………………………………………………5 7. Calibration Method……………………………………………………………. 6 8. Sub-menu Function Setup…………………………………………………….. 6 9. Displays…………………………………………. ………………………. ……7 10. Schematics………………………………………. ………………………. ……8-9... -
Page 3: Overview
(Note: the above keys can be used in sub-menu to set up Kg-lb conversion, Beeper On/Off, Zeroing and indicator exchange, etc.) Max. Capacity Mini. Weight Model Measured Division Selectable Div. (kg) (kg) OCS-XZ-003 0.01 0.005 OCS-XZ-005 0.02 0.01 OCS-XZ-010 0.05 0.02 OCS-XZ-015 0.05... -
Page 4: Keypad Operation
Keypad Function/Operation ［ON］ : With the main switch on the back of the scale is at ON position, press this key to turn on the scale. ［RST］ : Regardless the status of the scale, press this key for reset operation (applicable to the scale with LED display). -
Page 5: Battery Charging
goes through a self-check sequence. After 0.0 is displayed and zeroing indicator (for GSE model) or symbol (for GSC model) is lit, the scale is ready for weighing operation. (Note: it is recommended to allow scale 3~5 minutes of warm-up time before starting weighing operation). 2. -
Page 6: Calibration Method
1. The alkaline batteries with the Standard Option are not rechargeable battery. Do not attempt to charge them. 2. Customer can select either the 7.4V/2AH high power lithium rechargeable battery with DC8.4V/500mA charger or the 4 Nickel-H rechargeable battery/charger packages. Please do not use the rechargeable battery package other than those provided by fty. -
Page 7: Displays
Setup Functions in Sub-Menu Function Operation Display Remarks Turn On/Off the BEE 0 Enter the alarm ON/Off Press [ ] key during the scale ↑ weigh stable alarm setup mode. Press [ ]key self-check sequence “9,….0” to to toggle the setup. “0” to beep Off, “1”... - Page 8 Low voltage indicator. When this symbol is lit, the system is at low power status. Exchange indicator. When this symbol is lit, indicating the display value is at selectable division status. Stable indicator. When this symbol is lit, the weighing process is stable and customer can take record of the weight.
- Page 9 Schematics...
