Summary of Contents for Vetek WB5040-SWP

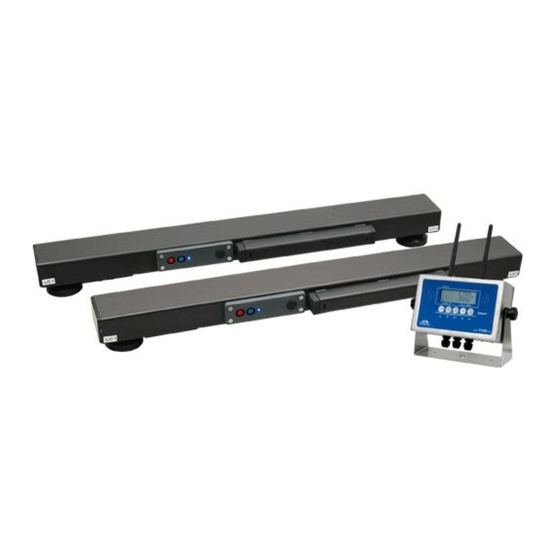

- Page 1 MODEL User Manual WIRELESS PORTABLE SCALE Manual_WB_BT_V1...
-
Page 2: Installation
THIS EQUIPMENT CONTAINS NO USER SERVICEABLE COMPONENTS. Servicing of the equipment must only be carried out by trained and authorized per- sonnel. Use only the AC adapter supplied with the scale. Other adapters may cause dam- age. Routine maintenance Harsh abrasives, solvents, scouring cleaners and alkaline cleaning solutions should not be used;... -
Page 3: When To Charge The Internal Battery
In certain situations, a squeeze chute may move forward and/or backward when an animal enters or exits the chute. To restrict movement, a section of 1” angle iron may be mounted to the concrete pad in front of the chute and behind the chute. A 1/4” space should be main- tained between the weigh bar feet and the angle iron (see illustration below). -
Page 4: How Long To Charge The Internal Battery
HOW TO CHARGE THE INTERNAL BATTERY 1. Connect the charger (AC Adapter 12 VDC, 800mA) to the scale, and then plug the charger into an AC outlet. Make sure that the AC voltage appearing at the wall outlet matches the input voltage marked on the AC adapter. 2. - Page 5 When shipped from the factory, the display unit is configured to automatically switch off after 30 minutes if not in use. Replacing the batteries – weigh beams Each beam has a battery holder which contains 4 “C” cell alkaline batteries. 1.
- Page 6 Symbol Display Displays when the scale is on Zero. Indicates that the indicator is displaying net weight (Gross weight minus Tare weigh). Indicates that the indicator is displaying gross weight Indicates that a push-button tare weight has been established in the system Indicates that the unit of the displayed weight is in pounds Indicates that the unit of the displayed weight is in kilograms This light is on whenever the scale is at rest (stable reading).
- Page 7 Coming soon Calibration Your WB5040-SWP portable scale is ready to use right out of the box. There is no need to calibrate the scale unless you feel that the scale has become inaccurate. It is a good idea to check the calibration of your scale from time to time with a precision test weight.
- Page 8 Error Messages Indicates that the weighing capacity of the scale has been exceeded. The weight limit of the WB5040-SWP is 5000 pounds. Indicates that the weight on the scale is negative. Press the Zero/Off key. Beam #1 not found; ensure that beam #1 is po- wered ON and/or move closer to display unit.
-
Page 9: Main Components
Error Messages – continued Display unit battery needs to be recharged AND Beam #1 batteries need to be replaced Display unit battery needs to be recharged AND Beam #2 batteries need to be replaced Display unit battery needs to be recharged AND Beam #1 and Beam #2 batteries need to be re- placed Specifications... -
Page 10: Troubleshooting
(12) months from the date of purchase. For com- plete warranty details and service information, please contact us at the address below. Contents subject to change without notice. Vetek Weighing AB Box 79 76040 Väddö, Sweden...
