Manual
NORmal USE
Buttons
ON/OFF
Starts and turns off scale
hOlD
hold-funktion holds the value up to 2 minutes.
Switches between units kg and b.
UNIT
ZERO/TaRE
Zeroes the scale during range 0 – 30,00 / 60,00 / 150.0 kg.
kg, lb, batterysymbol for low battery, zero (stable zero), a dot to the left side of
Indicators
the display indicates hold funtion active. Shows EEEEE if scale is overloaded
auto power off (Scale turns of if the value is stable for 2 min and no buttons is pressed).
Scale is delivered with Auto power off activated. To deactivte it press and hold the HOLD
button , press ON and the scale should show A_ON. Press ZERO to change to A_OFF. Press OFF
and ON
TYPE
FCS 30kg/10g
FCS 60kg/20g
FCS 150kg/50g
Size of plate:
Net / Gross Weight: 4,1 / 4,5 kg (Box 44,5x34,6x7 cm or 5 st 46x36x39 cm)
Working Temp. :
Input:
Output:
Adress
Vetek Weighing AB
Hantverksvägen 15
SE- 764 93 VÄDDÖ

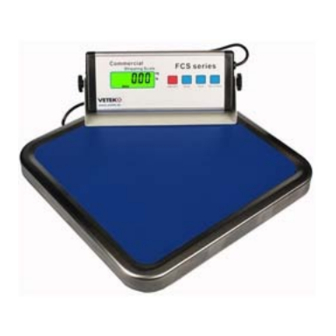

FCS
Shipping scale
CaPaCITY
30 kg
60 kg
150 kg
50 g up to 100 kg, 100 g between 100 och 150 kg
330 x 320 mm
Optimally 15-30°C
adapter 230 VaC / 9 VDC, 100 ma, +center or 6 aa batteries (Not included).
RS232
Telefon:
+46 (0)176 208 920
Telefax:
+46 (0)176 208 929
DIVITION
10 g
20 g
E-mail:
Info@vetek.com
Website
www.vetek.com
1
Manual_FCS_V1
Advertisement
Related Manuals for Vetek FCS Series
Summary of Contents for Vetek FCS Series
- Page 1 230 VaC / 9 VDC, 100 ma, +center or 6 aa batteries (Not included). Input: RS232 Output: Adress Telefon: E-mail: Vetek Weighing AB +46 (0)176 208 920 Info@vetek.com Hantverksvägen 15 Telefax: Website SE- 764 93 VÄDDÖ +46 (0)176 208 929 www.vetek.com...
-
Page 2: Safety Precautions
– do not EVER exceed the maximum capacity of the scale • Keep the scale away from water – this scale is not water resistant. Shock, injury and electrical damage can occur if used in a wet location! • Matter charged with static electricity could affect accuracy. Discharge all static electricity. For example, one method is to use Static-guard spray, and spray it on both sides of the weighing platform. www.vetek.com info@vetek.com... -
Page 3: Parts Description
5) Quit to hold function: Once an item is weighed and the hold function is enabled; you want to value. quit to hold function, Press the hold key again to cancel the “.” hold indicator and return the scale to weight value. Vetek AB Box 79, Industriv. 3 760 40 Väddö Tel 0176 208 920 Fax 0176 208 929 e-mail: info@vetek.se www. -
Page 4: Function Settings
This is necessary because the weight of a mass in one location is not necessarily the same in another location. also, with time and use, mechanical deviations can occur. www.vetek.com info@vetek.com... -
Page 5: How To Calibrate
Just like in an airplane, do not use your cell-phone near the scale when it is in use. While there is NO risk of permanent damage to the scale, interference can cause an incorrect calibration or incorrect weight readings. www.vetek.com info@vetek.com...
