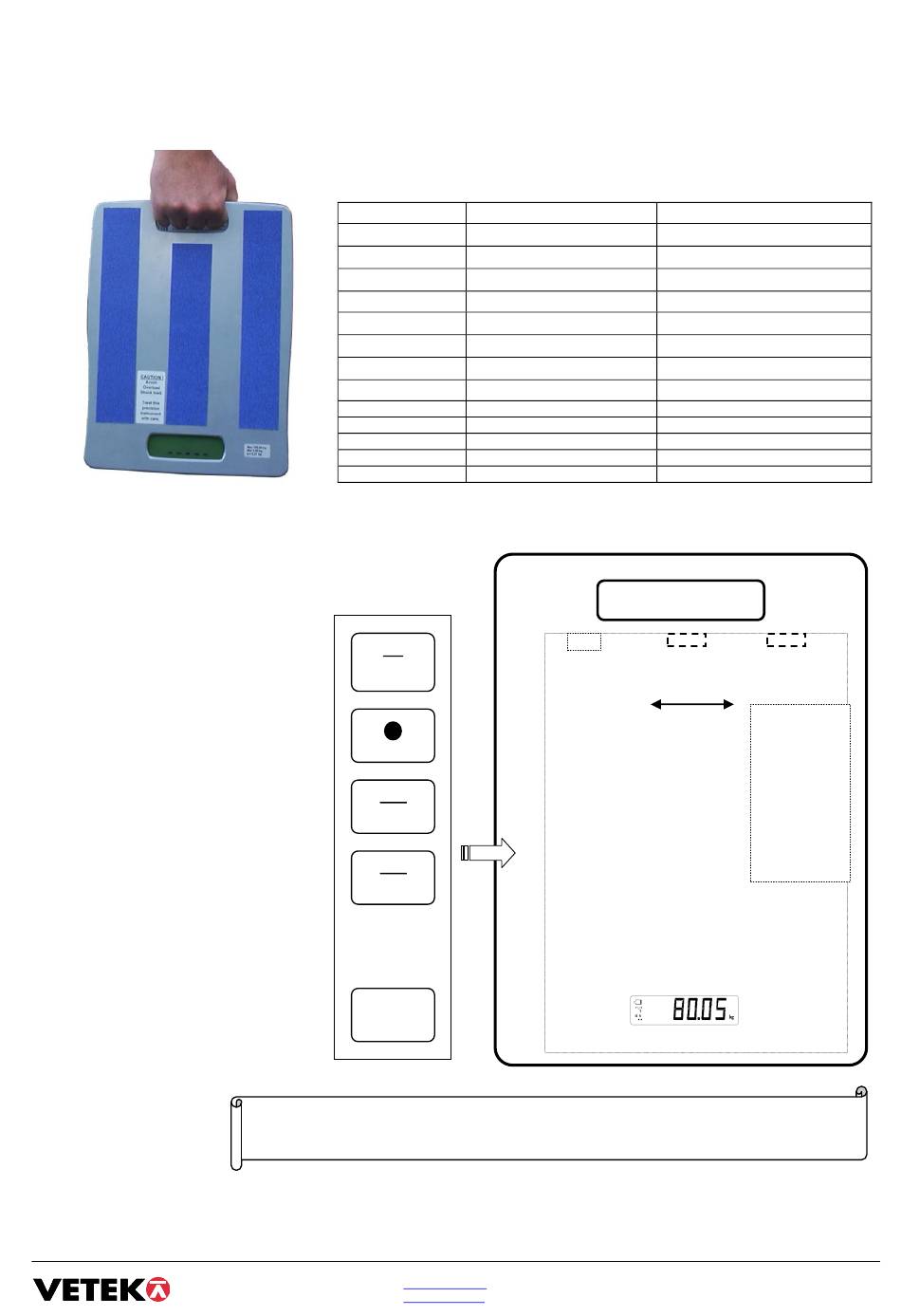

Manual Weighingblock VB2 series and Uniscale
Note: At page 8 in this manual you will find a short form instruction. Normally the only
instruction shipped together with the Scale.
Overview different ranges.
Model
VB2-30-EC
VB2-100-EC
VB2-200-EC
VB2-200-EC-TM
VB2-200-50-TM
VB2-30-05
VB2-100-02
VB2-100-10
WS-130
VB2-130-10
VB2-200-10
ON
PRINT
NET
GROSS
OFF
ZERO
TARE
The Weighingblock is a robust Scale. It is designed for portable use. When
transported by car between different working places we recommend using of a
protected space or a case. This will extend the interval for service.
Hantverksvägen 15,
76493 Väddö, Sweden.
Model
UNISCALE 100kg/2g
UNISCALE 130kg/10g
UNISCALE 200kg/5g
UNISCALE 200kg/50g
External power
9 VDC
info@vetek.com
Tel +46 176 208 920
www.vetek.com
Capacity / Graduation
Max 30 kg / 10 g
Max 100 kg / 10 (50) g
Max 200 kg / 20 (100) g
Max 200 kg / 100 g
Max 200 kg / 50 g
Max 30 kg / 5 g
Max 100 kg / 2 g
Max 100 kg / 10 g
Max 130 kg / 10 g (special)
Max 130 kg / 10 g
Max 200 kg / 20 g
Max 200 kg / 5 g
Max 200 kg / 50 g
Calibration
Communica-tions
switch
port
Normal Calibration
Alkaline
batteries
Manual_VB_V2
page 1
