ENGLISH

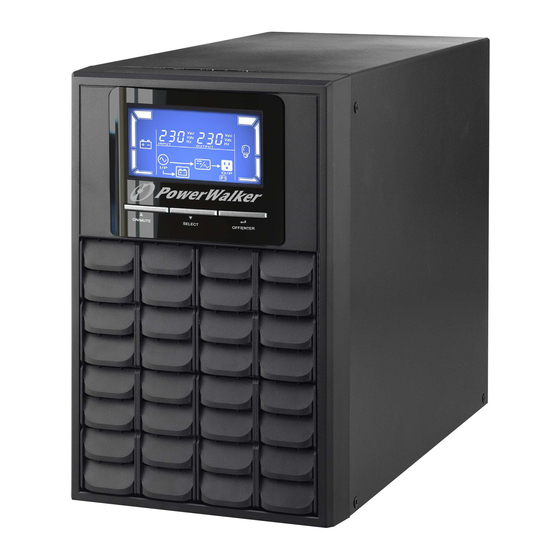

PowerWalker VFI 1000-3000 C LCD
Quick Guide
I.

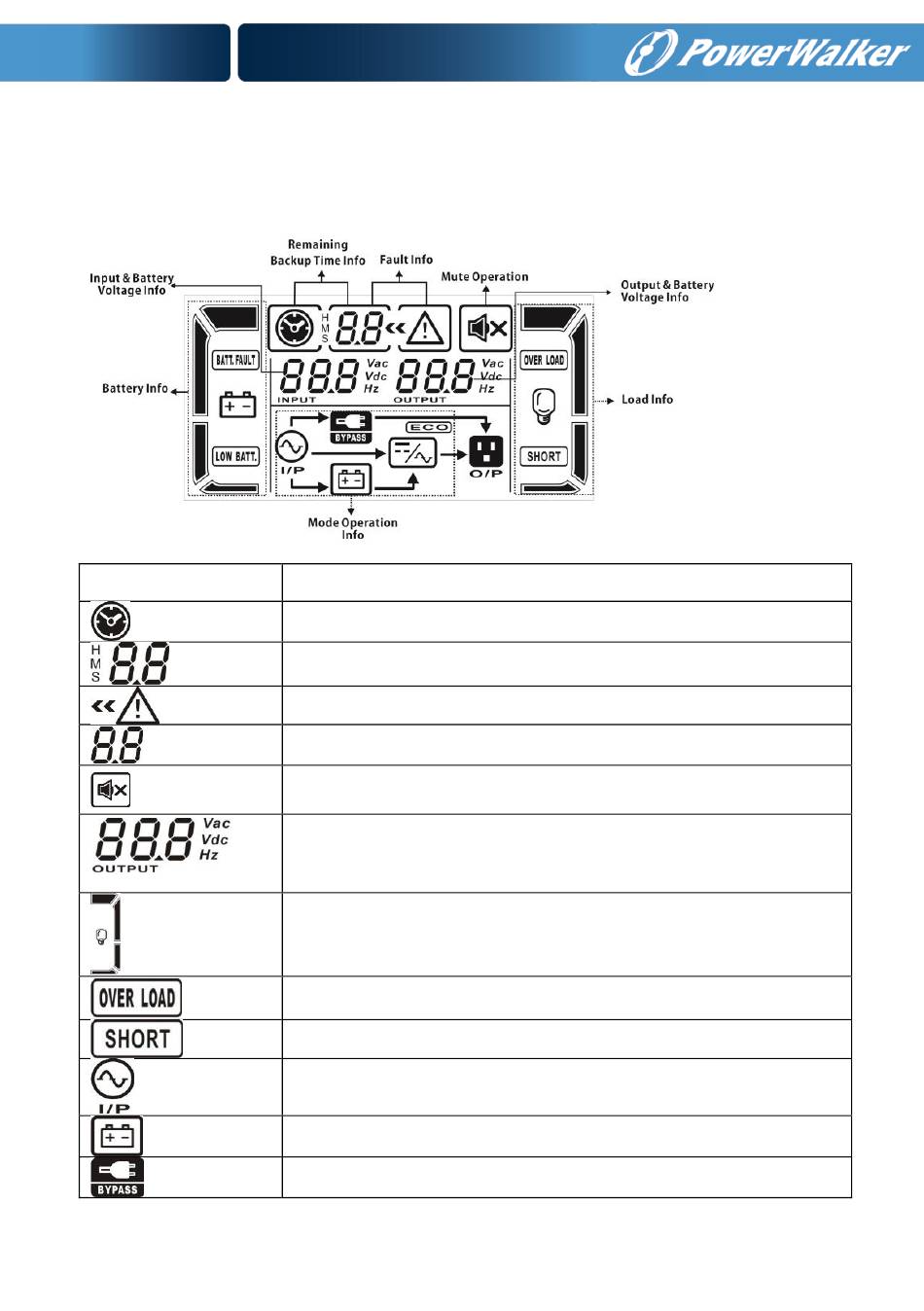

LCD Panel
Parameter 1
Parameter 2
Parameter 3
Display
Function
Indicates the remaining backup time in pie chart.
Indicates the remaining backup time in numbers.
H: hours, M: minute, S: second
Indicates that the warning and fault occurs.
Indicates the warning and fault codes, and the codes are listed in
details in 3-5 section.
Indicates that the UPS alarm is disabled.
Indicates the output voltage, frequency or battery voltage.
Vac: output voltage, Vdc: battery voltage, Hz: frequency
Indicates the load level by 0-25%, 26-50%, 51-75%, and 76-100%.
Indicates overload.
Indicates the load or the UPS output is short circuit.
Indicates the UPS connects to the mains.
Indicates the battery is working.
Indicates the bypass circuit is working.
Advertisement
Table of Contents
Related Manuals for PowerWalker VFI 1000 C LCD
Summary of Contents for PowerWalker VFI 1000 C LCD
- Page 1 ENGLISH PowerWalker VFI 1000-3000 C LCD Quick Guide LCD Panel Parameter 1 Parameter 2 Parameter 3 Display Function Indicates the remaining backup time in pie chart. Indicates the remaining backup time in numbers. H: hours, M: minute, S: second Indicates that the warning and fault occurs.
-
Page 2: Communication Connection
ENGLISH Indicates the ECO mode is enabled. Indicates the Inverter circuit is working. Indicates the output is working. Indicates the Battery level by 0-25%, 26-50%, 51-75%, and 76- 100%. Indicates the battery is fault. Indicates low battery level and low battery voltage. Indicates the input voltage or frequency or battery voltage. -
Page 3: Frequency Converter Mode
ENGLISH Modes and warnings Warning Icon Alarm Muted Online mode No Alarm ECO mode No Alarm Frequency Converter No Alarm mode Battery mode Sounding every 4 seconds Sounding every 10 Bypass mode seconds Standby mode No Alarm Low Battery Sounding every second Sounding twice every Overload second... - Page 4 ENGLISH disable or enable the alarm system. But it’s not applied to the situations when warnings or errors occur. Press this button to display previous selection in UPS setting mode (up key) Press and hold ON/Mute button for 5 seconds to enter UPS self-testing while in AC mode, ECO mode, or converter mode.
- Page 5 Net Weight (kgs) 27.6 ENVIRONMENT Operation Humidity 20-90 % RH @ 0- 35 degC (non-condensing) Noise Level Less than 50dBA @ 1 Meter MANAGEMENT Smart RS-232 or USB PowerWalker ViewPower Optional SNMP Power management from SNMP manager and web browser...
