ENGLISH
Parameter 3
LCD Panel
Parameter 1
Parameter 2
Display

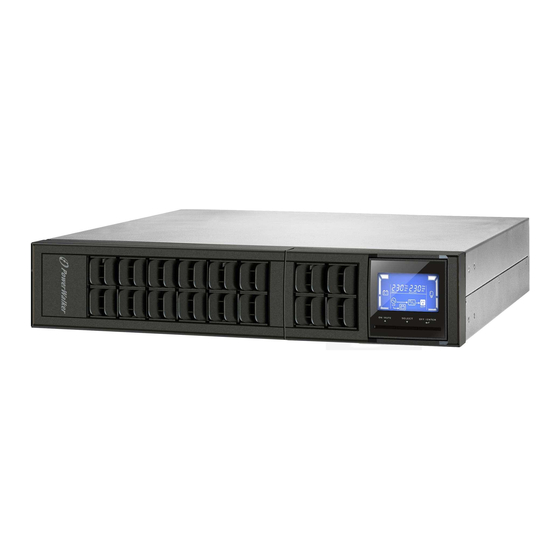

PowerWalker VFI 1000-3000 CRM
Quick Guide

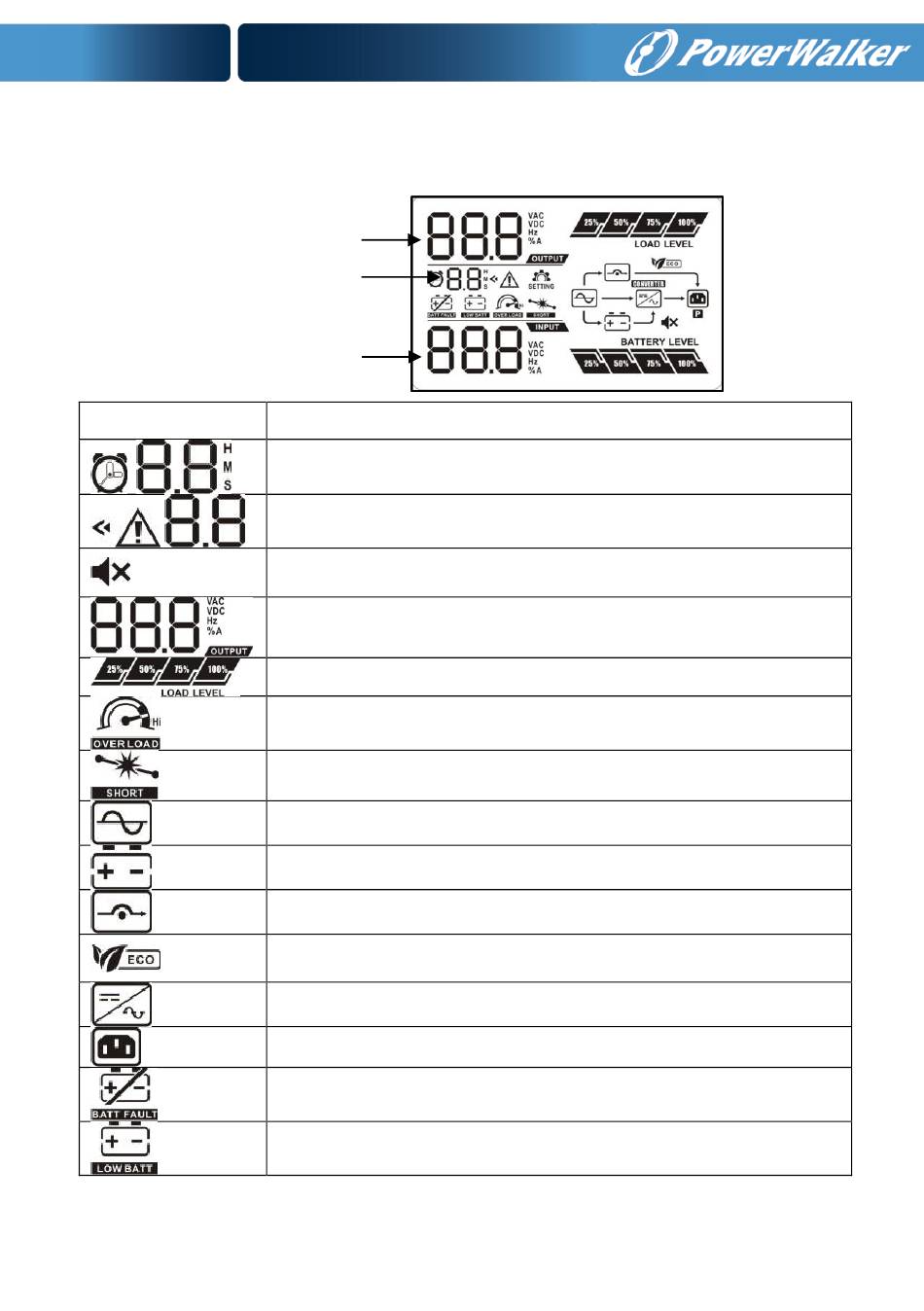

Function
Indicates the remaining backup time in numbers.
H: hours, M: minute, S: second
Indicates the warning and fault codes, and the codes are listed in
details in 3-5 section..
Indicates that the UPS alarm is disabled.
Indicates the output voltage, frequency or battery voltage.
Vac: output voltage, Vdc: battery voltage, Hz: frequency
Indicates the load level by 0-25%, 26-50%, 51-75%, and 76-100%.
Indicates overload.
Indicates the load or the UPS output is short circuit.
Indicates the UPS connects to the mains.
Indicates the battery is working.
Indicates the bypass circuit is working.
Indicates the ECO mode is enabled.
Indicates the Inverter circuit is working.
Indicates the output is working.
Indicates the battery is fault.
Indicates low battery level and low battery voltage.
