SES Installation & Operations Manual
c. Use a minimum 8 AWG solid copper conductor to connect
the bonding lug provided on the Enclosure Base to the spa
equipment ground.

5. Operation

If installed correctly, the Spa Solar Eclipse will turn on and off as
required by the Spa Controller. After installation, turn the spa on
and verify that the POWER ON (green) and UV LAMP ON (blue)
indicator lights are illuminated. Repair any leaks in the water or
ozone lines and verify that small bubbles can be seen in the return
flow. Finally, turn the Spa off and make sure that the POWER and
UV indicator lights are not illuminated.

6. Maintenance

wARNING: Before performing any maintenance on the Spa Solar
Eclipse, make sure the spa is shut down.
a. UV lamp Removal – See Figure 3.
If the Green Power Indicator is on, but the Blue UV Lamp
Indicator is off, the UV lamp needs to be replaced. However, the
UV lamp useful life is 18 months. The Lamp must be replaced
Assembly Pin
Enclosure Base

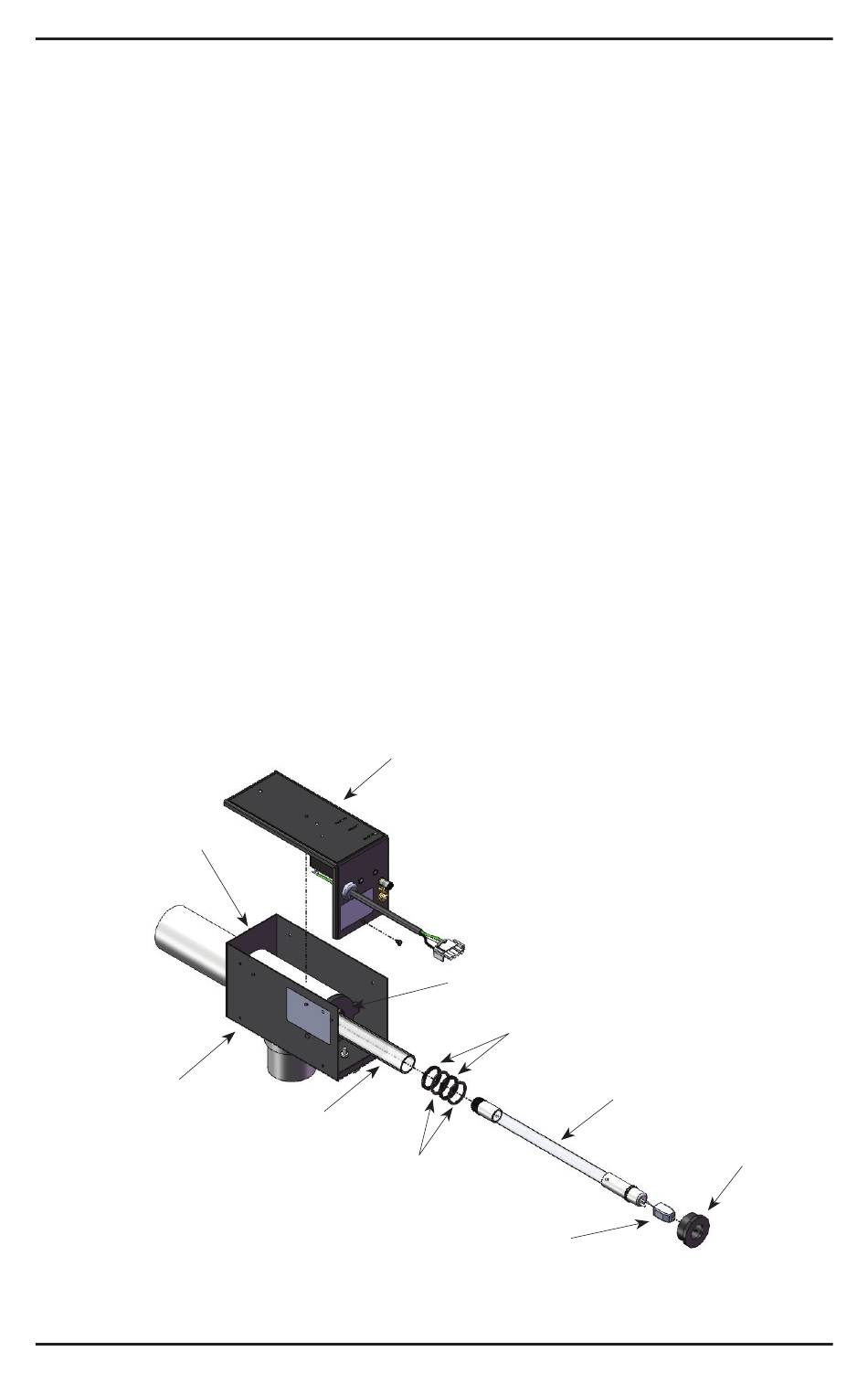

Figure 3: Spa Solar Eclipse Exploded View
Upper Enclosure Assembly
Quartz Tube
Compression
Washers
Lamp Connector Plug
3
UV Reactor
Sealing Rings
UV Lamp
Compression Nut
