Water Return
to Spa
Isolation Valves

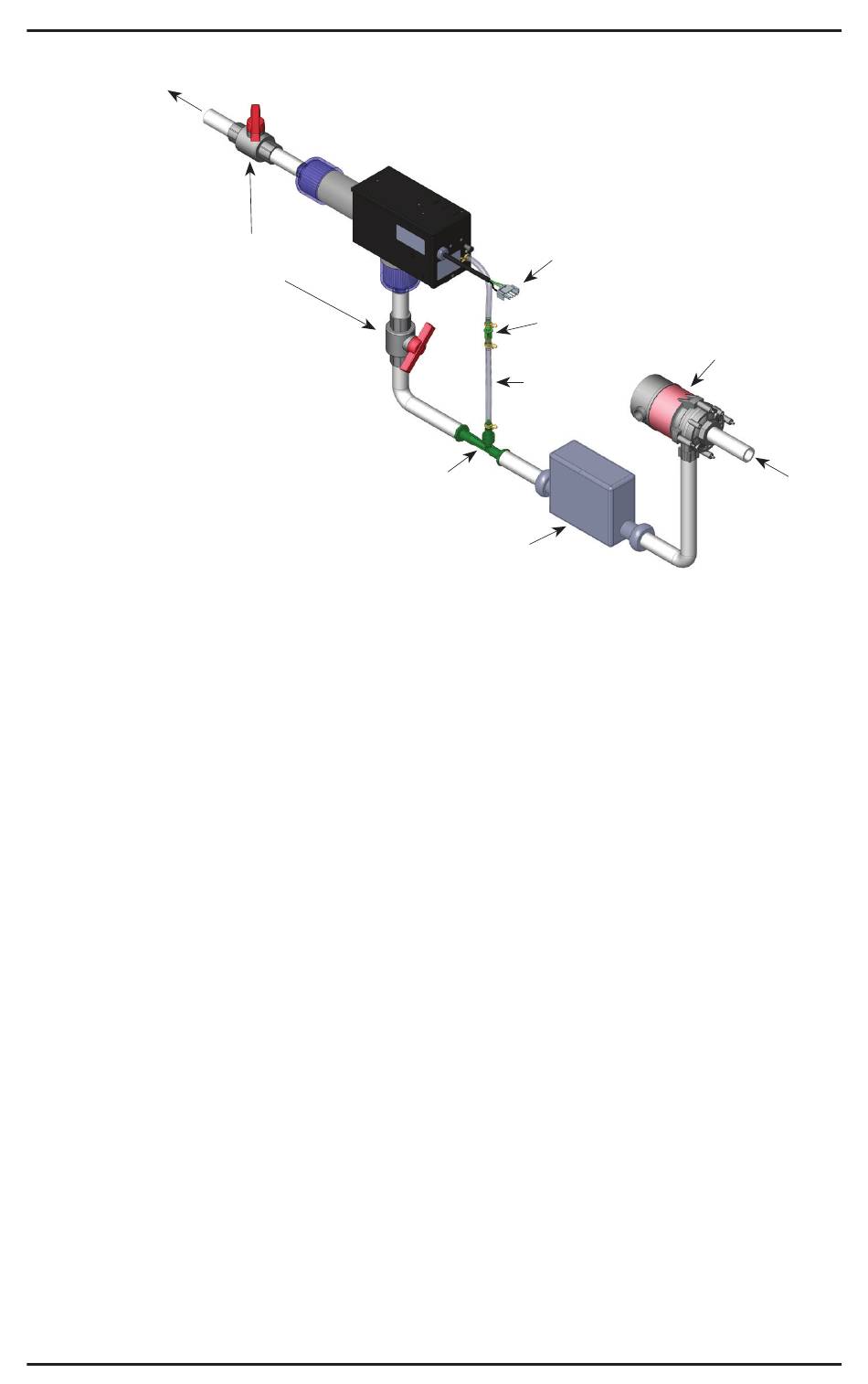

Figure 2: Spa Solar Eclipse System diagram
which will improve sanitation. However, the Spa Solar Eclipse will
function properly if the Ozone Injector is installed downstream.
a. Connect ozone compatible tubing (1/4" internal diameter) to the
open hose barb on the Spa Solar Eclipse
b. Run tubing to the Ozone Injector or appropriate vacuum source.
i. If the Spa Solar Eclipse is mounted above the water line,
tubing may be run directly to the vacuum source.
ii. If the Spa Solar Eclipse is mounted below the water line, run
tubing to a point above the water line and back down to the
vacuum source.
c. Install the check valve in the tubing above the water line. Ensure
flow direction is from the Spa Solar Eclipse to the vacuum
source.
d. Secure all tubing connections with hose clamps.

4. Electrical

a. Verify that there is no power to the spa and connect the Spa
Solar Eclipse cord into the mating connectors on the Spa
Controller.
b. Where possible, route the Spa Solar Eclipse power cord away
from other electrical lines. Avoid routing the power cord parallel
to any low-voltage signal wires.
(Optional)
Spa Controller/Heater
SES Installation & Operations Manual
Power Cord
Check Valve
Ozone Line
Injector
2
Pump
Water from Spa
