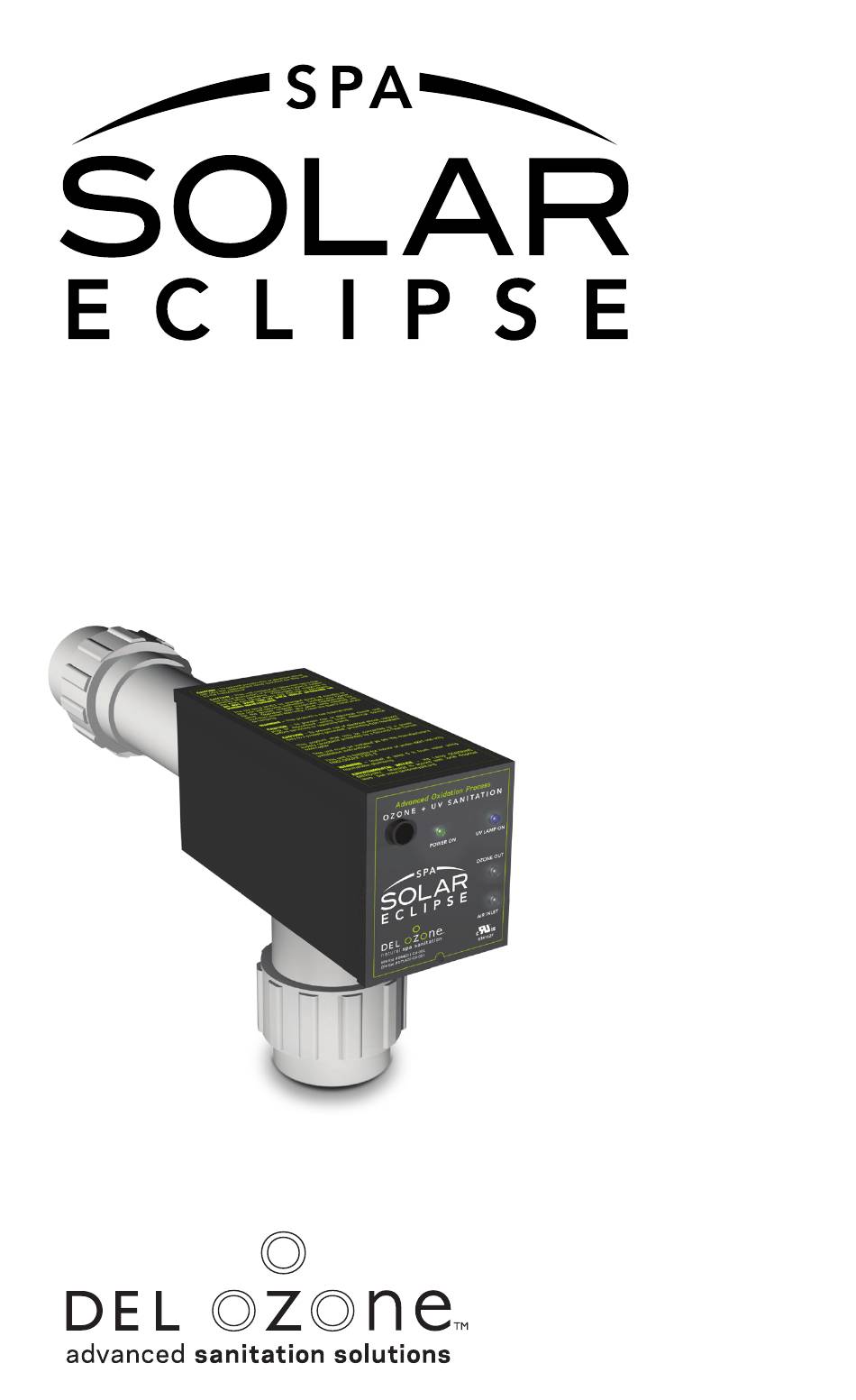

- Page 1 Ozone + UV Sanitation Installation Manual 4-2076-01 Rev.A...
- Page 2 • Be sure the electrical power is shut OFF at the main circuit breaker before installing the Spa Solar Eclipse. • If the Spa Solar Eclipse electrical connection is to be attached to the spa controls, be sure the spa controls are protected by a Ground Fault Circuit Interrupter (G.F.C.I.).
-
Page 3: Table Of Contents
TAblE OF CONTENTS Installation Instructions 1. Overview..................... 1 2. Mouting....................1 3. Plumbing .................... 1 4. Electrical..................... 2 5. Operation.................... 3 6. Maintenance..................3 warranty ....................7... -
Page 4: Installation Instructions
Figure 1. Mountings Holes are located on both sides of the Spa Solar Eclipse. Mount the Spa Solar Eclipse to the spa frame with 4 pieces of #8 hardware through the Mounting Bracket slots. Mount as high as possible in the equipment area. -
Page 5: Electrical
If the Spa Solar Eclipse is mounted above the water line, tubing may be run directly to the vacuum source. If the Spa Solar Eclipse is mounted below the water line, run tubing to a point above the water line and back down to the vacuum source. -
Page 6: Operation
5. Operation If installed correctly, the Spa Solar Eclipse will turn on and off as required by the Spa Controller. After installation, turn the spa on and verify that the POWER ON (green) and UV LAMP ON (blue) indicator lights are illuminated. - Page 7 Make sure the unit is disconnected from power and the lamp has cooled before starting maintenance. Open the Spa Solar Eclipse by removing the screw on the bottom of the Upper Enclosure Assembly, rotating it up and pushing it back to release it from the Assembly Pin.
- Page 8 UV Lamp(s). NOTE: Damage caused by broken quartz tubes is not covered under the Spa Solar Eclipse Limited Warranty. CAUTION: If broken glass is trapped in the spa system, do not operate the spa. contact a service professional to have the glass...
- Page 9 SES Installation & Operations Manual Compression Washers 3/8 in Sealing Rings Figure 4: Quartz Tube Seal Assembly detail e. Quartz Tube Installation Arrange the Sealing Rings and Compression Washers on the Quartz Tube as shown in Figure 4. Insert the Quartz Tube partially into the UV Reactor. Place the Compression Nut over the open end of the Quartz Tube and slowly push in till it is resting against the threads on the UV Reactor.
-
Page 10: Warranty
After this information is provided, DEL Ozone may release a RETURN GOODS AUTHORIZATION (RGA) NUMBER. After receiving the RGA number the part in question must be returned to DEL Ozone, freight prepaid, with the RGA number clearly marked on the outside of the package. All preauthorized defective parts must be returned to DEL Ozone within thirty (30) days. - Page 12 3580 Sueldo Street, San Luis Obispo, CA 93401 (800) 676-1335 o3info@delozone.com www.delozone.com EPA Estab. No. 071472-CA-001...
