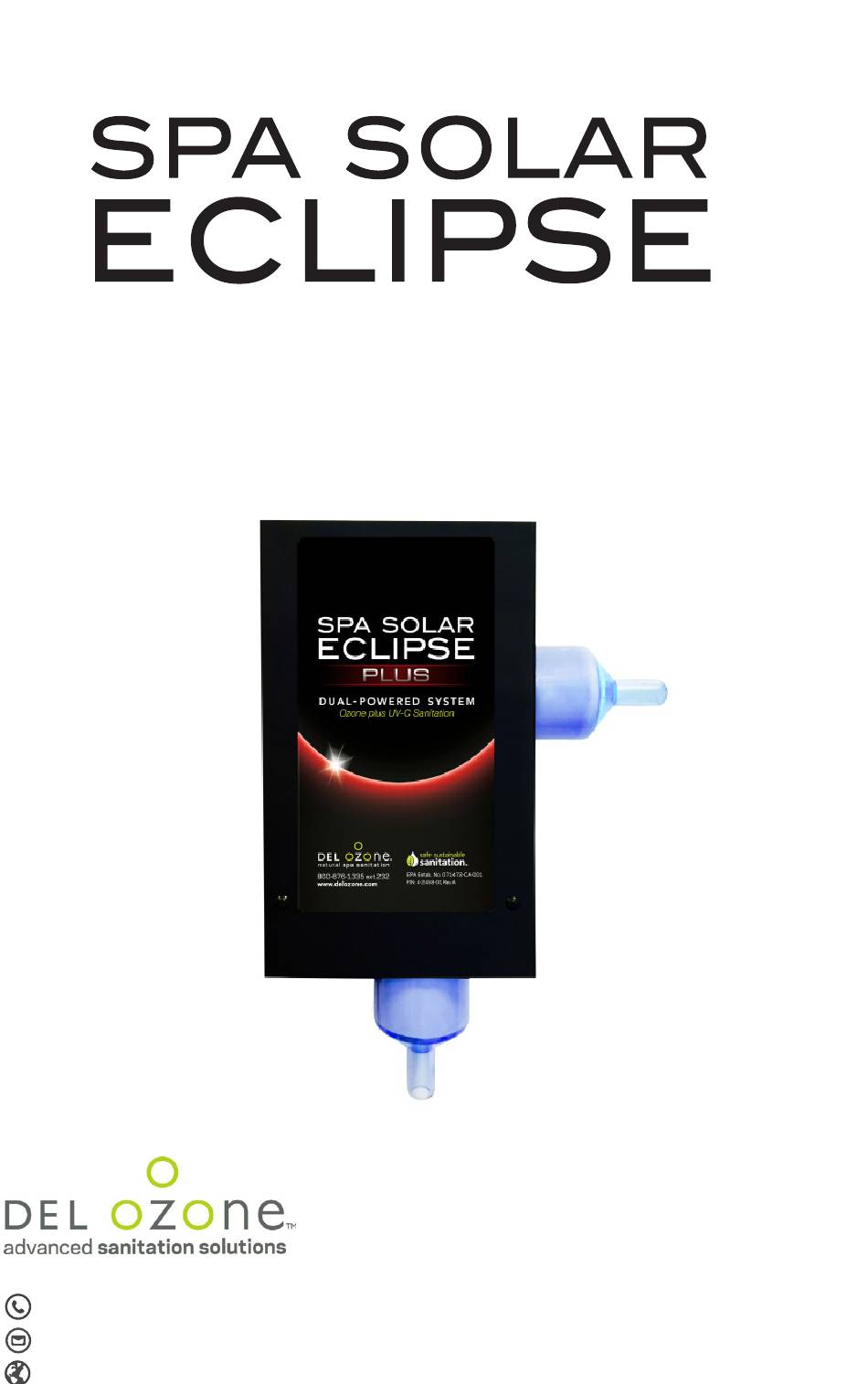

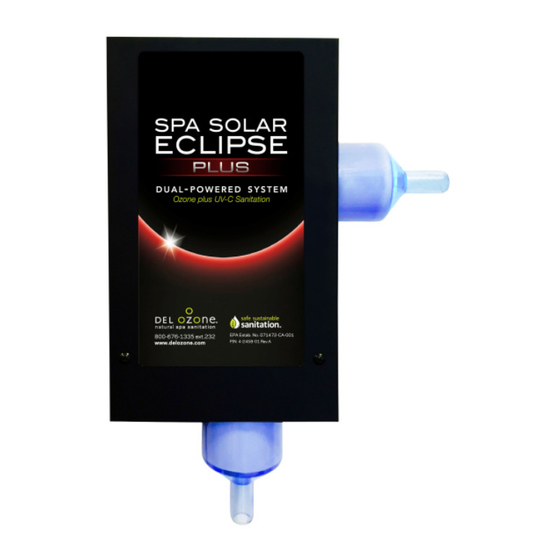

- Page 1 Ozone + UV Sanitation Installation Manual EPA Estab. No. 071472-CA-001 (800) 676-1335 o3info@delozone.com 4-2298-01 Rev.B www.delozone.com...
- Page 2 • Be sure the electrical power is shut OFF at the main circuit breaker before installing the Spa Solar Eclipse. • If the Spa Solar Eclipse electrical connection is to be attached to the spa controls, be sure the spa controls are protected by a Ground Fault Circuit Interrupter (G.F.C.I.).
-
Page 3: Table Of Contents
TABLE OF CONTENTS Installation Instructions 1. Overview ....................1 2. Mounting ....................1 3. Plumbing ....................1 4. Electrical ....................2 5. Operation ..................... 2 6. Maintenance ..................3 Warranty ....................7... -
Page 4: Installation Instructions
Use the two mounting holes located internally on the back panel of the Spa Solar Eclipse (Figure 1). b. Mount the Spa Solar Eclipse to the spa frame with #8 hardware. The preferred mounting orientation is shown in Figure 2. Connect water inlet at the bottom. -
Page 5: Electrical
5. Operation If installed correctly, the Spa Solar Eclipse will turn on and off as required by the Spa Controller. After installation, turn the spa on and verify that the POWER ON (green) and UV LAMP ON (blue) indicator... -
Page 6: Maintenance
Make sure the unit is disconnected from power and the lamp has cooled before starting maintenance. Open the Spa Solar Eclipse by removing the two front screws and loosening the two Enclosure Screws on the Upper Enclosure Assembly. Pull the Cover from the Enclosure Base. - Page 7 Isolation Valves, close them before servicing. If you do not have Isolation Valves, the pool must be drained below where the Spa Solar Eclipse is mounted. Remove the Enclosure Cover and UV Lamp as described in Section 4C and set aside.
- Page 8 UV Chamber Cap. NOTE: Any water remaining in the system above the level of the Spa Solar Eclipse will flow out of the UV Housing once the Lamp Retainer is removed. iv. Grasp the inside of the Quartz Tube and pull it out of the housing.
- Page 9 SES Installation & Operations Manual following number: 1-800-676-1335. vi. SHUT DOWN the pool once you have confirmed that there are no leaks. vii. Install the UV Lamp as described in Section 4. viii. Reinstall the Upper Enclosure Assembly to the Enclosure Base. ix.
-
Page 10: Warranty
After this information is provided, DEL Ozone may release a RETURN GOODS AUTHORIZATION (RGA) NUMBER. After receiving the RGA number the part in question must be returned to DEL Ozone, freight prepaid, with the RGA number clearly marked on the outside of the package. All preauthorized defective parts must be returned to DEL Ozone within thirty (30) days. - Page 12 EPA Estab. No. 071472-CA-001 (800) 676-1335 o3info@delozone.com www.delozone.com...
